Conical TCT Scoring Saw Blades for Laminated Panels

Precision Pre-Scoring Solutions for Melamine & Decorative Panel Cutting

ALSKAR Conical TCT Scoring Saw Blades are developed for professional woodworking applications where clean panel edges and reduced surface chipping are essential.

Designed for use with compatible scoring units on sliding table saws and panel-sizing equipment, this Premium series supports pre-scoring of melamine-faced particleboard, laminated MDF, veneered plywood, and other suitable decorative wood panels.

The conical cutting design allows the effective scoring width to be adjusted through the scoring blade’s working height, provided that the machine has an appropriate vertically adjustable scoring unit.

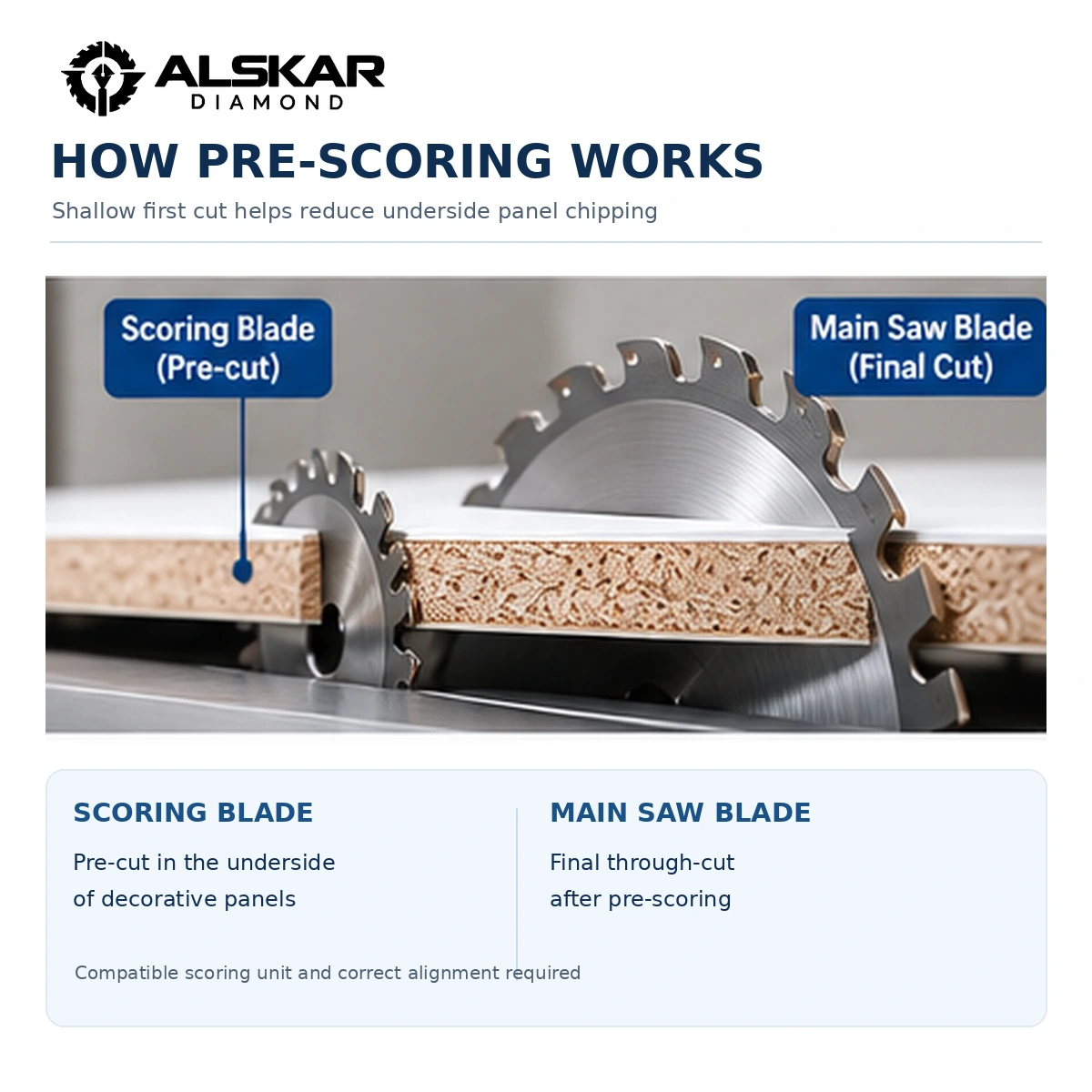

Working ahead of the main saw blade, a correctly selected and adjusted scoring blade helps prepare the lower decorative layer before the main cutting operation.

Key Features & Benefits

1. Conical Scoring Blade Design

The conical cutting profile is designed for professional panel saws equipped with an appropriate height-adjustable scoring unit.

The effective scoring width changes with the working depth of the scoring blade, helping users match the scoring operation to the main blade’s actual kerf.

Correct setup and machine compatibility are essential.

2. Reduced Underside Chipping

Decorative panel coatings can chip when the main saw blade exits the underside of the workpiece.

A properly adjusted scoring blade makes a shallow preliminary cut in the lower surface, helping reduce visible edge damage during the main cutting operation.

Results depend on blade geometry, coating type, alignment, and machine condition.

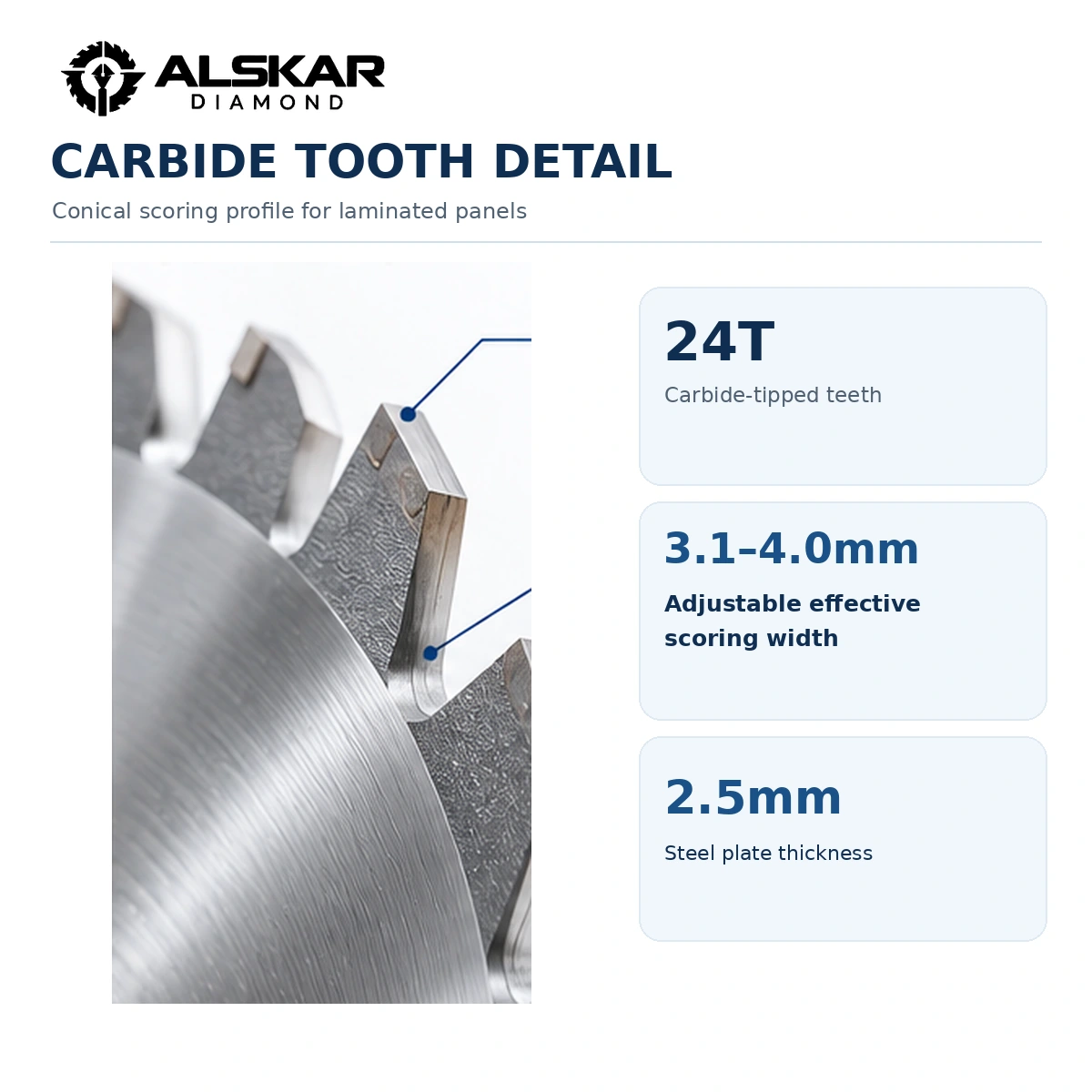

3. Tungsten Carbide Tipped Teeth

Tungsten carbide cutting tips provide wear-resistant cutting edges for suitable wood-based decorative panels.

Actual performance depends on carbide grade, tooth design, material abrasiveness, cutting speed, and maintenance.

4. Designed for Laminated Panel Processing

This scoring blade series is intended for compatible melamine-faced particleboard, laminated MDF, veneered plywood, and other decorative panel materials.

Typical applications include cabinet production, furniture manufacturing, shelving, and interior panel processing.

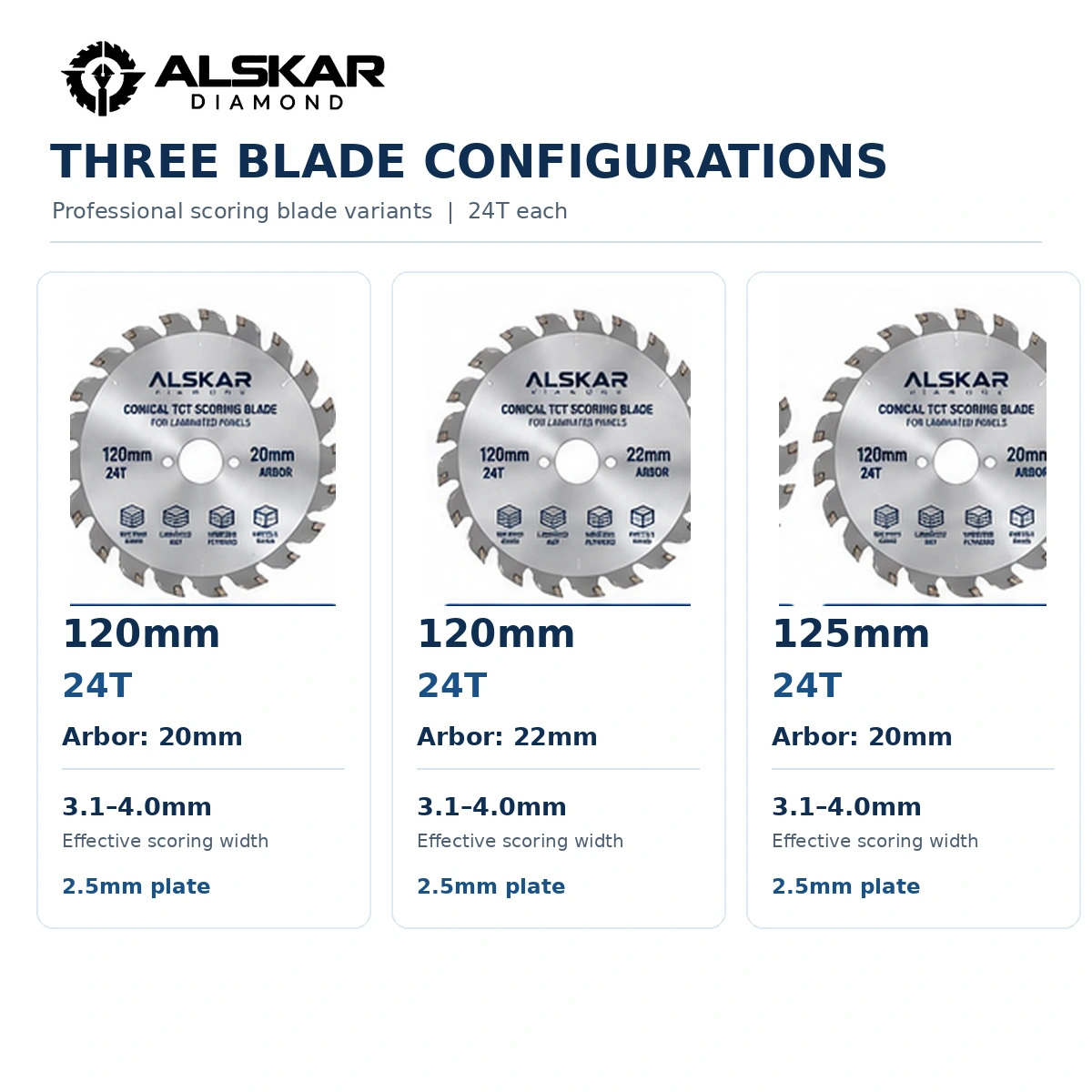

5. Three Selected Configurations

The proposed ALSKAR range includes:

• 120mm × 24T × 20mm Arbor
• 120mm × 24T × 22mm Arbor
• 125mm × 24T × 20mm Arbor

Each configuration must be selected according to the scoring-unit specifications and the main blade’s cutting requirements.

6. Companion Tool for Main Panel Saw Blades

Scoring saw blades work as part of a panel-cutting system alongside a compatible main saw blade.

They are not designed to replace the main cutting blade or operate independently on an ordinary saw without an appropriate scoring unit.

Recommended Materials

• Melamine-Faced Particleboard
• Melamine-Faced MDF
• Laminated Wood Panels
• Veneered Plywood
• Decorative Furniture Boards
• Compatible Coated Wood Panels
• Selected Engineered Wood Panels

Material compatibility should be verified for the final supplied model.

These blades are not intended for cutting steel, aluminum, concrete, masonry, or abrasive construction materials.

Recommended Applications

Melamine Panel Pre-Scoring

Preparing the underside of melamine-faced boards before the main panel-cutting operation.

Laminated MDF & Particleboard

Pre-scoring compatible decorative coatings to help reduce chipping during panel sizing.

Cabinet Manufacturing

Professional cutting of kitchen cabinet parts, wardrobe panels, shelving, and furniture components.

Furniture Panel Production

Scoring decorative panel surfaces prior to cutting on compatible panel saw equipment.

Professional Panel Sizing

Supporting controlled panel-cutting processes where both edge appearance and repeatability are important.

Compatible Machines

Depending on the selected configuration, suitable equipment may include:

• Sliding Table Saws with Compatible Scoring Units
• Professional Panel Sizing Saws
• Selected Industrial Woodworking Machines with Vertically Adjustable Scoring Units

Machine compatibility must be checked individually.

The scoring blade must match the permitted diameter, arbor, rotation direction, scoring-unit adjustment range, mounting hardware, and rated operating speed.

A matching diameter and bore alone do not guarantee compatibility.

Technical Specifications

Conical vs. Adjustable Split Scoring Saw Blades

Conical Scoring Blades

Use a conical cutting profile. The effective scoring width is adjusted through the working height when the machine supports this adjustment method.

Adjustable Split Scoring Blades

Use a two-piece blade assembly. The scoring width is adjusted through the spacing between the blade halves, typically using a suitable shim or adjustment system.

These two designs have different setup requirements and should not be considered interchangeable without machine compatibility verification.

How to Select the Correct Scoring Blade

Step 1 — Identify the Machine and Scoring Unit

Confirm the machine brand, model, and the actual scoring-unit design.

Step 2 — Verify the Scoring Blade Diameter

Choose the specified blade diameter approved for the scoring unit.

Step 3 — Confirm the Arbor and Mounting System

Check the spindle diameter, blade bore, mounting flanges, and any required locating holes or pins.

Step 4 — Verify the Main Blade Kerf

Measure or confirm the main saw blade’s actual cutting width.

The scoring operation must be adjusted appropriately in relation to that width.

Step 5 — Confirm Scoring Adjustment Capability

Conical scoring blades require a compatible system with suitable vertical adjustment.

Do not assume that the presence of a scoring unit means every scoring blade design will work.

Step 6 — Check Blade Rotation and Speed

Verify the specified scoring blade rotation direction, rated speed, and machine operating requirements.

Operating & Safety Recommendations

• Use only on machines designed to accept the selected scoring blade.
• Verify the scoring-unit diameter and arbor requirements before installation.
• Confirm blade mounting and any required locating holes.
• Use the correct rotation direction for the scoring unit.
• Do not exceed the maximum RPM marked on the supplied blade.
• Match the scoring width to the main blade’s actual kerf.
• Follow the machine manufacturer’s scoring-depth adjustment procedures.
• Confirm correct alignment between the scoring blade and main blade.
• Inspect the blade and carbide tips before operation.
• Do not use damaged or distorted blades.
• Use appropriate machine guards, dust extraction, and personal protective equipment.
• Follow the machine manufacturer’s instructions for safe operation and maintenance.

Why Choose ALSKAR DIAMOND?

ALSKAR DIAMOND supplies professional cutting tools for woodworking, construction, stone fabrication, and industrial applications.

Our proposed Conical TCT Scoring Saw Blade Series focuses on commonly used professional panel-saw configurations and application-specific scoring requirements.

For technical recommendations, OEM inquiries, wholesale quotations, or distributor supply, contact ALSKAR DIAMOND with your machine model, scoring blade diameter, arbor, main blade kerf, panel material, and required quantity.
