Core Bit Adapters & Accessories
Find professional drilling connections, threaded adapters, extension rods and masonry pilot drill bits. Explore six ALSKAR accessory families and select the right components for your machine, core bit and application.
Shop by Connection Requirement
Identify your machine interface or accessory requirement before choosing the matching product.
Convert a Thread
UNC, BSP and selected metric thread combinations.
Thread Adapters → 02SDS Machine Shank
Select SDS Plus or SDS Max based on your tool holder.
See SDS Adapters → 03Hex Shank Connection
For compatible drill chucks and core bit threads.
Hex Shank Adapters → 04Reach & Hole Starting
Extension rods and compatible A-Taper pilot drill bits.
Explore Accessories →Explore Our Six Accessory Families
Real ALSKAR product images and direct links to the six products already listed in our catalog.
Diamond Core Bit Thread Conversion Adapters
Connect compatible diamond core bits and drilling machines with different threaded interfaces. Select the exact male / female configuration.
1-1/4″-7 UNC · 5/8″-11 · Selected BSP & Metric
View Product →
SDS Plus Diamond Core Bit Adapters
Connect a compatible SDS Plus machine to selected threaded diamond core bits. Check the machine capacity and use rotation-only coring.
1/2″ BSP Female · 1-1/4″-7 UNC Male · M16 Male
View Product →
SDS Max Diamond Core Bit Adapters
SDS Max shank connection options for compatible professional core drilling equipment and appropriately matched threaded core bits.
1-1/4″-7 UNC Male · 1/2″ BSP Female
View Product →
Hex Shank Diamond Core Bit Adapters
Hex drive connection for compatible drill chucks and threaded dry diamond core drilling setups. Confirm actual chuck and shank dimensions.
Current model: Hex Shank to 1/2″ BSP Male
View Product →

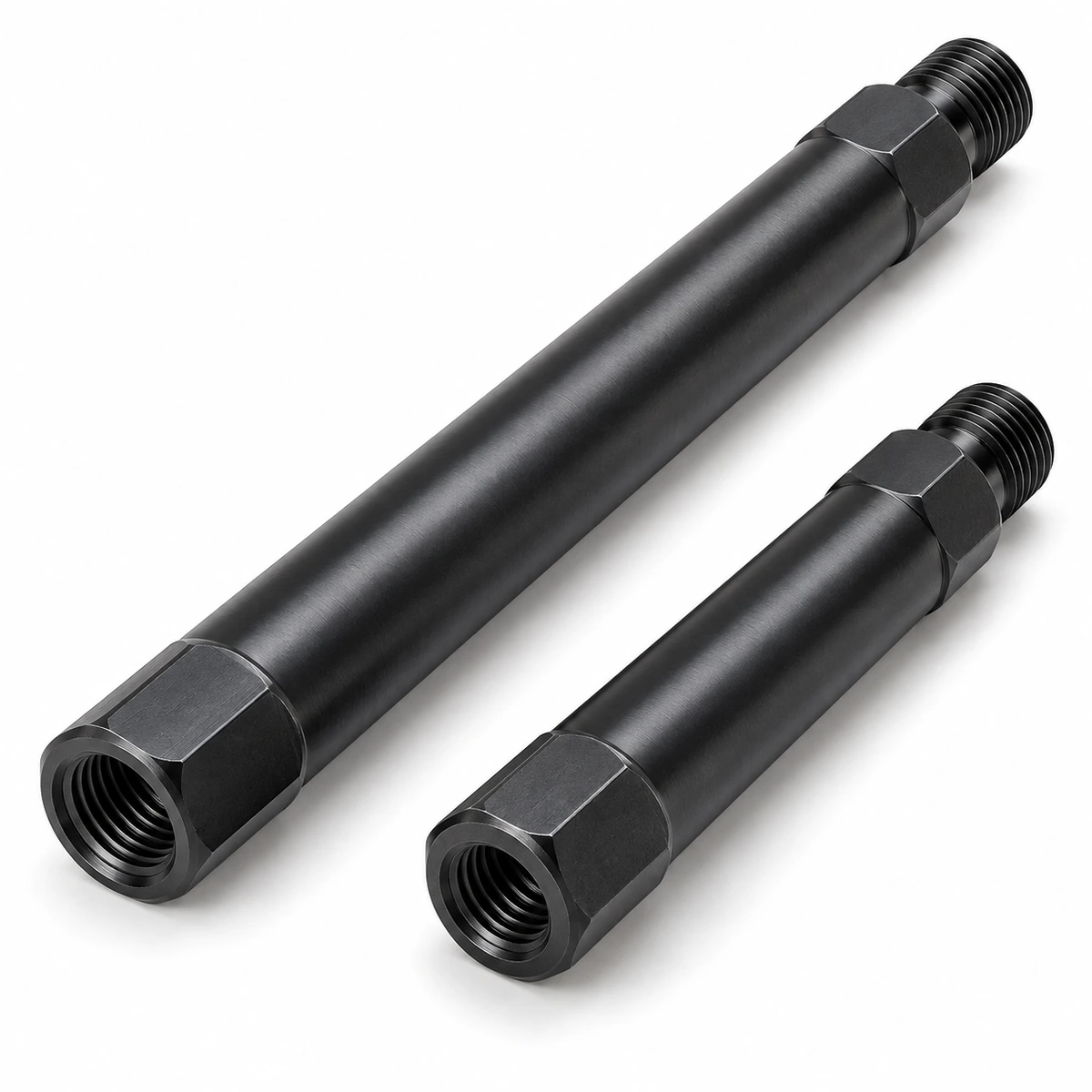

Diamond Core Bit Extension Rods
Increase working reach in compatible drilling systems using matching female-to-male threaded extension rods.
5/8″-11 · 1-1/4″-7 UNC · Multiple lengths
View Product →
A-Taper Masonry Pilot Drill Bits
Tungsten carbide tipped, spiral-fluted 10mm masonry pilot drill bits for accurate starting with compatible A-Taper pilot holders.
10mm Ø · 175 / 200 / 300 / 450mm overall length
View Product →How to Choose the Right Adapter
Matching the thread alone is not enough. Check the complete drilling assembly before ordering.
Machine Interface
Identify SDS Plus, SDS Max, hex chuck or a threaded spindle. Confirm the machine model and operating limits.
Core Bit Connection
Record the exact thread size, pitch and whether the bit connection is male or female.
Working Length
Confirm adapter or extension length, access clearance and the stability of the full assembly.
Operating Method
Verify rotation-only requirements, approved wet/dry operation and any internal water passage.
Adapter & Accessory Compatibility Guide
Use this as a selection starting point, then verify the exact model and specifications on each product page.
| Accessory Family | Machine / Input Side | Core Bit / Output Side | Important Check |
|---|---|---|---|
| Thread Conversion Adapters | Selected 1-1/4″-7 UNC, 5/8″-11, BSP and metric interfaces | Matching male / female thread conversion | Exact diameter, pitch, thread form, gender and water passage |
| SDS Plus Adapters | SDS Plus shank | 1/2″ BSP Female; 1-1/4″-7 UNC Male; M16 Male | SDS Plus holder, core bit size and machine capacity; confirm BSP/M16 details |
| SDS Max Adapters | SDS Max shank | 1-1/4″-7 UNC Male; 1/2″ BSP Female | SDS Max holder; rotation-only coring; water compatibility |
| Hex Shank Adapters | Compatible hex drive chuck | Current model: 1/2″ BSP Male | Hex shank dimension, BSP thread type and drill chuck capacity |
| Core Bit Extension Rods | 5/8″-11 or 1-1/4″-7 UNC female | Matching male threaded end | Same-thread extension, working length, alignment and water passage |
| A-Taper Pilot Drill Bits | Matching A-Taper pilot drill holder | 10mm carbide-tipped masonry pilot drill | Exact taper geometry and holder fit; not a universal threaded adapter |
Important Compatibility Details
Common differences that can prevent a proper or safe connection.
UNC vs. BSP vs. Metric
Thread diameter, pitch and profile must all match. BSP parallel and tapered threads are not interchangeable without confirming the specific connection. Do not force mismatched threads together.
Male and Female Ends
Specify which end connects to the machine and which end connects to the core bit. A matching nominal thread designation without correct gender and seating may not produce a usable assembly.
Water Passage & Wet Drilling
Do not assume an adapter is hollow or approved for water delivery. Verify the exact product, seals, machine protection and wet drilling approval for the entire setup.
A-Taper Pilot Holders
An A-Taper pilot drill requires a matching holder. SDS Plus, SDS Max and Hex Shank adapters are not automatically compatible with A-Taper pilot drill systems.
Core Bit Adapter & Accessory FAQ
Practical guidance for selecting connections and ordering drilling accessories.
How do I find the right adapter for my diamond core bit?
Identify your drilling machine’s shank or spindle connection and the core bit’s threaded connection. Verify diameter, pitch, male/female orientation, machine capacity and drilling method before selecting an adapter.
Are SDS Plus and SDS Max shanks interchangeable?
No. SDS Plus and SDS Max are different tool-holder systems. Choose an adapter specifically designed for the machine’s chuck or holder.
Can I connect 1-1/4″-7 UNC directly to 5/8″-11?
No. These are different connection sizes. A correctly specified and approved thread conversion adapter is required when connecting compatible equipment that uses these interfaces.
What is the difference between BSP and UNC threads?
They follow different thread standards. Check the exact BSP type (parallel or tapered), nominal size, thread pitch and gender. Do not assume BSP and UNC threads will fit together.
Can an SDS or Hex Shank adapter be used in hammer mode for diamond coring?
For standard diamond core bits intended for non-percussion operation, hammer mode must be off. Follow the operating instructions of the core bit, adapter and drilling machine. A compatible shank alone does not establish safe machine capacity.
Can these adapters and extensions be used with water?
Only when the particular model and the entire drilling setup are approved for wet operation. Internal water passage, seals and suitable machine protection must be verified before use.
Which extension rod should I choose?
Match the thread on both sides and choose an extension length based on required working reach, clearance, alignment and machine capability. Longer extensions do not increase machine drilling capacity.
Will the A-Taper pilot drill fit my existing adapter?
Not necessarily. The pilot drill requires a matching A-Taper pilot holder. Confirm the taper dimensions, holder geometry and intended drilling system before ordering.
Can I request accessory specifications or wholesale pricing?
Yes. Send ALSKAR DIAMOND your machine model, connection dimensions, target core bit, required length, estimated quantity and destination market for a compatibility review and quotation.
Need Help Matching Your Core Bit Connection?
Tell us your machine brand and model, shank or spindle type, core bit thread, wet/dry drilling method and required quantity. Our team can review the appropriate adapter or extension options.
