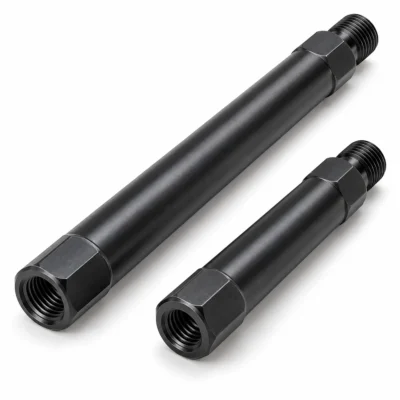

Diamond Core Bit Thread Conversion Adapters – UNC, BSP & Metric Connections
ALSKAR Diamond Core Bit Thread Conversion Adapters provide practical connection solutions between compatible diamond core bits and drilling machines.
Available in multiple UNC, BSP, and selected metric thread configurations, these adapters help professionals connect different spindle and core bit interfaces for concrete, masonry, and stone drilling applications.
Key Features
- Multiple male and female thread configurations
- 1-1/4″-7 UNC and 5/8″-11 connection options
- Selected 1/2″ BSP and metric connection configurations
- Compact steel adapter construction
- Designed for compatible professional diamond core drilling equipment
- Suitable for replacement, connection conversion, and professional drilling setups
Important: Verify thread size, pitch, male/female orientation, and equipment compatibility before ordering.
1. Diamond Core Bit Thread Conversion Adapters
Professional Connection Solutions for Diamond Core Drilling
ALSKAR Diamond Core Bit Thread Conversion Adapters are designed to connect compatible drilling machines and diamond core bits with different threaded interfaces.
These compact steel adapters provide practical connection conversion options for professional concrete, masonry, and stone drilling applications.
With configurations including 1-1/4″-7 UNC, 5/8″-11, selected BSP threads, and metric connections, ALSKAR offers flexible solutions for diamond core drilling setups.
2. Key Features & Benefits
Multiple Thread Configurations
Available male and female thread combinations provide connection options between compatible drilling machines and diamond core bits.
Practical Connection Conversion
Adapters help users connect equipment with different threaded interfaces without requiring a replacement core bit solely because of the connection type.
Compact Steel Construction
Designed with metal bodies suitable for compatible professional drilling setups.
Professional Drilling Applications
Suitable for use with compatible diamond core drilling equipment in concrete, masonry, and stone fabrication applications.
Multiple Adapter Options
Select from available UNC, BSP, and metric thread configurations according to the machine spindle and core bit connection.
3. Typical Applications
- Connecting compatible diamond core bits to drilling machines
- Converting between 1-1/4″-7 and 5/8″-11 threaded connections
- Selected UNC-to-BSP thread conversions
- Replacement adapters for professional core drilling equipment
- Concrete and masonry drilling setups
- Compatible stone core drilling applications

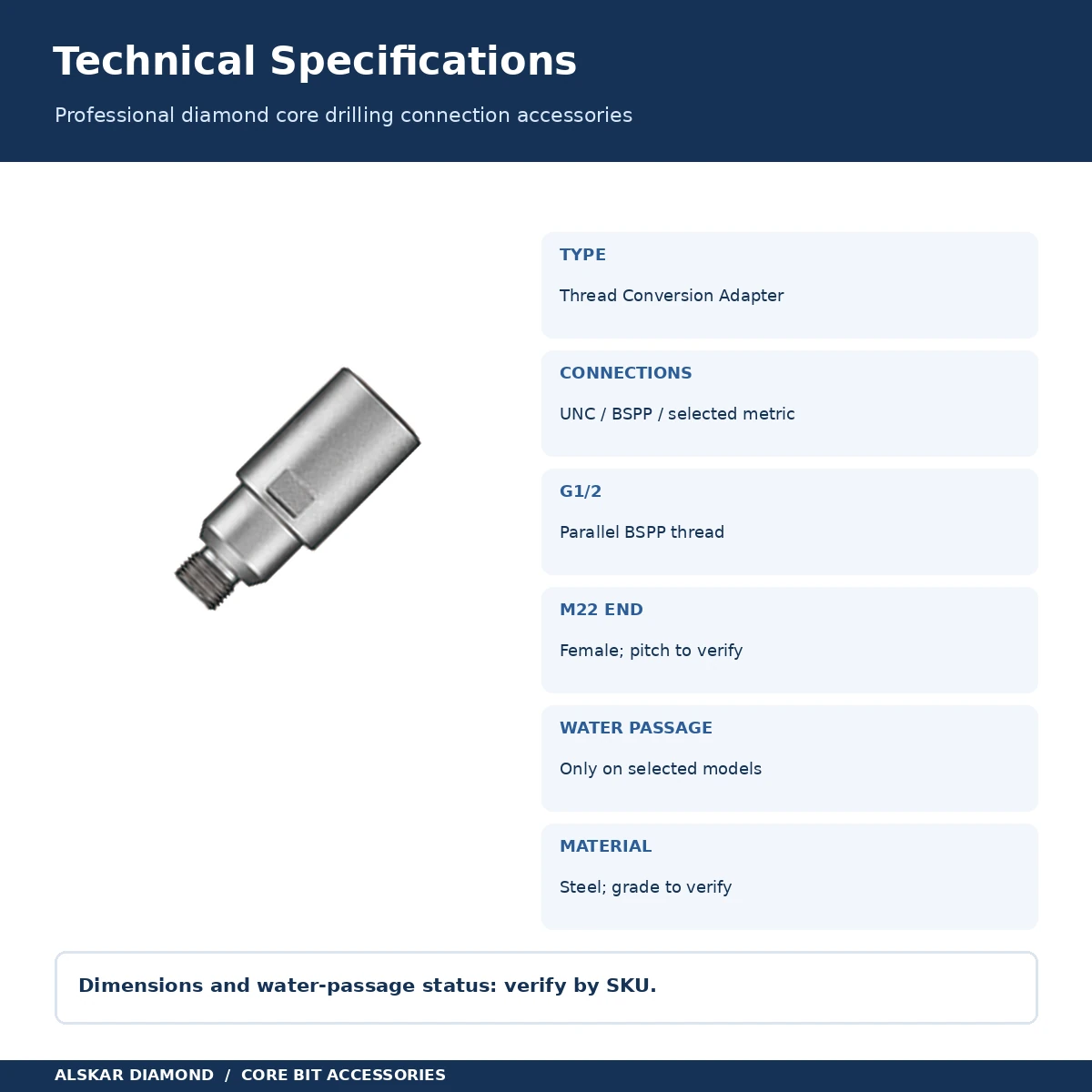

4. Technical Specifications
| Specification | Details |
|---|---|
| Brand | ALSKAR DIAMOND |
| Product Type | Thread Conversion Adapter |
| Material | Steel |
| Thread Options | UNC, BSP, Selected Metric |
| Connection Style | Male / Female Configurations |
| Main Applications | Diamond Core Drilling |
| Compatible Materials | Depends on the attached core bit |
| Available Configurations | See Variation Selection |
5. Choosing the Correct Adapter
Before ordering, identify the machine spindle connection and the core bit connection separately.
For each connection, verify:
- Thread diameter and pitch
- Male or female thread orientation
- Thread standard, including BSP type where applicable
- Adapter overall length and seating arrangement
- Machine operating mode, speed, and torque requirements
Thread compatibility alone does not guarantee that an adapter is appropriate for every machine or drilling application.
6. Frequently Asked Questions
What are diamond core bit thread conversion adapters used for?
They are used to connect compatible drilling machines
and diamond core bits with different threaded connections.
Always check thread specifications before use.
How do I choose the correct adapter?
Identify the machine spindle thread and the core bit
connection. Verify the thread diameter, pitch, thread
standard, and male or female orientation on both ends.
Are 1-1/4″-7 and 5/8″-11 threads interchangeable?
No. These are different thread sizes and cannot be
connected directly. A compatible adapter may be used
when approved for the drilling equipment.
Can I use BSP adapters with UNC threaded connections?
BSP and UNC use different thread standards.
A properly specified conversion adapter is required.
Verify whether the BSP connection is parallel or tapered.
Are these adapters suitable for wet drilling?
Wet drilling suitability depends on the adapter design,
including its internal water passage and sealing
arrangement. Confirm compatibility before use.
Can these adapters be used with any diamond core bit?
No. The adapter must match the machine and core bit
connections and be suitable for the machine’s operating
conditions, torque, and drilling application.
Do you offer wholesale quantities?
Contact ALSKAR DIAMOND with the required adapter
configuration, quantity, and destination market
for availability and wholesale quotation.
ALSKAR DIAMOND — Professional Drilling Accessories
ALSKAR DIAMOND supplies diamond tooling and accessories for professional cutting, drilling, and stone fabrication applications.
Contact our team if you need help confirming the correct adapter configuration or selecting compatible accessories for your equipment.

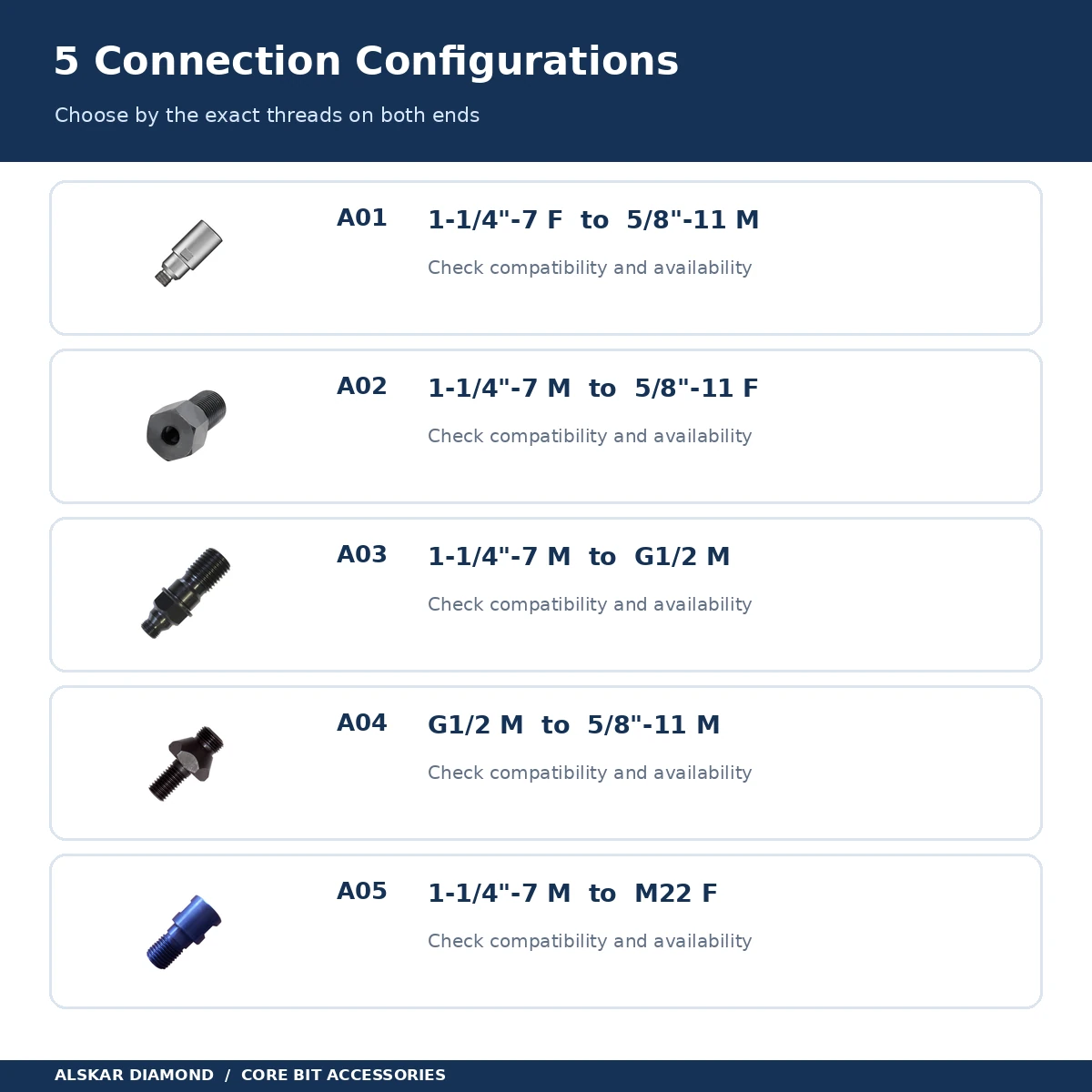

| Attribute | 1-1/4″-7 Female to 5/8″-11 Male, 1-1/4″-7 Male to 5/8″-11 Female, 1-1/4″-7 Male to 1/2″ BSP Male, 1/2″ BSP Male to 5/8″-11 Male, 1-1/4″-7 Male → M22 Female |
|---|---|
| Product Type | Thread Conversion Adapter |
| Material | Steel |
| Thread Standards | UNC / BSP / Metric |
| Application | Diamond Core Drilling |
| Brand | ALSKAR DIAMOND |
