Non-Ferrous Metal & Aluminum TCT Saw Blades – 60T to 100T

Aluminum & Non-Ferrous Metal TCT Saw Blades

Professional Carbide-Tipped Cutting Solutions for Aluminum Profiles, Extrusions & Non-Ferrous Metals

ALSKAR Aluminum & Non-Ferrous Metal TCT Saw Blades are developed for professional cutting applications where accuracy, controlled cutting performance, and consistent edge quality are important.

Designed for aluminum extrusions, profiles, tubing, and compatible non-ferrous metal materials, this series features tungsten carbide tipped cutting teeth and carefully selected tooth-count configurations.

The range includes 7-1/4″ blades in 60T and 80T options, a 10″ 100T blade, and a 12″ 100T blade, providing practical choices for different cutting machines, workpiece dimensions, and finish requirements.

These blades are intended for use with compatible cutting equipment approved for aluminum and the selected non-ferrous materials.

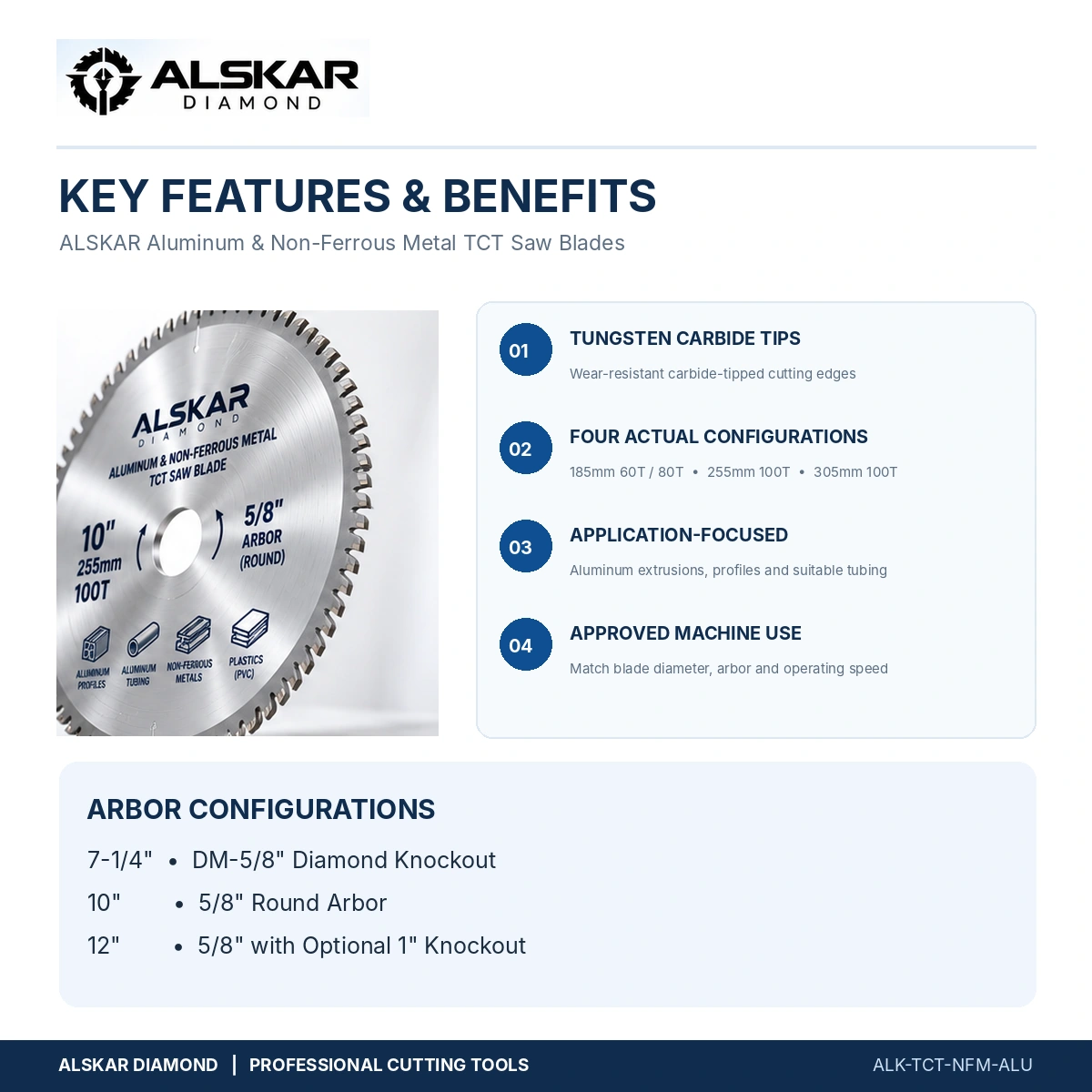

Key Features & Benefits

1. Designed for Aluminum & Non-Ferrous Metal Cutting

This series is developed for cutting compatible aluminum and selected non-ferrous metals rather than general woodworking applications.

An application-specific blade design supports controlled cutting of aluminum profiles, extrusions, tubing, and other suitable stock.

Actual material compatibility depends on the blade construction, material alloy, wall thickness, and cutting equipment.

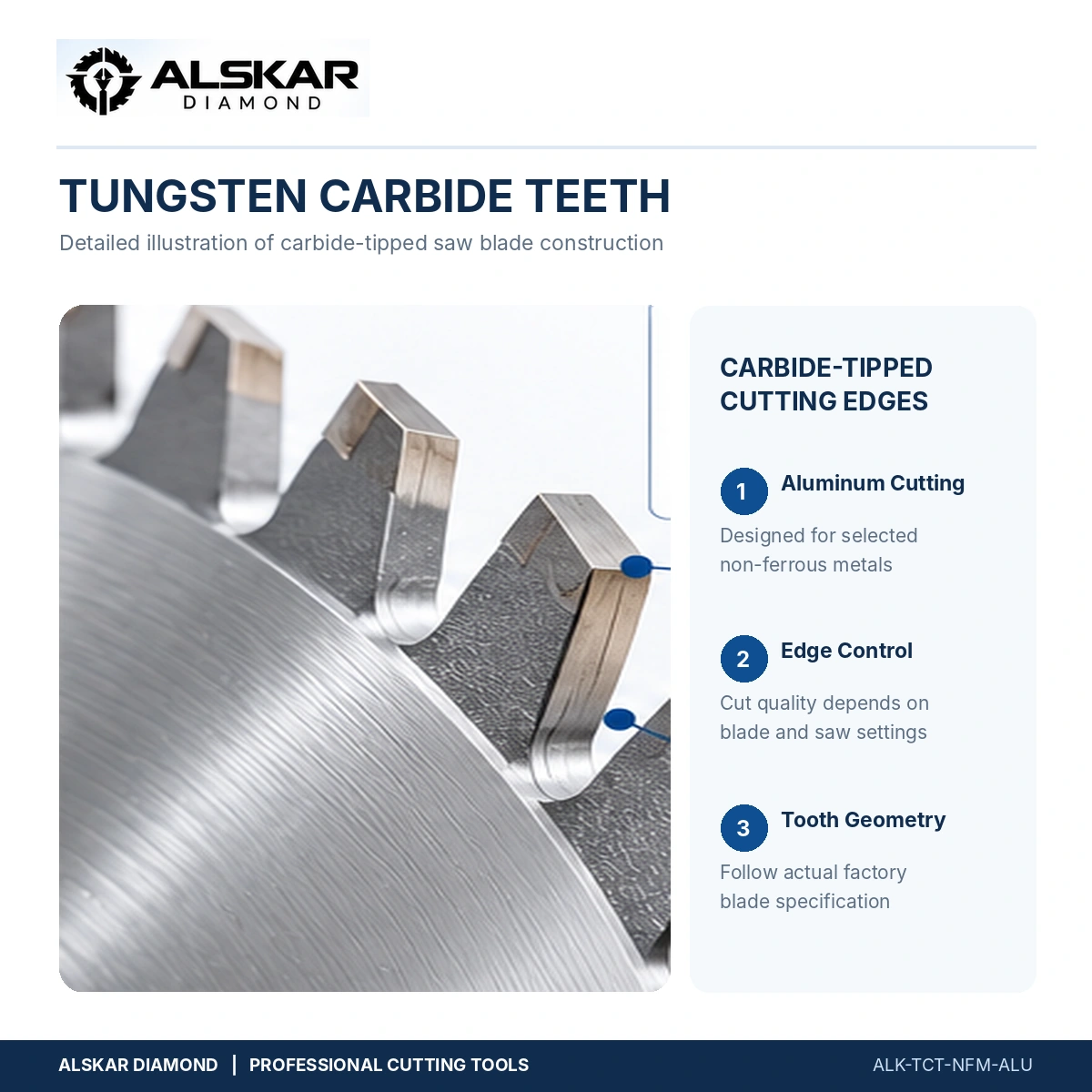

2. Tungsten Carbide Tipped Cutting Teeth

The blades feature tungsten carbide tipped cutting edges for wear-resistant performance in approved applications.

Carbide-tipped construction supports repeated cutting of compatible non-ferrous materials when correct machine settings and cutting procedures are followed.

Actual blade service life depends on carbide grade, tooth design, cutting conditions, material abrasiveness, and maintenance.

3. Multiple Tooth Counts for Different Cutting Requirements

The ALSKAR series provides three tooth-count options:

• 60T: A practical option for general aluminum cutting applications, balancing cutting efficiency and edge quality on suitable workpieces.
• 80T: Intended for applications where a finer cutting finish is desired on compatible aluminum profiles and sections.
• 100T: High-tooth-count configurations for controlled cutting and finish-oriented aluminum fabrication applications.

The ideal tooth count depends on blade diameter, machine speed, material thickness, workpiece geometry, feed rate, and cutting conditions.

A higher tooth count does not automatically provide better results in every application.

4. Selected Professional Blade Diameters

The available configurations are:

• 7-1/4″ (185mm) × 60T
• 7-1/4″ (185mm) × 80T
• 10″ (255mm) × 100T
• 12″ (305mm) × 100T

These configurations cover a selection of common professional blade sizes while maintaining a focused product range.

5. Application-Specific Arbor Configurations

Different blade diameters feature different mounting arrangements:

7-1/4″ Models

Both 60T and 80T configurations use a DM-5/8″ arbor with a removable diamond knockout for compatible mounting systems.

10″ Model

The 10″ × 100T blade features a standard 5/8″ round arbor.

12″ Model

The 12″ × 100T blade features a standard 5/8″ arbor with an optional factory-provided knockout for compatible 1″ mounting systems.

Only remove a factory-provided knockout when required and explicitly permitted by the equipment manufacturer’s mounting requirements.

6. Professional Aluminum Fabrication Applications

The series is positioned for aluminum window and door fabrication, extrusion cutting, general aluminum processing, and professional metalworking.

The selected blade must be matched to the actual alloy, workpiece shape, machine, and cutting requirements.

Recommended Materials

Primary Applications

• Aluminum Extrusions
• Aluminum Window and Door Profiles
• Aluminum Tubing
• Aluminum Structural Profiles
• Compatible Aluminum Sections
• Selected Aluminum Flat Stock

Additional Applications — Subject to Model Approval

• Selected Brass Profiles and Tubing
• Selected Copper Profiles and Tubing
• Other Compatible Non-Ferrous Metal Materials

Material suitability must be verified according to the selected blade and machine.

Not Recommended For

• Mild Steel
• Stainless Steel
• Cast Iron
• Reinforcing Steel
• Concrete
• Masonry
• Other Materials Not Approved for the Selected Blade

Recommended Applications

Aluminum Window & Door Manufacturing

Cutting aluminum profiles used in windows, doors, curtain walls, and related architectural systems.

Aluminum Extrusion Cutting

Crosscutting suitable aluminum extrusions for fabrication, assembly, and installation.

Aluminum Tubing & Sections

Cutting compatible aluminum tubes, channels, and profiles using appropriate machine settings and secure workpiece support.

Professional Metal Fabrication

Precision cutting of suitable aluminum materials in fabrication workshops and manufacturing environments.

Construction & Installation

Cutting suitable aluminum profiles for installation and assembly using machines specifically approved for the application.

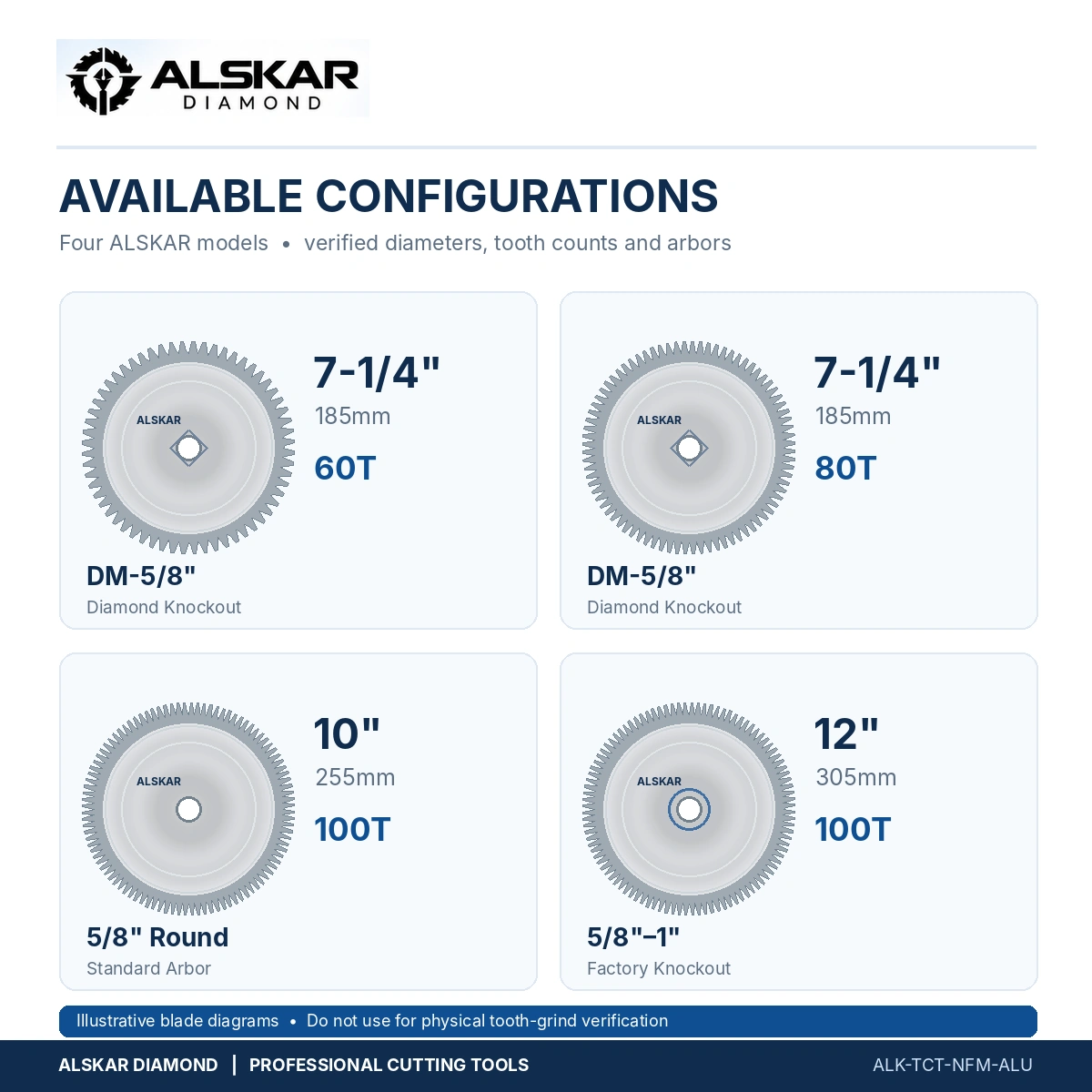

Available Configurations

Technical Specifications

Choosing the Right Tooth Count

7-1/4″ × 60T — General Aluminum Cutting

A practical choice for suitable aluminum cutting applications where a balance between cutting efficiency and edge finish is desired.

Recommended for compatible profiles and sections when used with properly rated equipment.

7-1/4″ × 80T — Fine Finish Aluminum Cutting

Provides a higher tooth-count option for compatible aluminum workpieces where edge appearance and controlled cutting are priorities.

Particularly relevant for selected thinner-wall profiles and finish-oriented applications, subject to material and equipment requirements.

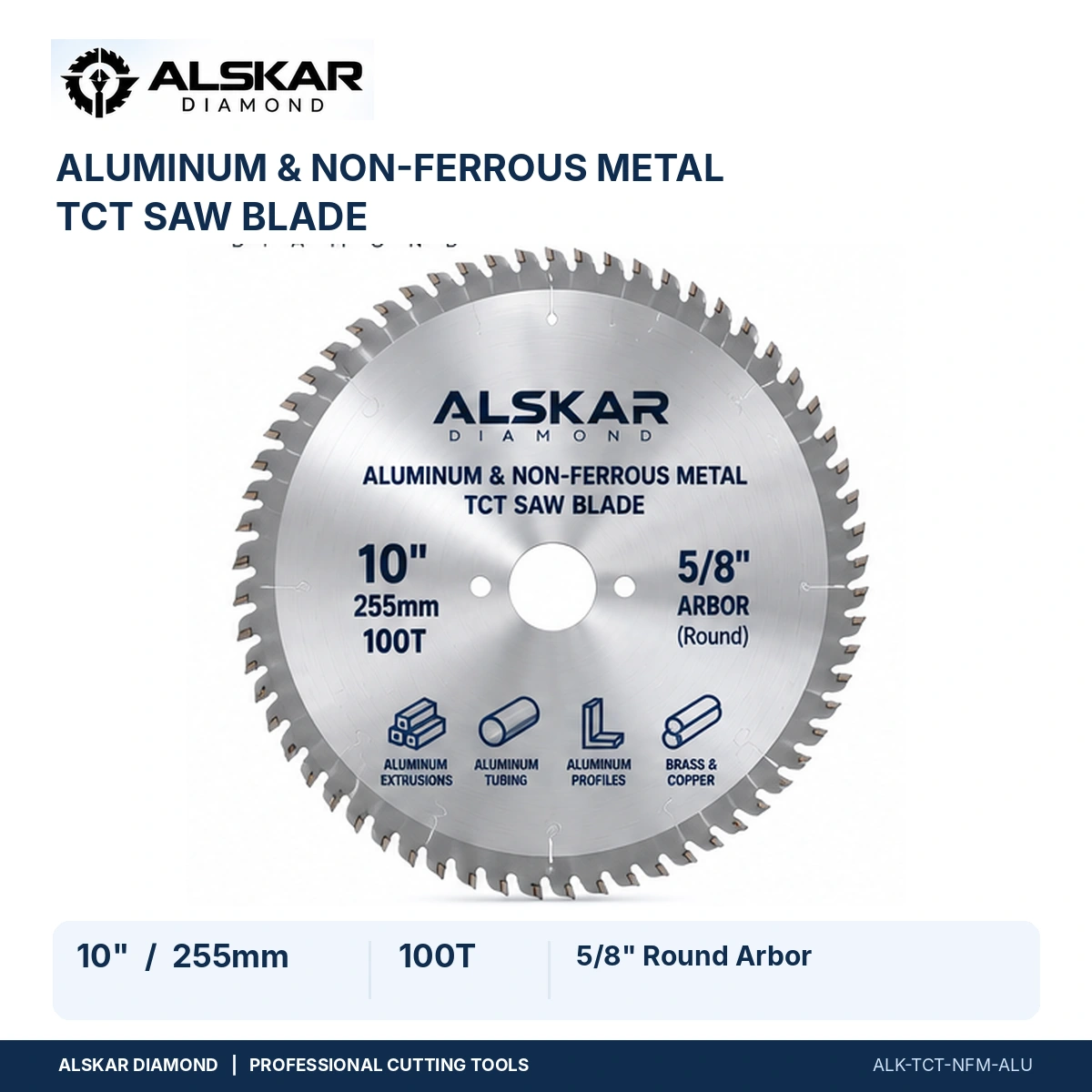

10″ × 100T — Precision Aluminum Profile Cutting

A high-tooth-count configuration intended for professional aluminum profile cutting and fabrication on compatible 10″ class equipment approved for the actual 255mm blade.

12″ × 100T — Professional Aluminum Fabrication

A larger-diameter option designed for suitable aluminum cutting equipment, with a versatile mounting configuration featuring a standard 5/8″ arbor and an optional 1″ knockout.

The 12″ model must only be used where the actual machine supports its dimensions, arbor system, and operating requirements.

TCT Aluminum Saw Blades vs. Woodworking Saw Blades

Aluminum & Non-Ferrous Metal TCT Series

Developed for suitable metal-cutting applications, with cutting-edge construction and operating requirements selected for compatible non-ferrous materials.

General Purpose TCT Wood Saw Blades

Designed primarily for woodworking and selected wood-based materials.

Fine Finish TCT Wood Saw Blades

Designed for fine crosscutting and finish-oriented woodworking tasks.

Ordinary woodworking blades should not be substituted for dedicated aluminum-cutting blades unless expressly approved by the manufacturer.

How to Select the Correct Aluminum Saw Blade

Step 1 — Identify Your Material

Confirm the material type, alloy, profile shape, wall thickness, and cutting requirements.

Step 2 — Verify Machine Compatibility

Confirm that the saw is specifically approved for the cutting material and intended carbide-tipped blade.

Step 3 — Choose the Correct Diameter

Select the actual blade diameter approved by the machine manufacturer.

The ALSKAR 10″ model is specified with a 255mm diameter; this must be verified against the machine’s permitted dimensions.

Step 4 — Confirm the Arbor

Check spindle dimensions and mounting requirements.

Use the factory-provided knockout only where permitted by the machine manufacturer.

Step 5 — Select the Tooth Count

Choose the 60T, 80T, or 100T configuration according to the actual blade diameter, material shape, section thickness, finish requirements, and machine operating conditions.

Step 6 — Verify Operating Specifications

Confirm the actual blade’s maximum RPM, kerf width, tooth geometry, and any cutting or lubrication requirements.

Step 7 — Secure the Workpiece

Use appropriate clamping and support to prevent workpiece movement during cutting.

Operating & Safety Recommendations

• Use only on saws approved for the selected blade and cutting material.
• Confirm blade diameter, arbor, and mounting requirements before installation.
• Check the blade rotation direction.
• Do not exceed the maximum RPM marked on the actual blade.
• Secure aluminum profiles and tubing using suitable clamping arrangements.
• Support long, thin, or irregular workpieces.
• Use all required machine guards and safety devices.
• Follow equipment instructions for feed rate, chip removal, and approved lubrication.
• Inspect carbide tips and blade body before cutting.
• Do not operate damaged or distorted blades.
• Wear appropriate eye, face, hearing, and other personal protection.
• Do not cut steel or stainless steel with this series.
• Never enlarge or modify a mounting hole except through the factory-provided knockout feature, where approved.

Why Choose ALSKAR DIAMOND?

ALSKAR DIAMOND supplies professional cutting tools for metal fabrication, woodworking, construction, stone processing, and industrial applications.

Our Aluminum & Non-Ferrous Metal TCT Saw Blade Series combines practical blade configurations with application-focused product selection for professional users.

With 60T, 80T, and 100T options across three blade diameters, the series provides flexible choices for compatible aluminum cutting applications.

For technical recommendations, wholesale quotations, or distributor inquiries, contact ALSKAR DIAMOND with your machine model, material type, blade diameter, arbor requirements, and estimated order quantity.
