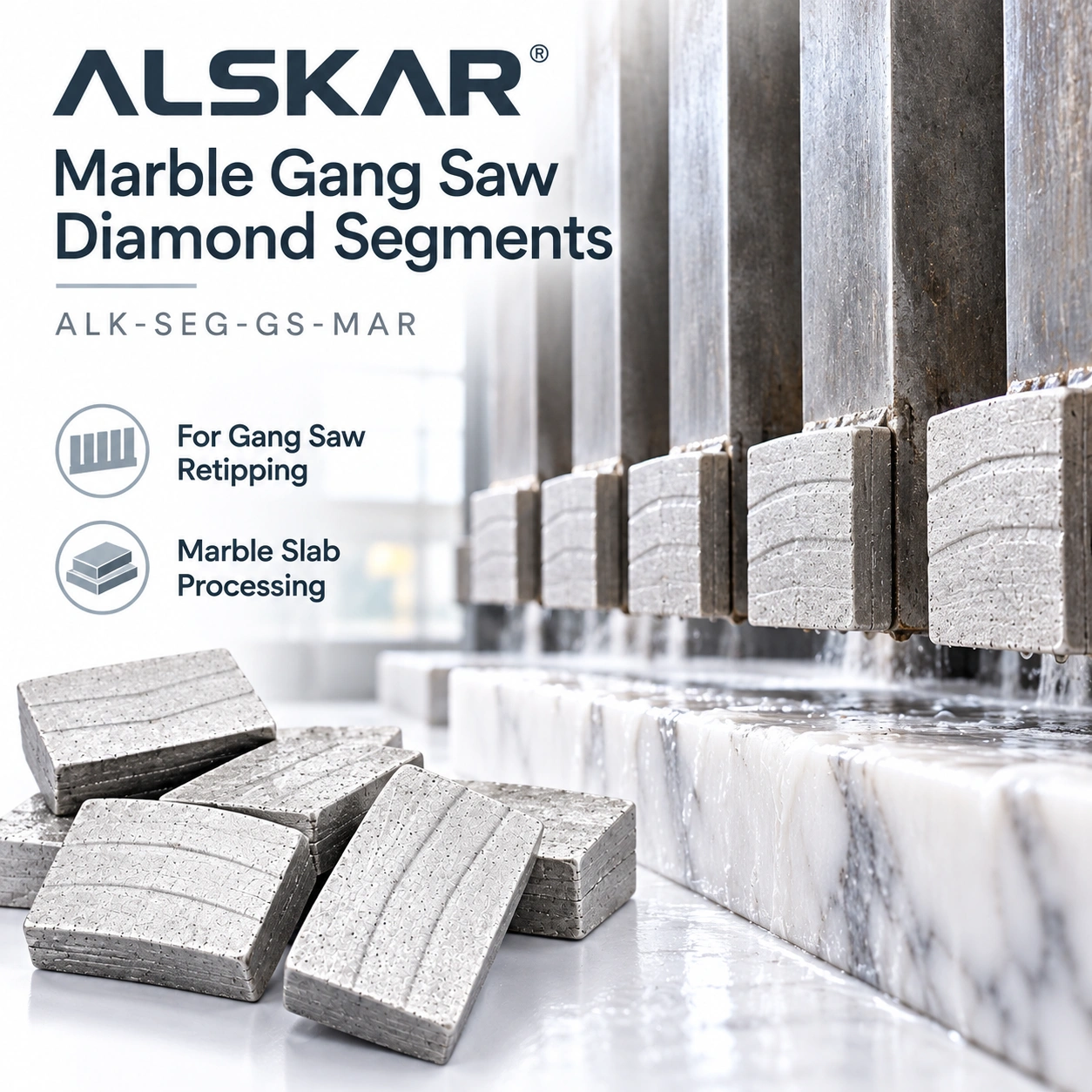

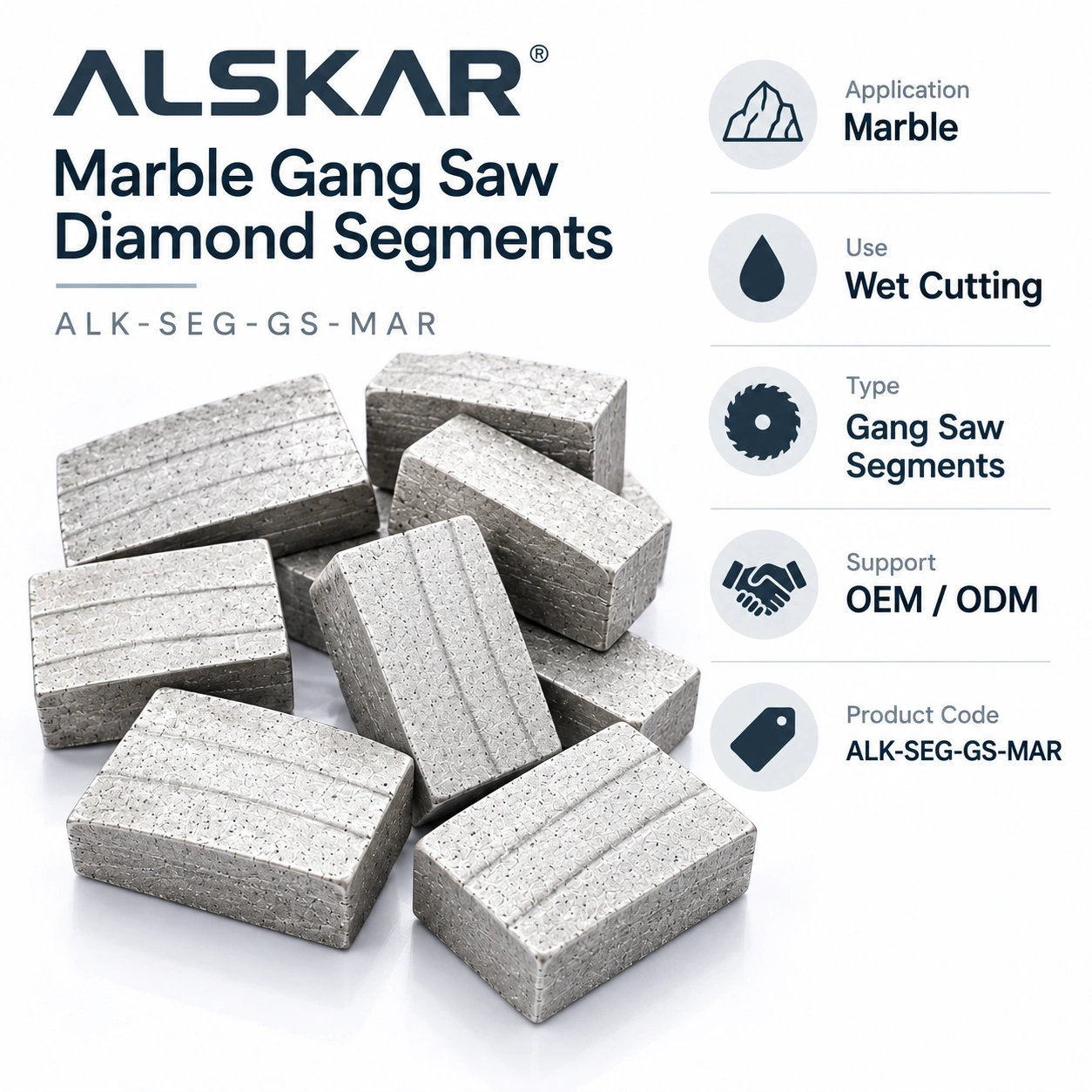

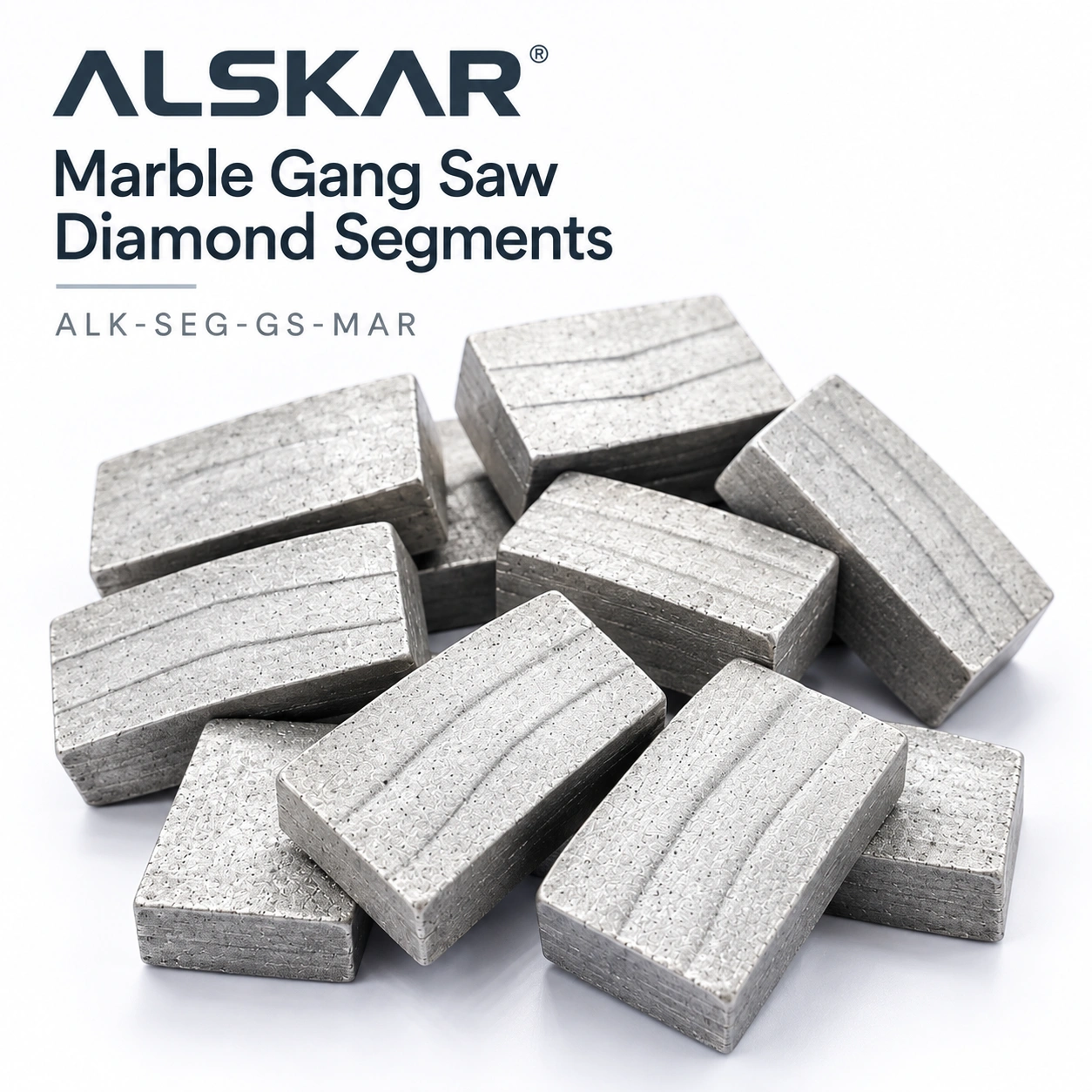

Marble Gang Saw Diamond Segments for Retipping & OEM
Marble & Limestone · Thin Kerf · Tapered Segments · Retipping & OEM · Custom Formula
Alskar Marble Gang Saw Diamond Segments are engineered for professional retipping and OEM production of gang saw blades used for marble, limestone, travertine and other soft natural stone block cutting. Designed for thin frame-saw blades, the series offers tapered segment geometries, marble-specific bond formulations and single-layer or multi-layer constructions to provide fast cutting, narrow kerf, smooth slab surfaces and consistent thickness during high-volume stone production.
Request a Quote for Diamond Segments
Looking for diamond segments for gang saw blades, bridge saw blades, or core drill bits? Share your segment type, dimensions, cutting material, required quantity, and delivery destination. Our sales team will review your requirements and prepare a quotation.
1. Professional Segments for Marble Gang Saw Production
The Alskar Marble Gang Saw Diamond Segment Series is developed for marble factories, slab producers, professional retipping workshops and OEM gang saw blade manufacturers.
Diamond gang saws are widely used for slabbing:
Marble
Limestone
Travertine
Selected Sandstone
Other Soft Natural Stone
2. Primary Materials
Primary
Marble
Limestone
Travertine
Secondary
Selected Sandstone
Other Soft / Medium-Hard Natural Stone
3. Standard Gang Saw Blade Platform
Typical Blade Thickness: 2.0–4.0mm
4. Recommended Segment Specifications
Standard Reference Platform
| Steel Blade Thickness | Recommended Segment Size | Height Options | Positioning |
|---|---|---|---|
| 2.0mm | 20 × 3.7/3.2mm | 7 / 8 / 10mm | Ultra-thin kerf |
| 2.5mm | 20 × 4.2/3.7mm | 8 / 10mm | Standard thin blade |
| 3.0mm | 20 × 4.5–5.0/4.0–4.5mm | 8 / 10mm | Main professional range |
| 3.5mm | 20 × 5.2–5.4/4.8mm | 8 / 10mm | Heavy-duty frame |
| 4.0mm | 20 × 5.5/5.0mm | 8 / 10mm | Selected machines |
Final segment width must be matched to the gang saw blade thickness, required side clearance and machine configuration.
5. Why Tapered Segment Geometry?
The tapered segment profile provides controlled side clearance around the thin steel blade, helping reduce blade binding, maintain a narrow kerf and support stable reciprocating cutting through deep marble blocks.
6. Segment Height Options
8mm — Standard
Balanced sharpness, cutting load and segment life.
10mm — Extended Life
Additional usable diamond depth for continuous production.
Custom
7–11mm available for selected machines and customer specifications.
7. Segment Construction Options
Single Layer
3-Layer Sandwich
5-Layer Multi-Layer
Single-Layer Segment
Reliable / Cost-Effective
Best for regular marble production。
3-Layer Sandwich Segment
Balanced Sharpness + Straight Cutting
Premium Standard
Multi-Layer High-Performance Segment
Fast Cutting + Stable Wear + High Production
Supreme
8. Segment Shape Options
Segment Shape: Tapered / Straight / Boat Shape / Custom

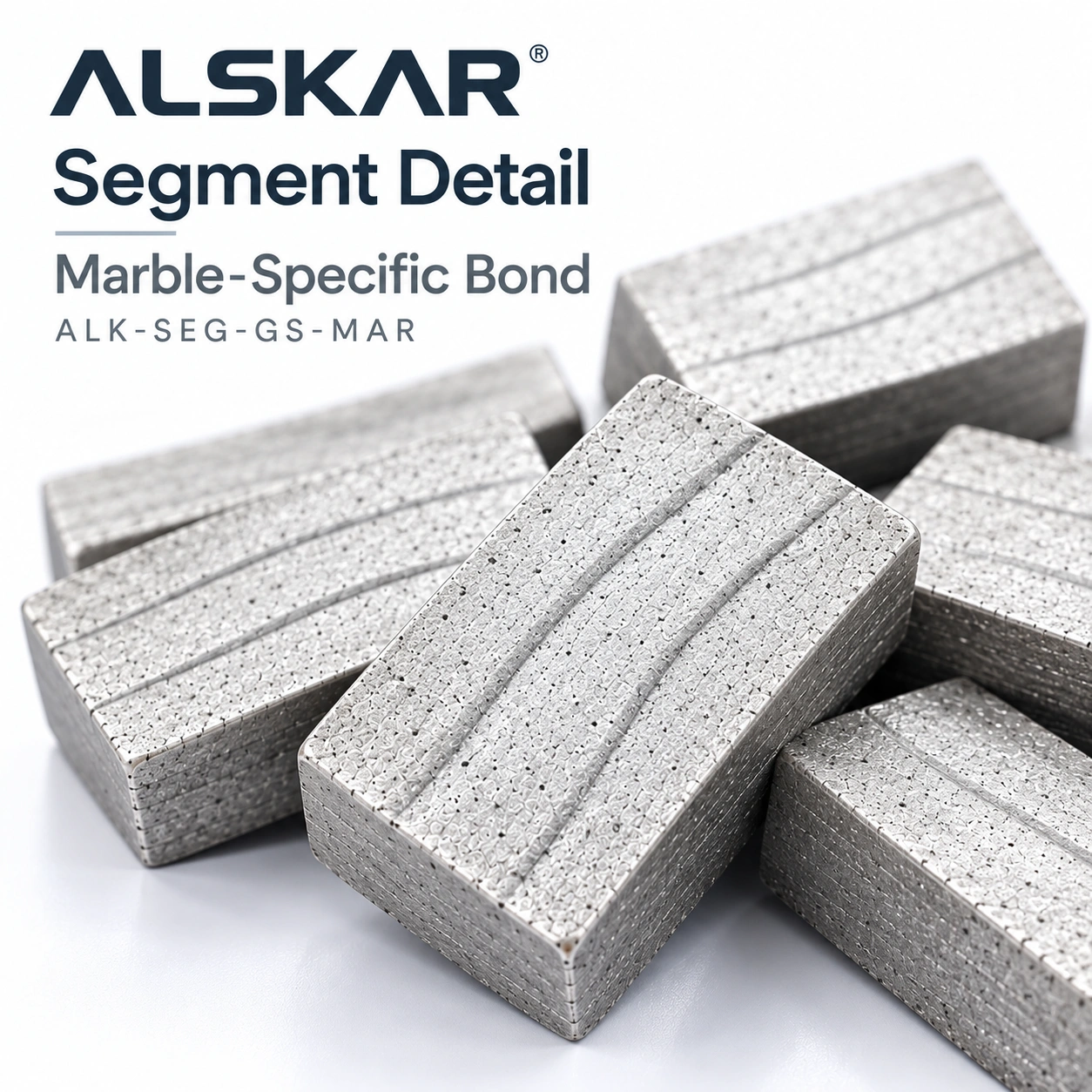

9. Marble Formula System
MG1 — Soft / Abrasive Marble
Design for：
Softer marble
Travertine
Abrasive limestone
Controlled Wear + Longer Life
MG2 — General Marble
Design for ：
Most commercial marble
Balanced Speed + Life + Surface Finish
MG3 — Dense / Hard Marble
Design for：
Crystalline / dense / harder marble
Higher Sharpness + Lower Cutting Pressure
10. Cutting Speed Positioning
Cutting feed rate is application dependent and should be matched to stone hardness, blade thickness, machine condition and required slab finish.
11. Segment Quantity
| Blade Length | Typical Segment Quantity |
|---|---|
| 2000mm | 14–16 |
| 2500mm | 17–19 |
| 2700mm | 20–22 |
| 3000mm | 21–23 |
| 3100mm | 26–28 |
| 3500mm | 27–29 |
| 3800mm | 28–30 |
| 3950mm | 30–32 |
| 4300mm | 32–35 |
| 4500mm | 34–37 |
Final quantity depends on blade length, segment length, frame configuration, machine stroke and required spacing.
11. Thin Kerf & Stone Yield
Correctly matched segment width keeps the kerf narrow while maintaining sufficient side clearance, helping maximize slab yield from each marble block and reduce unnecessary stone loss.
12. Smooth Slab Surface
Stable segment geometry and controlled wear help support smooth slab surfaces and consistent thickness, reducing downstream calibration and polishing work.

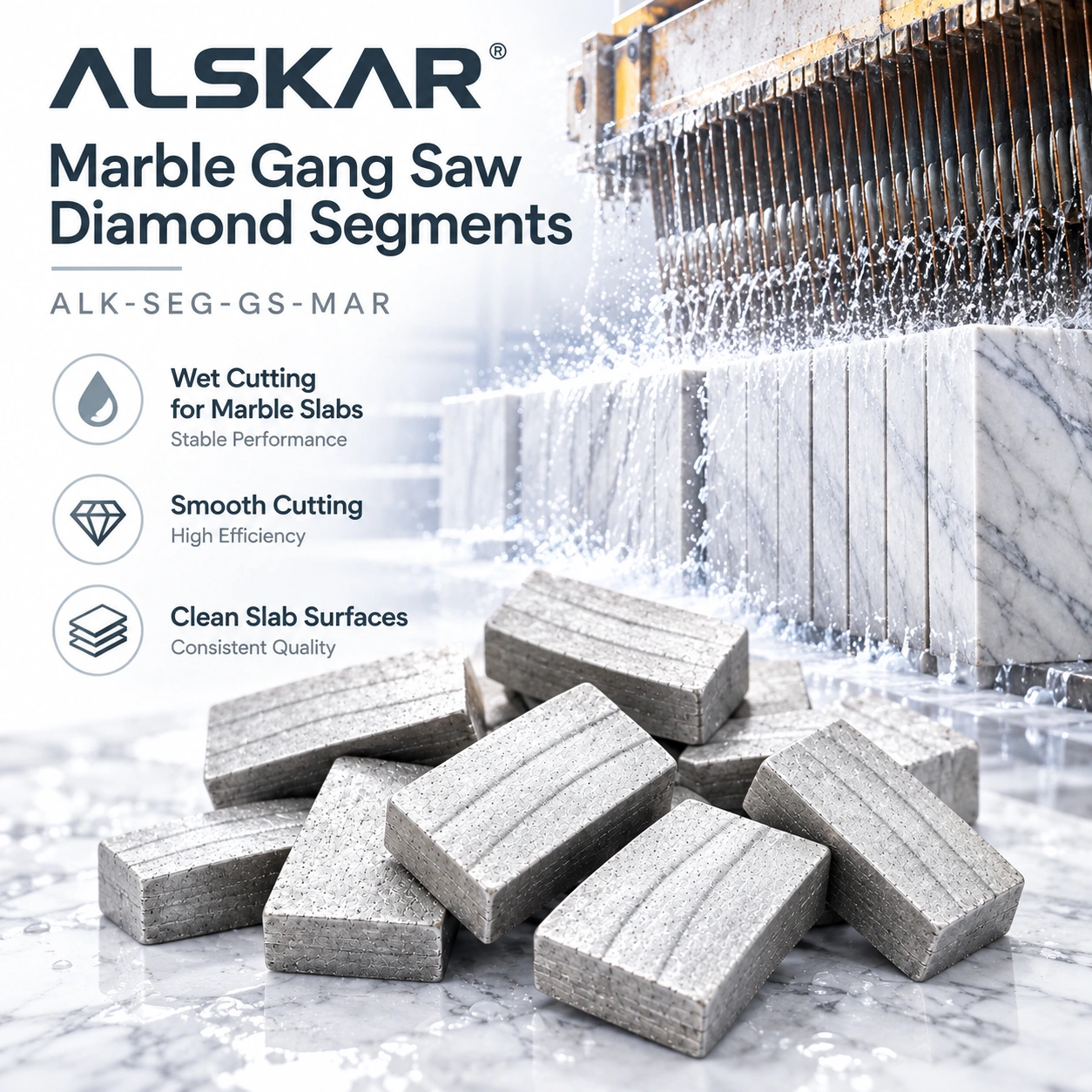

13. Wet Cutting
Continuous and sufficient water flow is required to control segment temperature, evacuate marble slurry and maintain stable cutting performance throughout long gang saw production cycles.
14. Retipping Application
Designed for professional retipping of gang saw blades that remain straight, correctly tensioned and structurally suitable for reuse. Segment taper, width, quantity and spacing should be matched to the original blade and gang saw system.
15. OEM Blade Manufacturing
For OEM gang saw blade manufacturers, Alskar can customize segment construction, bond, width, height, diamond concentration and segment spacing according to blade thickness, stone type and gang saw production requirements.
16. Attachment Method
Professional High-Frequency Brazing
OEM attachment process available.
17. Machine Compatibility
Diamond Gang Saw / Frame Saw
Marble Gang Saw Machine
Multi-Blade Stone Frame Saw
18. Quality Grade
| Grade | Segment Construction | Positioning |
|---|---|---|
| Standard | Single Layer | Reliable production / cost control |
| Premium | 3-Layer Sandwich | Better straightness + speed-life balance |
| Supreme | Multi-Layer / Advanced Formula | High-output professional production |
19. Key Selling Points
Marble-Specific Formula
Matched to soft, general or dense marble.
Thin Kerf
Supports higher slab yield and reduced stone loss.
Multi-Layer Options
Single, sandwich and advanced multi-layer constructions available.
Stable Slab Thickness
Designed for consistent multi-blade cutting.
2.0–4.0mm Blade Compatibility
Covers common global gang saw blade systems.
Retipping & OEM
Suitable for professional replacement and blade manufacturing.
20. Final Product Specifications
| Specification | Value |
|---|---|
| Product Type | Marble Gang Saw Diamond Segments |
| Parent SKU | ALK-SEG-GS-MAR |
| Application | Marble / Limestone / Travertine Slabbing |
| Use | Gang Saw Retipping / OEM |
| Blade Thickness | Approx. |
| 2.0–4.0mm | Typical Segment Length | 20mm | Segment Width | Tapered / blade-specific | Segment Height | 8 / 10mm standard / Custom 7–11mm | Typical Quantity | Approx. |
| 14–37 pcs depending on blade length | Segment Construction | Single / 3-Layer Sandwich / Multi-Layer | Segment Shape | Tapered / Straight / Boat / Custom | Formula | MG1 / MG2 / MG3 | Quality Grade | Standard / Premium / Supreme | Cutting Method | Wet Cutting | Attachment | Professional Brazing | Primary Materials | Marble / Limestone / Travertine | Machine | Marble Gang Saw / Frame Saw | Customization | Available |
21. FAQs
What are marble gang saw diamond segments used for?
They are used for professional retipping and OEM production of gang saw blades for marble, limestone and travertine block-to-slab cutting.
What blade thicknesses are supported?
Reference systems cover approximately 2.0–4.0mm gang saw blades, with custom sizes available.
What segment heights are available?
8mm and 10mm are the primary standard options, with custom heights approximately 7–11mm available.
What segment constructions are available?
Single-layer, sandwich and advanced multi-layer constructions.
What materials can these segments cut?
Marble, limestone, travertine and selected soft natural stone.
Why is thin kerf important?
A narrow kerf helps reduce stone waste and improve slab yield from each block.
Can Alskar match an existing gang saw segment?
Yes. Provide blade thickness, blade length, existing segment dimensions, stone type and machine information.
Are custom formulas available?
Yes. Formula, segment construction, dimensions and diamond concentration can be customized.
What cutting method is recommended?
Wet cutting with sufficient continuous cooling and slurry removal.
Can these segments be used for granite?
They are optimized for marble and soft natural stone. Granite should use dedicated Alskar Granite Gang Saw Diamond Segments
22. Get the Right Granite Segment for Your Blade
Send us your blade diameter, steel core thickness, current
segment dimensions, granite name and origin, machine information
and performance priority. Alskar will recommend a matched segment
geometry and formula.
| Material | Marble / Limestone / Travertine |
|---|---|
| Blade Thickness | 2.0–4.0mm / Custom |
| Segment Height | 8 / 10mm / Custom |
| Construction | Single / Sandwich / Multi-Layer |
| Segment Shape | Tapered / Straight / Boat |
| Formula | MG1 / MG2 / MG3 |
| Quality Grade | Standard / Premium / Supreme |
| Cutting Method | Wet Cutting |
| Use | Retipping / OEM |
| Customization | Available |
