Concrete & Reinforced Concrete Core Bit Diamond Segments for Retipping & OEM
Concrete & Rebar · Retipping & OEM · Custom Formula · Multiple Segment Designs · Professional Coring
Alskar Concrete & Reinforced Concrete Core Bit Diamond Segments are engineered for professional core bit retipping and OEM manufacturing. Available in multiple segment geometries and application-specific bond formulations, the series can be matched to core bit diameter, concrete hardness, aggregate type, reinforcement level and drilling machine power. From standard concrete to heavily reinforced structural applications, Alskar segment systems are designed to balance drilling speed, diamond exposure and dependable service life.
Request a Quote for Diamond Segments
Looking for diamond segments for gang saw blades, bridge saw blades, or core drill bits? Share your segment type, dimensions, cutting material, required quantity, and delivery destination. Our sales team will review your requirements and prepare a quotation.
1. Professional Core Bit Retipping System
The Alskar Core Bit Diamond Segment Series is designed for retipping reusable core bit barrels and for OEM production of new diamond core bits.
Unlike complete core bits, replacement segments need to be matched to much more than diameter alone. Correct segment selection depends on:
Core Bit Diameter
Barrel Wall Thickness
Concrete Hardness
Aggregate Type
Rebar Content
Drilling Machine Power
Wet / Dry Drilling Method
Required Speed vs. Life
2. Global Market Size Range
Core Bit Diameter: 25–300mm Standard Range
Larger Diameters: Custom Available

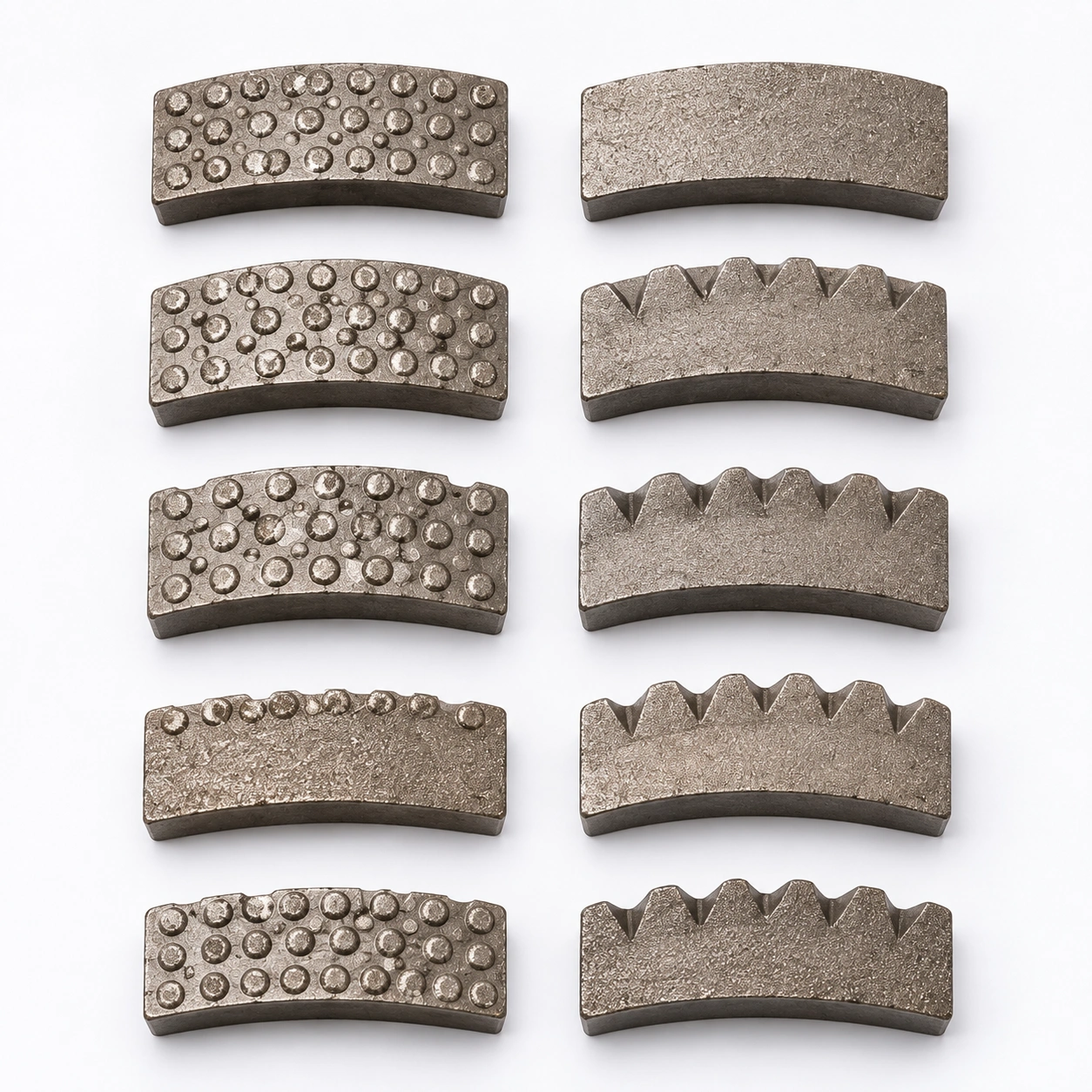

3. Segment Geometry Options
- Rectangular
- Roof
- Turbo
- Turbo + Roof
- Crown
- Dimple
- Mesh Roof
- Patterned / Ordered Diamond
- Great Wall / Zigzag
| Segment Design | Alskar 定位 |
|---|---|
| Standard Flat Segment | General concrete / value |
| Roof-Top Segment | Fast start / easier centering |
| Turbo / Turbo Roof Segment | Faster drilling / improved slurry evacuation |
| Dimpled / Patterned Segment | Improved opening / controlled diamond exposure |
| Precision Diamond Segment | Premium reinforced concrete / highest performance |
4. Roof-Top Segment
The roof-top profile reduces the initial contact area during drilling, helping the bit start more easily and establish the drilling path before the segment wears into its normal working profile.
Design for:
General Concrete
Reinforced Concrete
Professional Retipping
5. Turbo / Turbo Roof Segment
Fast Drilling / Improved Slurry Removal
Turbo grooves increase the active cutting edge and create additional paths for coolant and drilling slurry, supporting faster drilling and improved debris evacuation.
6. Dimpled / Patterned Segment
Patterned surface geometry helps improve initial diamond exposure and segment opening while supporting consistent drilling performance.

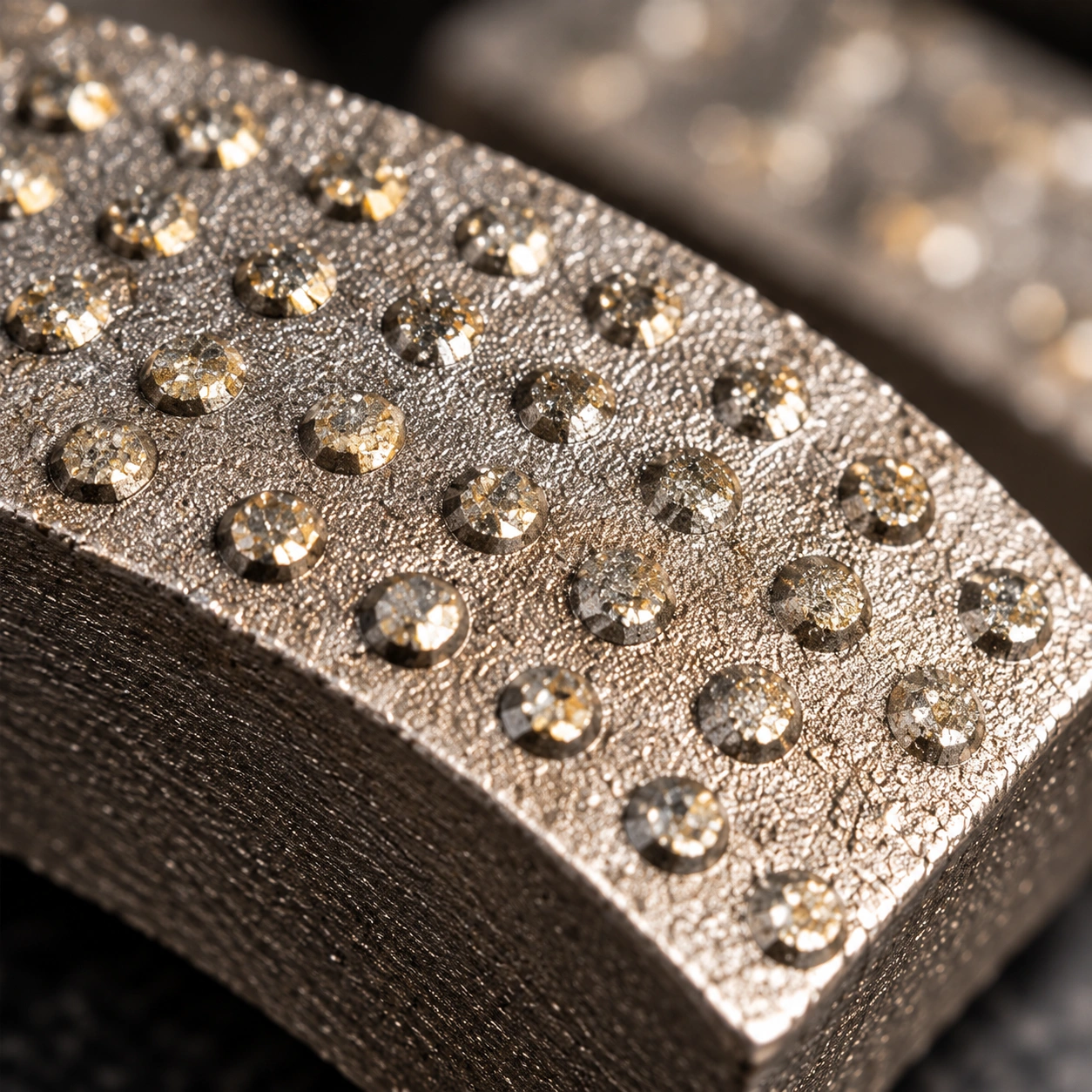

7. Precision Diamond Distribution
Precision Diamond Placement
Ordered Diamond Distribution
Design for:
Heavy Reinforcement
High Production
Premium Core Drilling
8. Application Formula System
| Formula | Positioning |
|---|---|
| C1 — General Concrete | Balanced speed and life for normal cured concrete |
| C2 — Reinforced Concrete | Designed for regular reinforcement levels |
| C3 — Heavy Reinforcement | Higher-performance formula for dense rebar conditions |
| C4 — Hard Aggregate | Designed to maintain diamond exposure in dense hard aggregate |
9. Segment Height
9 / 10 / 12mm Standard Options
15mm Extended-Life Custom Option

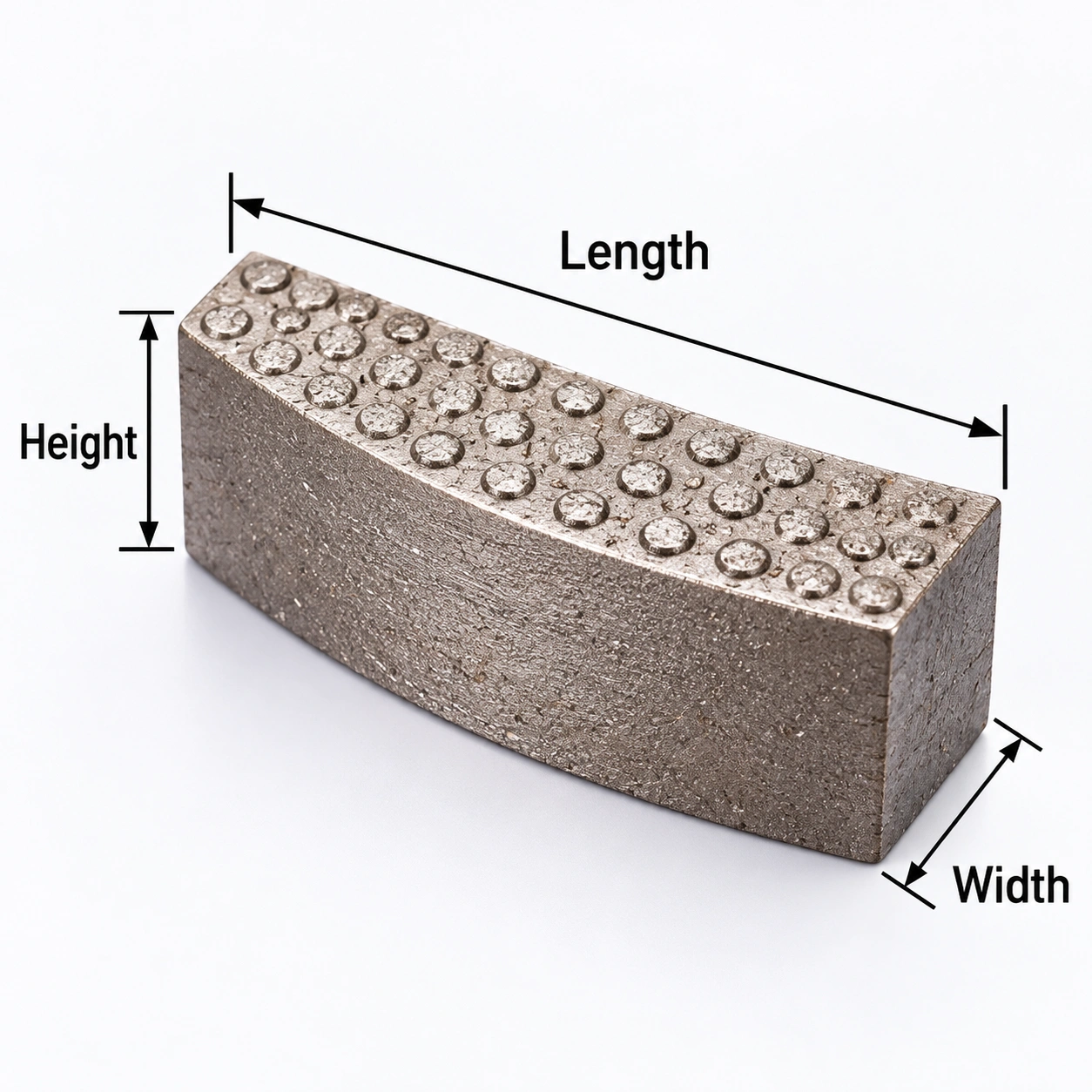

10. Segment Length & Width
Typical Segment Length
23 / 24mm
Width
Size-specific — matched to barrel diameter and wall thickness
11. Standard Reference Platform
| Core Bit Diameter | Typical Segment Length | Typical Width Range | Height Options |
|---|---|---|---|
| 25–52mm | 20–23mm | ~3.0–3.5mm | 9 / 10mm |
| 62–82mm | 23–24mm | ~3.5–4.0mm | 9 / 10 / 12mm |
| 92–127mm | 23–24mm | ~3.8–4.0mm | 9 / 10 / 12mm |
| 132–182mm | 24mm | ~3.8–4.2mm | 10 / 12mm |
| 200–250mm | 24mm | ~4.0–4.5mm | 10 / 12mm |
| 300mm+ | Custom | Custom | 10 / 12 / Custom |
Final segment size must be matched to the core bit barrel design, wall thickness and required side clearance.
12. Number of Segments
Segment Quantity: Diameter / Barrel Design Specific

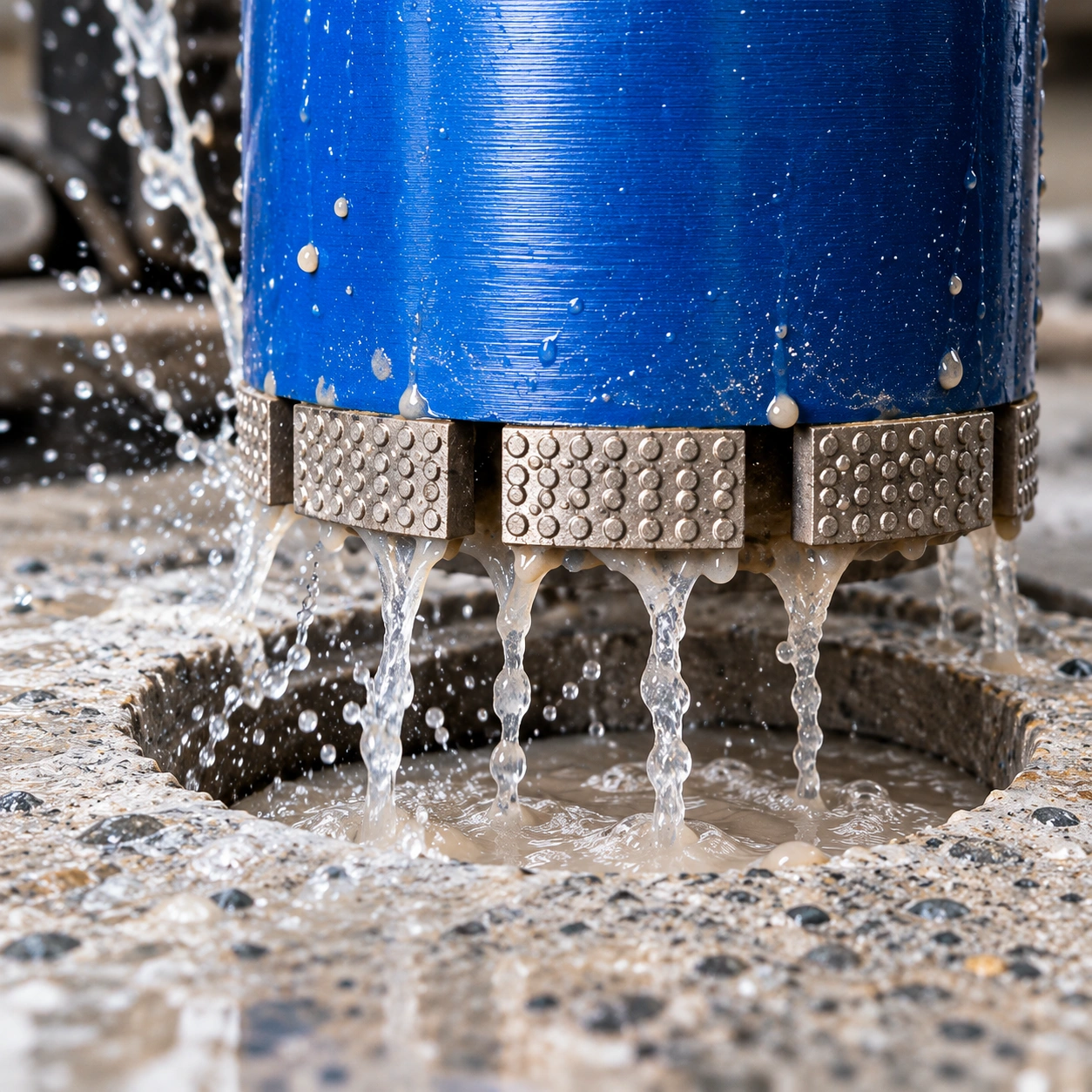

13. Wet / Dry Drilling
Standard Positioning
Wet Drilling
Dry-drilling formulas available for selected applications upon request.

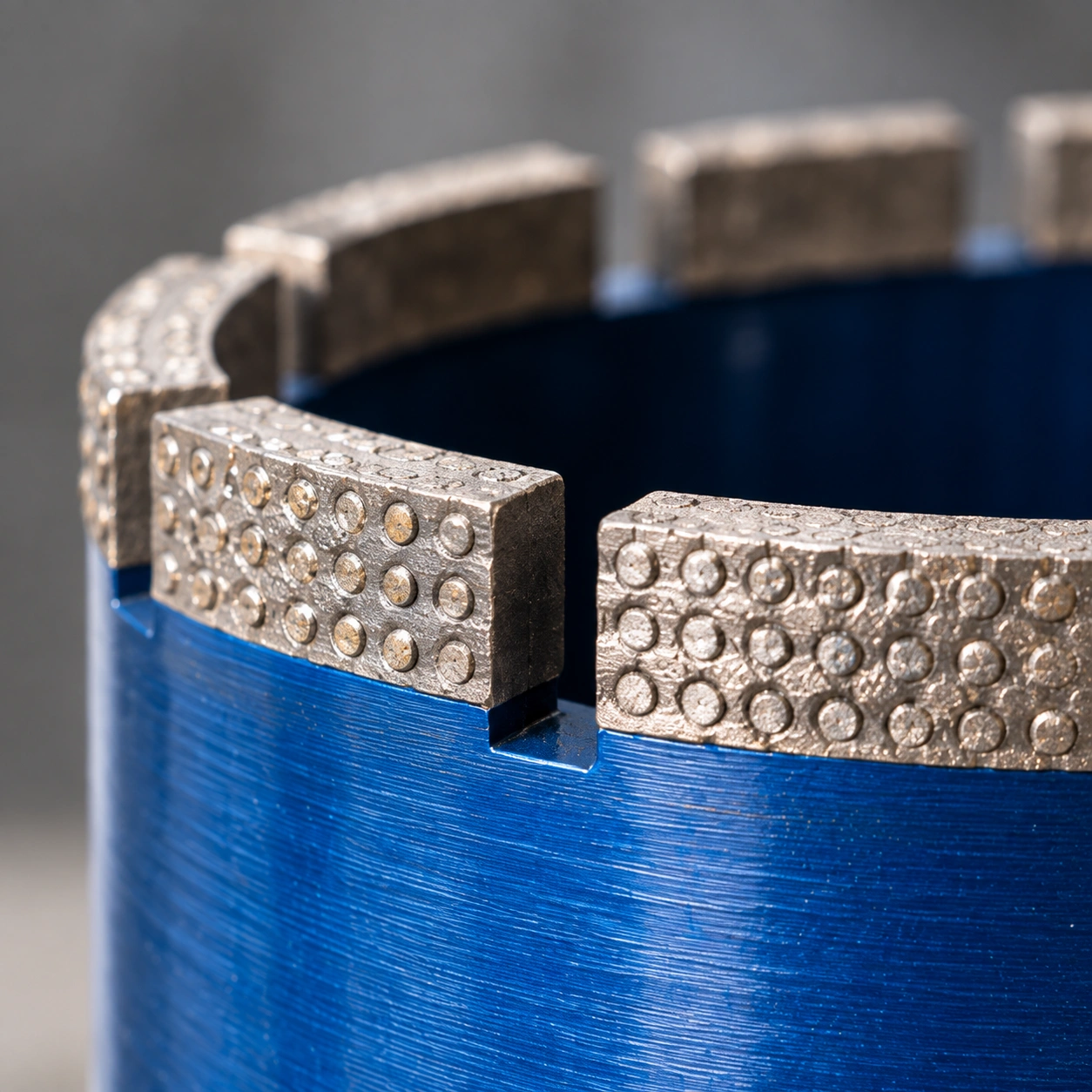

14. Retipping
Retipping allows a structurally sound core bit barrel to be reused by replacing worn diamond segments, helping professional drilling contractors and retipping shops reduce consumable cost.
15. OEM Core Bit Manufacturing
Alskar core bit segments are available for new core bit manufacturing, with custom formulas and geometries matched to barrel diameter, machine power and target drilling performance.
Retipping + OEM
16. Attachment Method
High-Frequency Brazing / Laser Welding — application dependent
Depends on:
- barrel material
- segment formula
- production process
- use condition
17. Primary Materials
Primary
Concrete
Reinforced Concrete
Secondary
Masonry
Brick
Block
18. Machine Compatibility
Rig-Mounted Core Drill
Handheld Core Drill — selected sizes
Professional Diamond Coring System
19. Quality Grade
Standard
General concrete / economical retipping
Premium
Concrete + regular reinforcement / better speed-life balance
Supreme
Heavy rebar / precision diamond distribution / high production
20. Key Selling Points
Concrete & Rebar Specific Formulas
Matched to concrete hardness and reinforcement level.
Multiple Segment Designs
Flat, Roof, Turbo, Dimpled and Precision options.
Professional Retipping
Designed to reuse structurally sound core bit barrels.
OEM Ready
Suitable for new core bit production.
Wide Diameter Coverage
Approx. 25–300mm standard platform with custom larger sizes.
Custom Application Engineering
Formula and dimensions matched to machine, barrel and material.
21. Final Product Specifications
| Specification | Value |
|---|---|
| Product Type | Concrete Core Bit Diamond Segments |
| Parent SKU | ALK-SEG-CB-CON |
| Application | Concrete / Reinforced Concrete |
| Use | Core Bit Retipping / OEM Manufacturing |
| Core Bit Diameter | Approx. |
| 25–300mm / Custom | Typical Segment Length | 23 / 24mm | Segment Width | Barrel-specific | Segment Height | 9 / 10 / 12mm / Custom | Segment Design | Flat / Roof / Turbo / Dimpled / Patterned / Precision | Diamond Distribution | Random / Layered / Patterned / Precision | Formula | C1 / C2 / C3 / C4 | Quality Grade | Standard / Premium / Supreme | Standard Drilling Method | Wet | Dry Formula | Selected applications / custom | Attachment | Brazing / Laser Welding | Machine | Core Drill / Rig-Mounted Coring System | Customization | Available |
22. FAQ
What are concrete core bit diamond segments used for?
They are used for professional retipping and OEM production of diamond core bits for concrete and reinforced concrete drilling.
What core bit diameters are supported?
Approximately 25–300mm as a standard platform, with larger sizes available by request.
What segment heights are available?
Common options include 9mm, 10mm and 12mm.
Can these segments drill reinforced concrete?
Yes. Dedicated reinforced concrete and heavy-rebar formulas are available.
What segment shapes are available?
Flat, roof-top, turbo, turbo-roof, dimpled, patterned and precision diamond options.
Can Alskar match my existing core bit segment?
Yes. Provide core bit diameter, barrel wall thickness, current segment dimensions, reinforcement level and machine information.
Are custom formulas available?
Yes. Bond, diamond concentration, segment geometry and dimensions can be customized.
Are these segments suitable for dry drilling?
The standard system is primarily designed for wet drilling, while selected dry-drilling formulas are available upon request.
Can they be used for OEM core bit production?
Yes. The segment platform supports both professional retipping and new core bit manufacturing.
