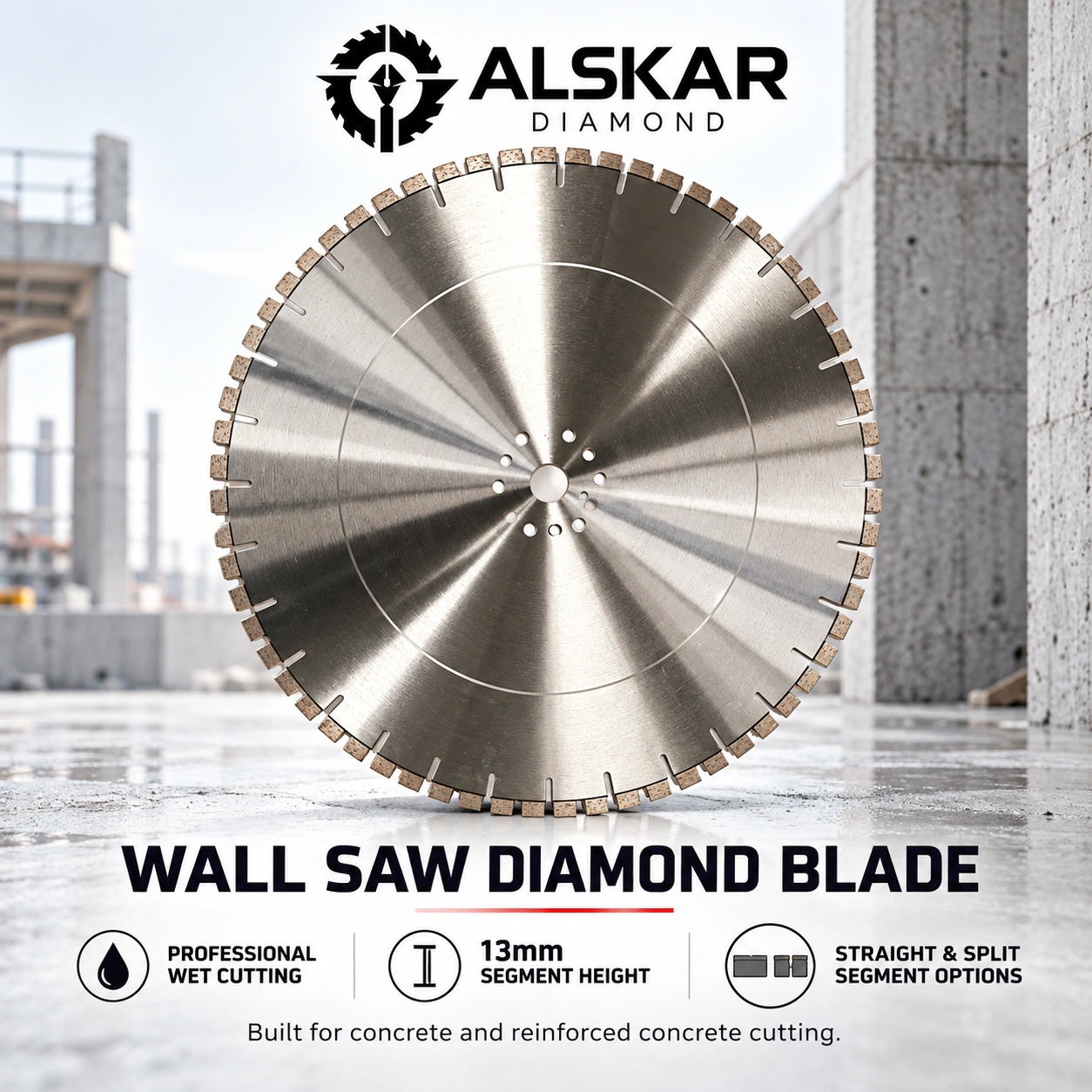

Professional Wall Saw Diamond Blade for Reinforced Concrete 24–66 in

1. Engineered for Professional Structural Concrete Cutting

The Alskar Professional Wall Saw Diamond Blade Series is designed for demanding structural concrete applications where cutting depth, steel reinforcement, blade stability and continuous cutting load are critical.

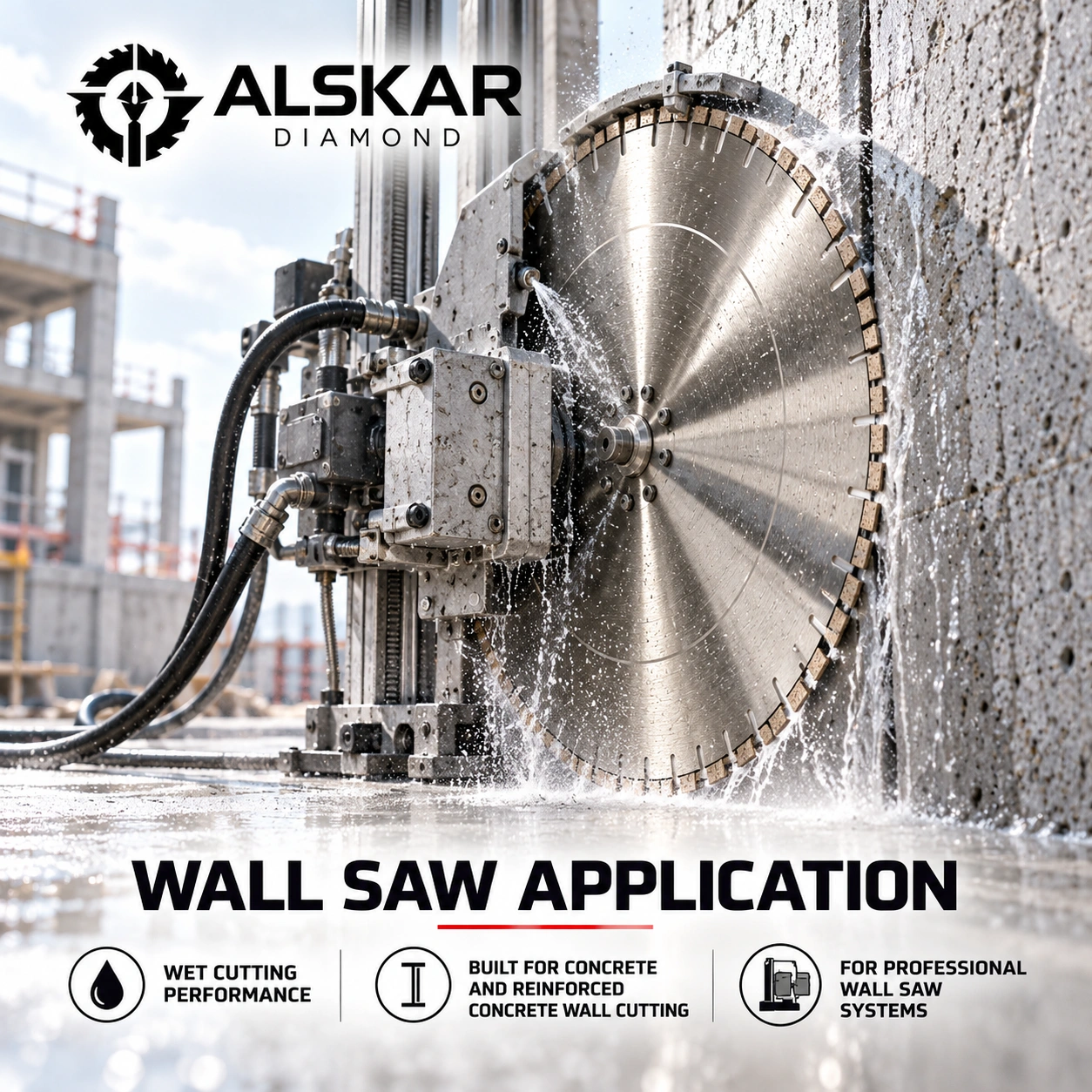

Professional track-mounted wall saws operate under significantly higher loads than conventional handheld or walk-behind saws. Large-diameter blades must maintain stable tracking while cutting through dense aggregate, cured structural concrete and steel reinforcement.

For this reason, the Alskar Wall Saw Series is configured as a professional cutting platform rather than a single universal blade specification.

Each blade can be matched according to:

Blade Diameter · Aggregate Hardness · Reinforcement Level · Saw Power · Segment Design · Mounting System

This allows the blade specification to be optimized for the actual wall-sawing application rather than relying on a one-blade-fits-all approach.

2. Straight vs Split Segment

Straight Segment

Balanced Cutting Speed & Long Blade Life

Straight segments provide a stable, conventional cutting profile suited to long continuous cuts and general professional wall-sawing applications.

Best For General reinforced concrete · Medium reinforcement · Long production cuts

Split Segment

Reduced Cutting Resistance for Reinforced Concrete

Split-segment geometry reduces the effective contact area at the cutting face, helping improve debris removal and cutting response in demanding reinforced-concrete applications.

Best For Heavy reinforcement · High-powered wall saws · Faster cutting priority

3. 13mm Professional Segment Platform

Segment Height: 13mm (.512″)

13mm laser-welded professional diamond segments provide substantial usable diamond depth for demanding structural concrete cutting while maintaining strong segment retention under continuous wall-saw loads.

4. Alskar WS01–WS05 Bond System

Harder Aggregate → Softer Bond
Softer / More Abrasive Aggregate → Harder Bond

WS03 Medium  general-purpose specification。

5. Recommended Applications

Reinforced Concrete · Structural Concrete · Cured Concrete

Typical engineering scenarios:

Door & Window Openings
Structural Wall Openings
Deep Wall Cutting
Concrete Demolition
Bridge & Infrastructure Work
Floor / Slab Openings
Mechanical & Utility Openings

6. Diameter Platform

24″ / 30″ / 36″ / 42″ / 48″ / 54″ / 60″ / 66″

Other diameters available on request.

7. Segment Width

Segment width is engineered according to blade diameter, core thickness and wall saw configuration.

Approx. .187″–.250″ depending on blade size and machine configuration.

8. Mounting System

Multiple Mounting Configurations Available

1″ Arbor · 35mm · 1-3/8″ · 60mm · Flush-Cut / Bolt Patterns · Machine-Specific Mounting

Please provide the wall saw model and mounting configuration when ordering.

Available for major professional electric and hydraulic wall saw systems.

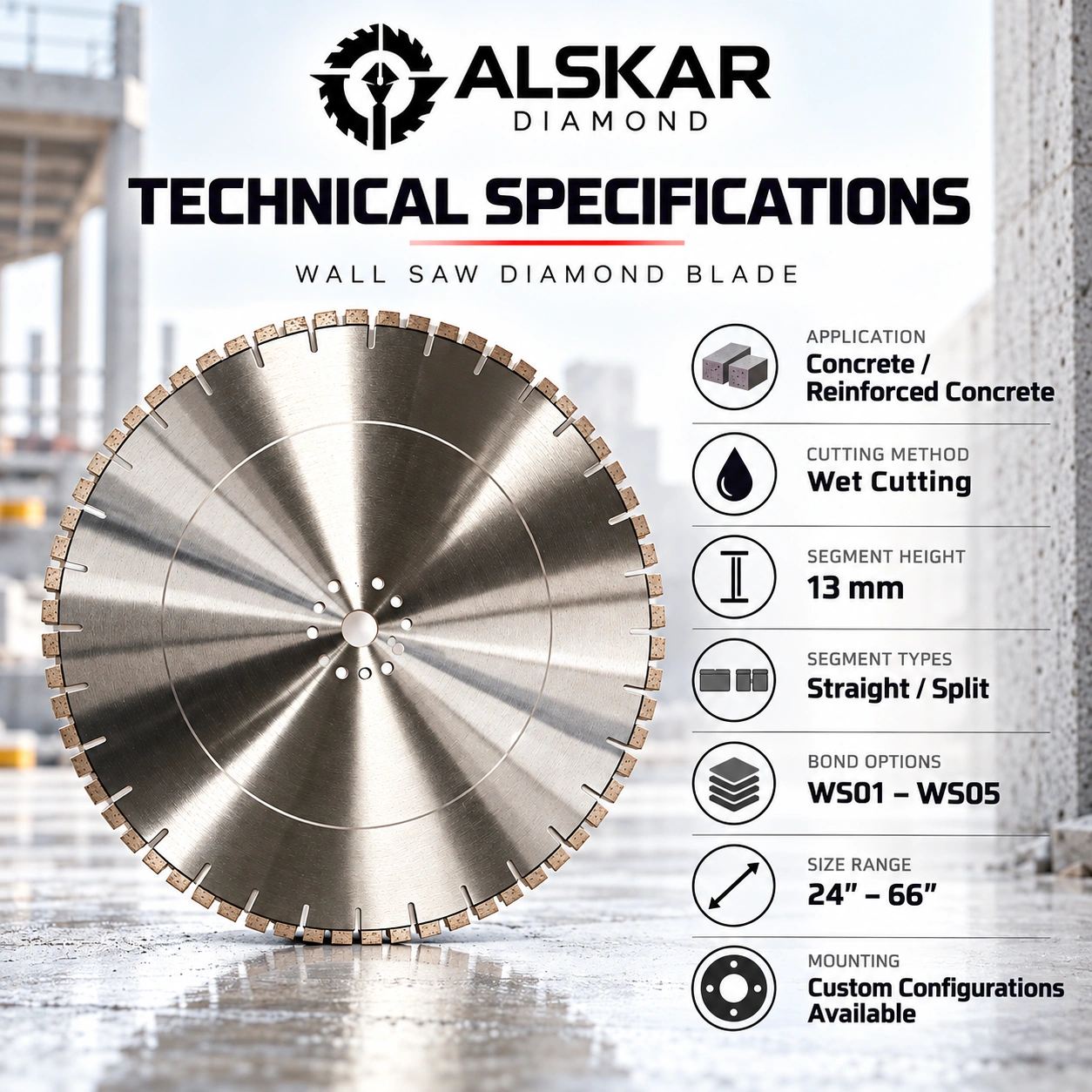

9. Final Specifications

10. FAQ

What is a wall saw diamond blade used for?
It is designed for deep cutting of reinforced and structural concrete with professional track-mounted wall saw systems.

What sizes are available?

24″, 30″, 36″, 42″, 48″, 54″, 60″ and 66″ standard sizes, with other diameters available on request.

What is the segment height?

13mm

What is the difference between Straight and Split segments?
Straight segments provide balanced speed and life, while Split segments reduce cutting resistance and are better suited to demanding reinforced-concrete cutting.

How many bond options are available?

Five: WS01–WS05.

Is this blade wet or dry cutting?

Wet cutting only.

Can it be supplied for different wall saw brands?

Yes. Multiple arbor and mounting configurations are available for major professional electric and hydraulic wall saw systems.

Engineered for the Saw. Matched to the Concrete. Built for the Cut.

Deep Cuts. Heavy Reinforcement. Professional Wall Saw Performance.
