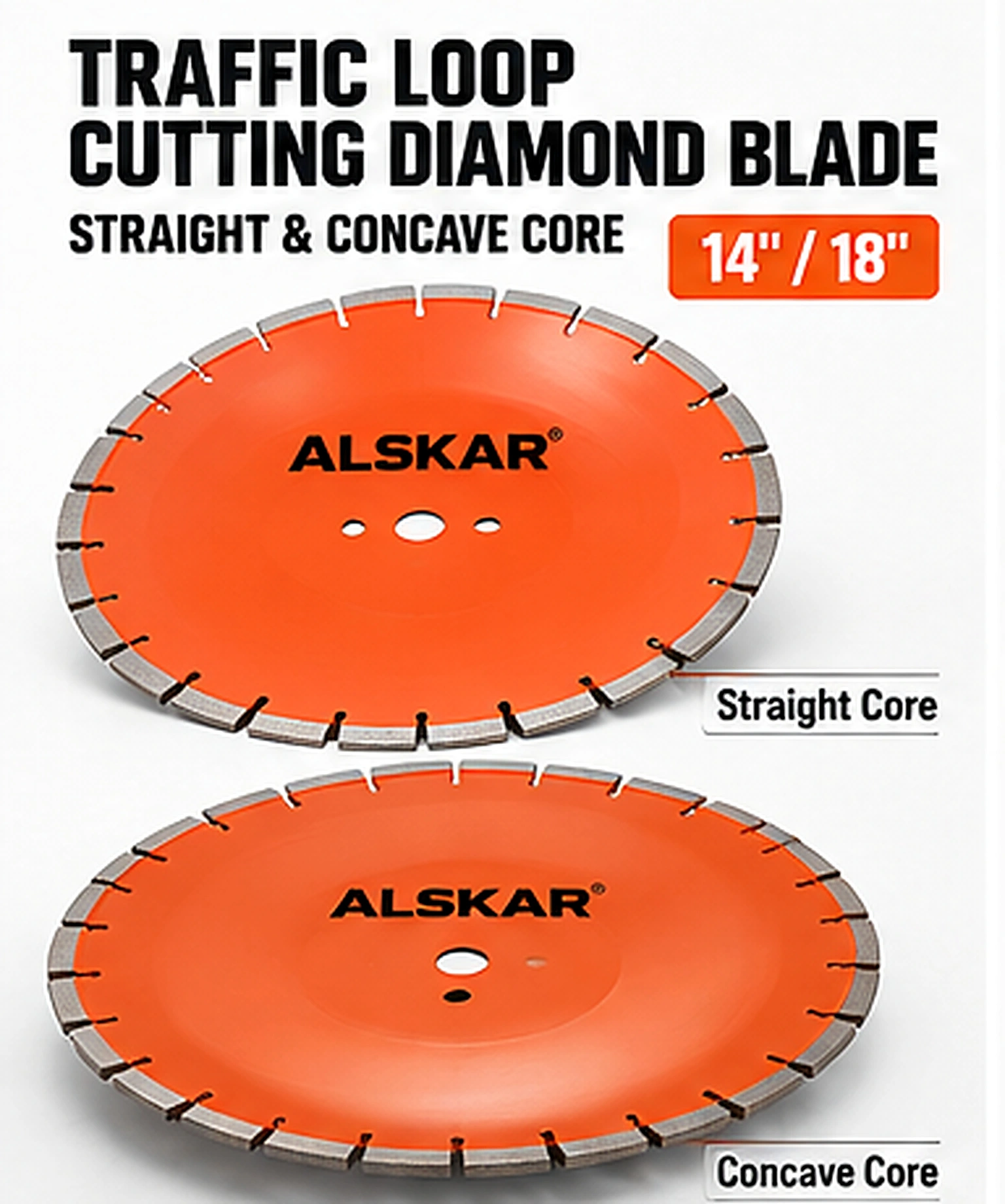

Professional Traffic Loop Cutting Diamond Blade – Straight & Concave Core 14–18 in

1. Product Overview

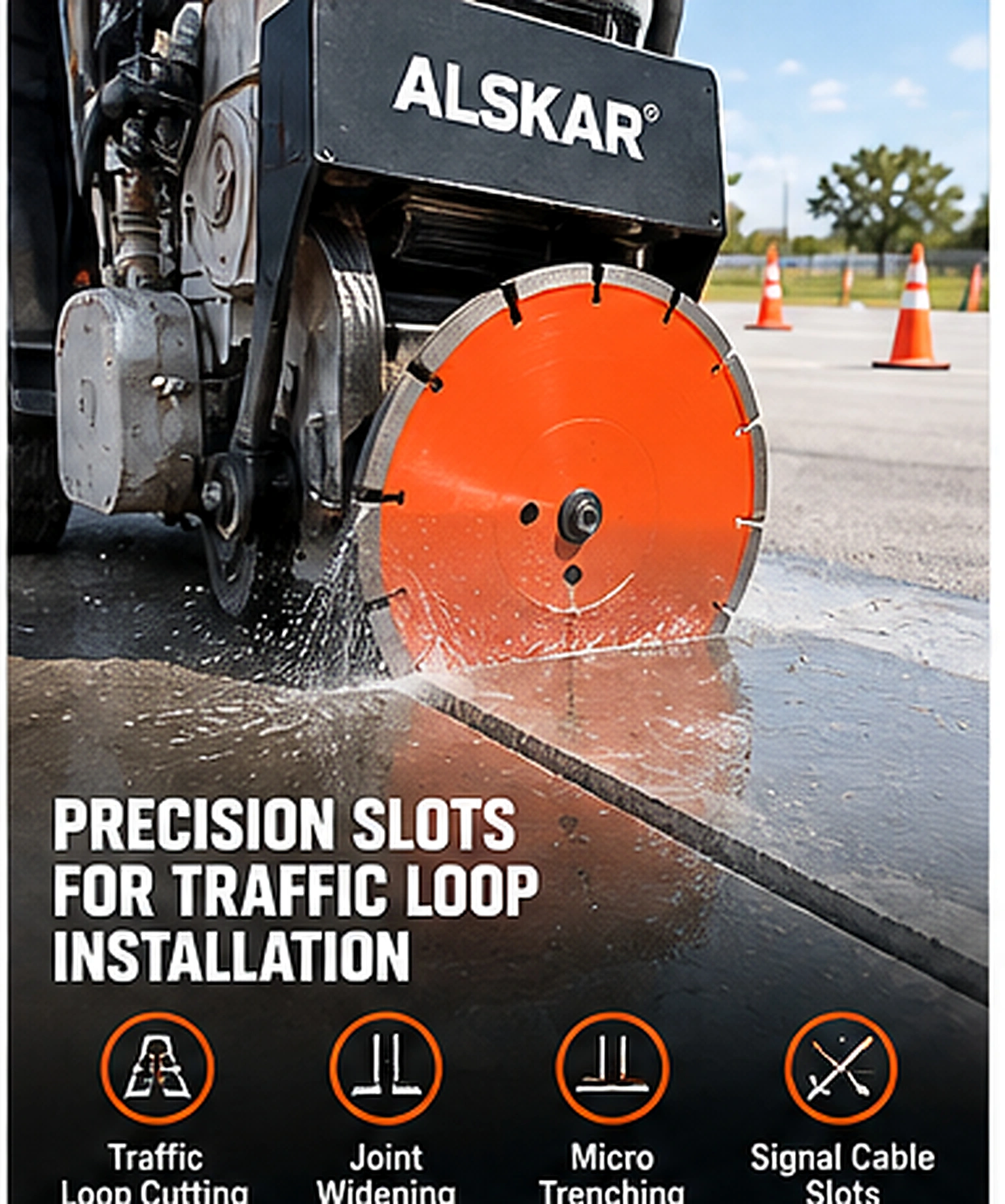

Precision Slots for Traffic Loop Installation

The Alskar Professional Traffic Loop Cutting Diamond Blade Series is designed for contractors installing inductive vehicle-detection loops and traffic-signal systems in concrete and asphalt pavement.

Traffic-loop cutting requires a controlled slot width and consistent cutting path so detector wire and sealant can be installed correctly without unnecessary clearance, binding or damage.

To meet different loop geometries, the Alskar Traffic Loop Series is available with two specialized core designs:

Straight Core

Designed for accurate straight-line slot cutting in conventional rectangular traffic loops, joint widening and micro-trenching applications.

Concave Core

Designed specifically for circular and radius loop cutting, allowing smoother curved cuts and helping reduce wire pinching during loop-wire installation.

2. Straight Core

Precision Straight-Line Cutting

The Straight Core version is designed for:

Rectangular Traffic Loops
Straight Detector-Wire Slots
Joint Widening
Micro-Trenching
Signal-Cable Installation

Feature：

• Stable straight cutting
• Consistent slot width
• Controlled groove geometry
• Suitable for professional traffic-loop saws
• Available in two wide-kerf options

Built for straight, consistent traffic-loop slots.

3. Concave Core

Precision Circular & Radius Cutting

The Concave Core version is engineered for:

Circular Traffic Loops
Radius Cuts
Curved Detector-Wire Slots
Round Loop Installations

Concave / dish-shaped core allows the blade to follow a curved cutting path more naturally than a conventional flat straight-cutting blade.

Feature：

• Cleaner radius transitions
• Smoother circular cuts
• Reduced wire pinching risk
• More consistent loop geometry
• Purpose-built for circle-loop cutting systems

Designed for clean radius cuts and professional circular loop installation.

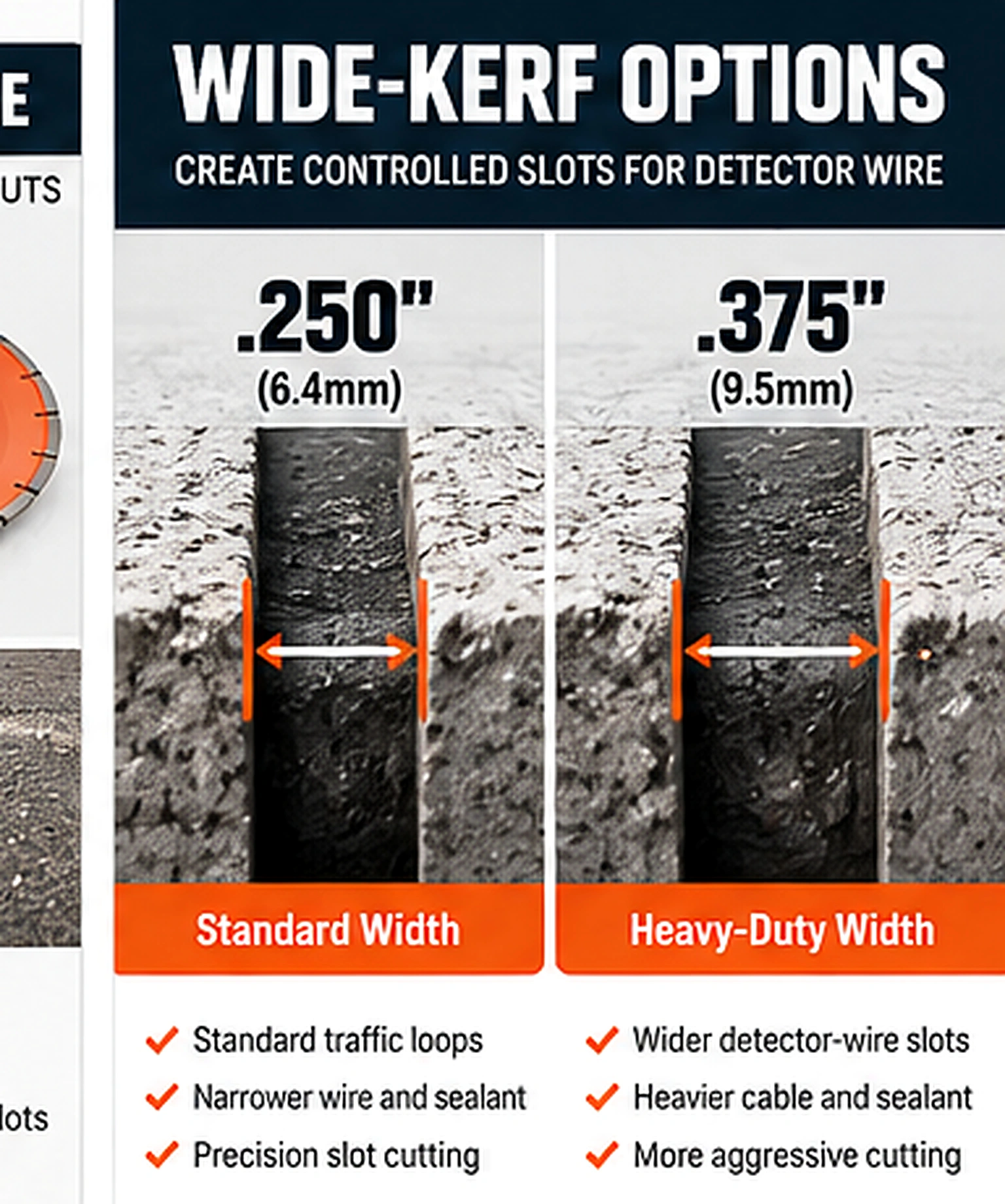

4. Wide-Kerf Cutting

.250″ Width

Standard traffic-loop slots
Narrower wire-and-sealant channels
Precision loop installation

Standard Wide-Kerf Loop Cutting

.375″ Width

Wider detector-wire slots
Heavier cable / sealant requirements
More aggressive slot formation

Heavy-Duty Wide-Kerf Cutting

Purpose-built wide kerfs create controlled slots for detector wire and sealant installation without stacking multiple conventional blades.

5. Recommended Applications

Primary Applications

Traffic Detector Loop Installation
Traffic Signal Loop Cutting
Inductive Loop Installation

Additional Applications

Joint Widening
Micro-Trenching
Signal Cable Slots
Utility Wire Installation
Pavement Grooving

6. Pavement Materials

Concrete Specification

Cured Concrete
Concrete Pavement
Concrete Intersections

Asphalt Specification

Asphalt
Blacktop
Abrasive Pavement

Use the bond specification matched to the pavement material being cut.

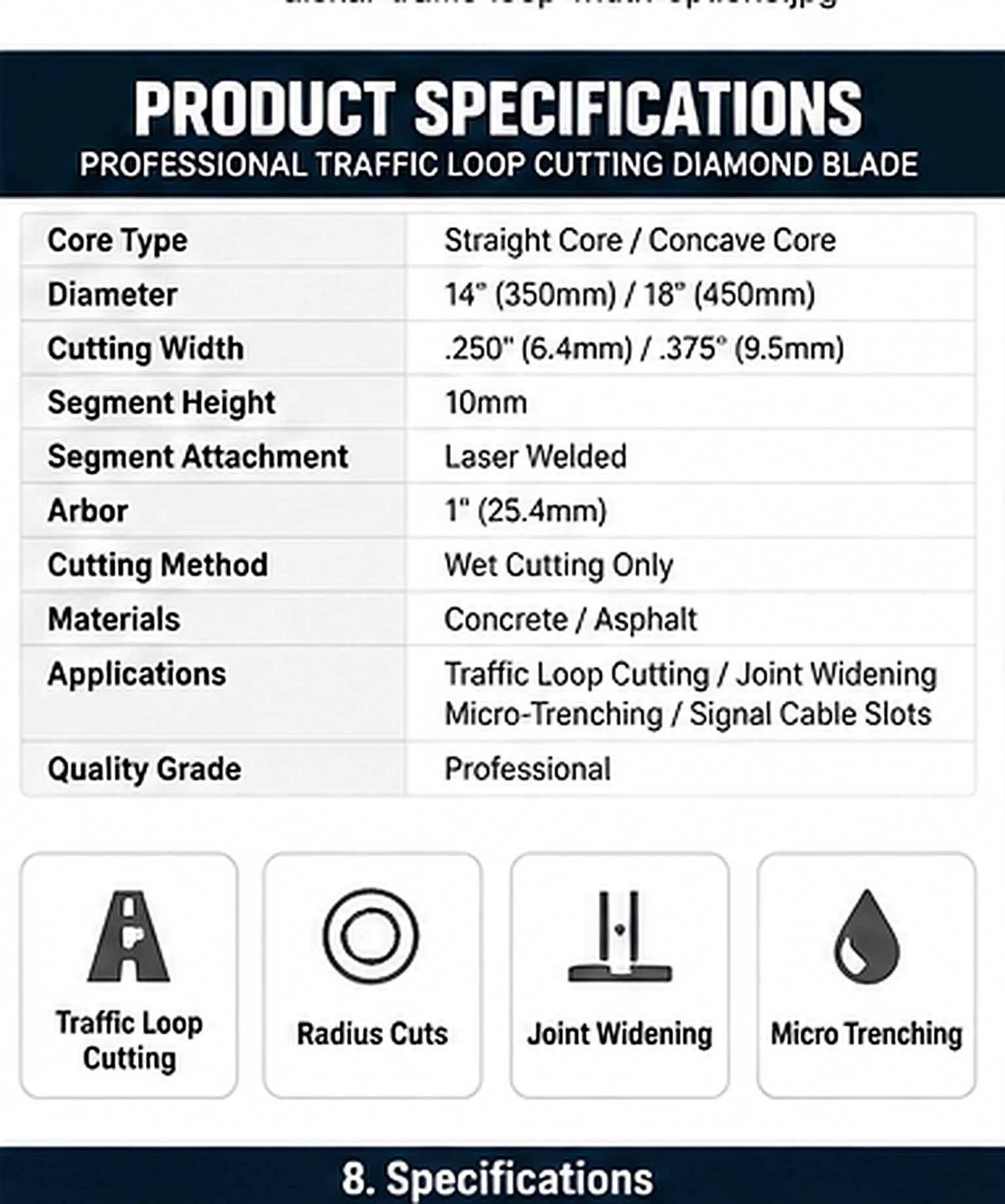

7. Final Specifications

8. Purchase Area Selling Points

Straight & Circular Loop Cutting

Choose Straight Core for conventional straight slots or Concave Core for circular and radius loops.

Wide-Kerf Design

.250″ and .375″ widths create controlled slots for detector wire and sealant.

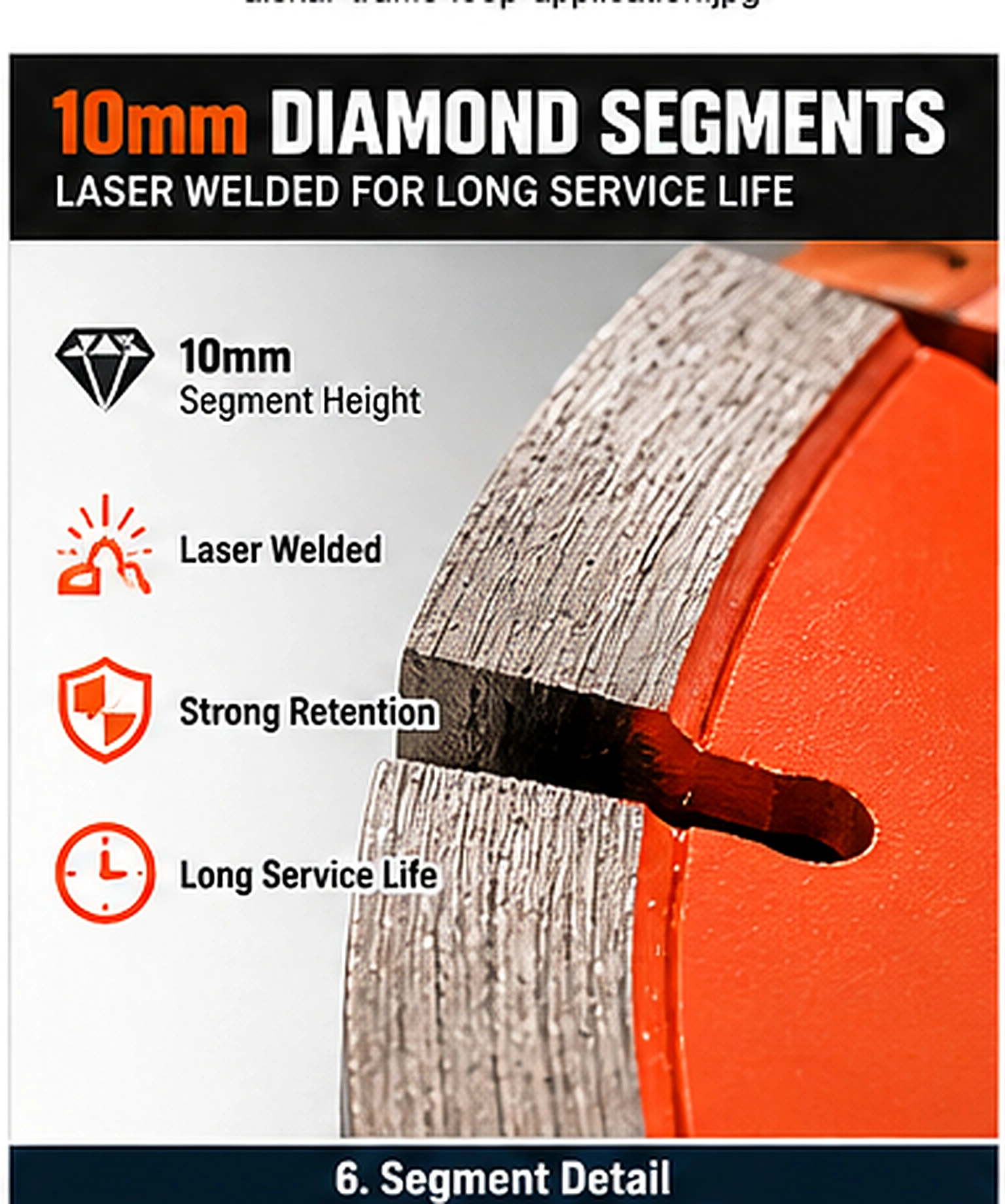

10mm Laser-Welded Segments

Professional diamond segments designed for demanding pavement slot cutting.

Concrete & Asphalt Applications

Bond specifications can be matched to the pavement material being cut.

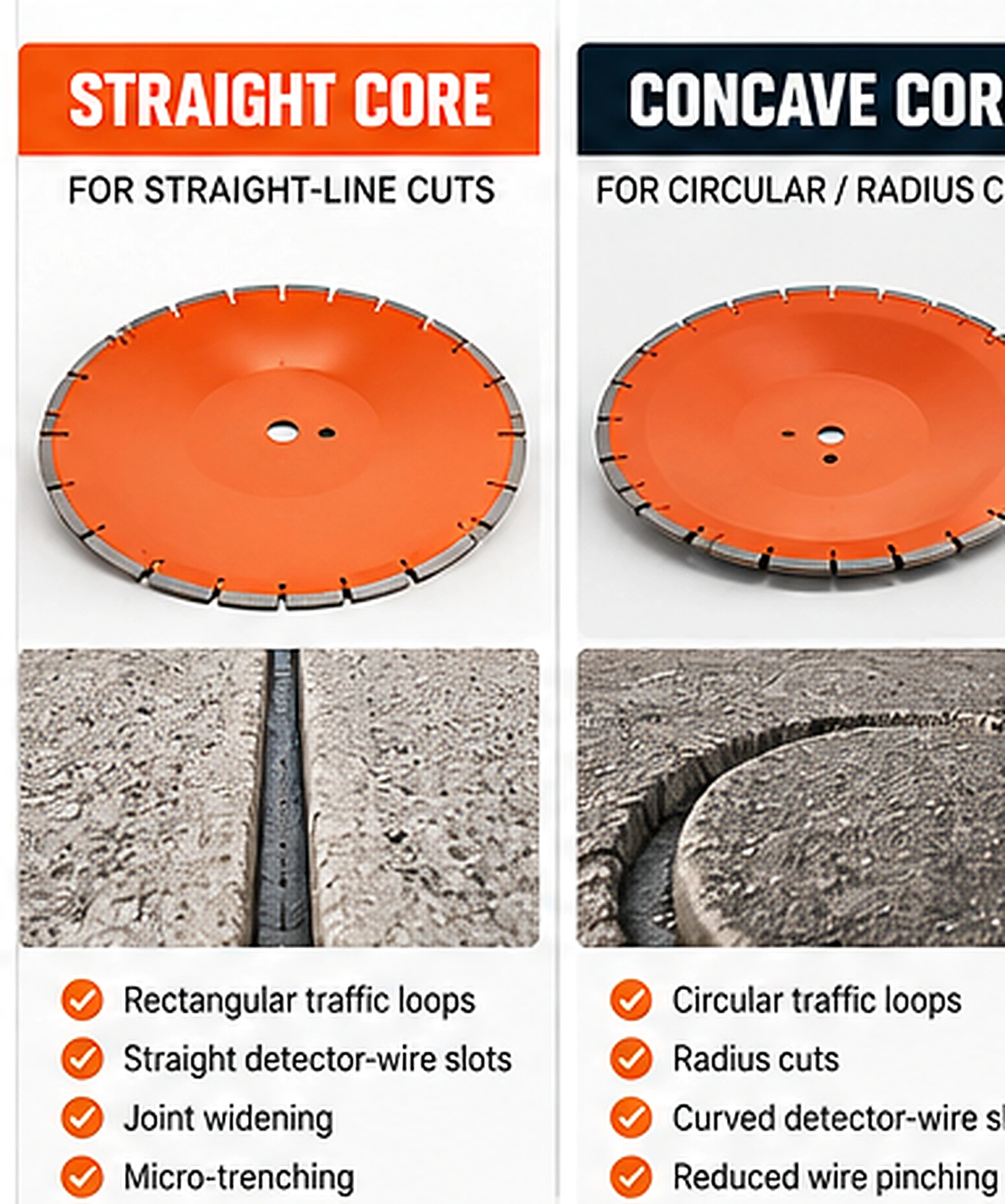

9. Core Selection Guide

Choose the Core. Control the Loop Geometry.

9. Width Selection Guide

10. FAQ

What is a traffic loop diamond blade?

It is a wide-kerf diamond blade designed to cut pavement slots for inductive traffic detector wire and signal-loop installation.

What is the difference between Straight Core and Concave Core?

Straight Core blades are designed for straight-line slots, while Concave Core blades are designed for circular and radius loop cutting.

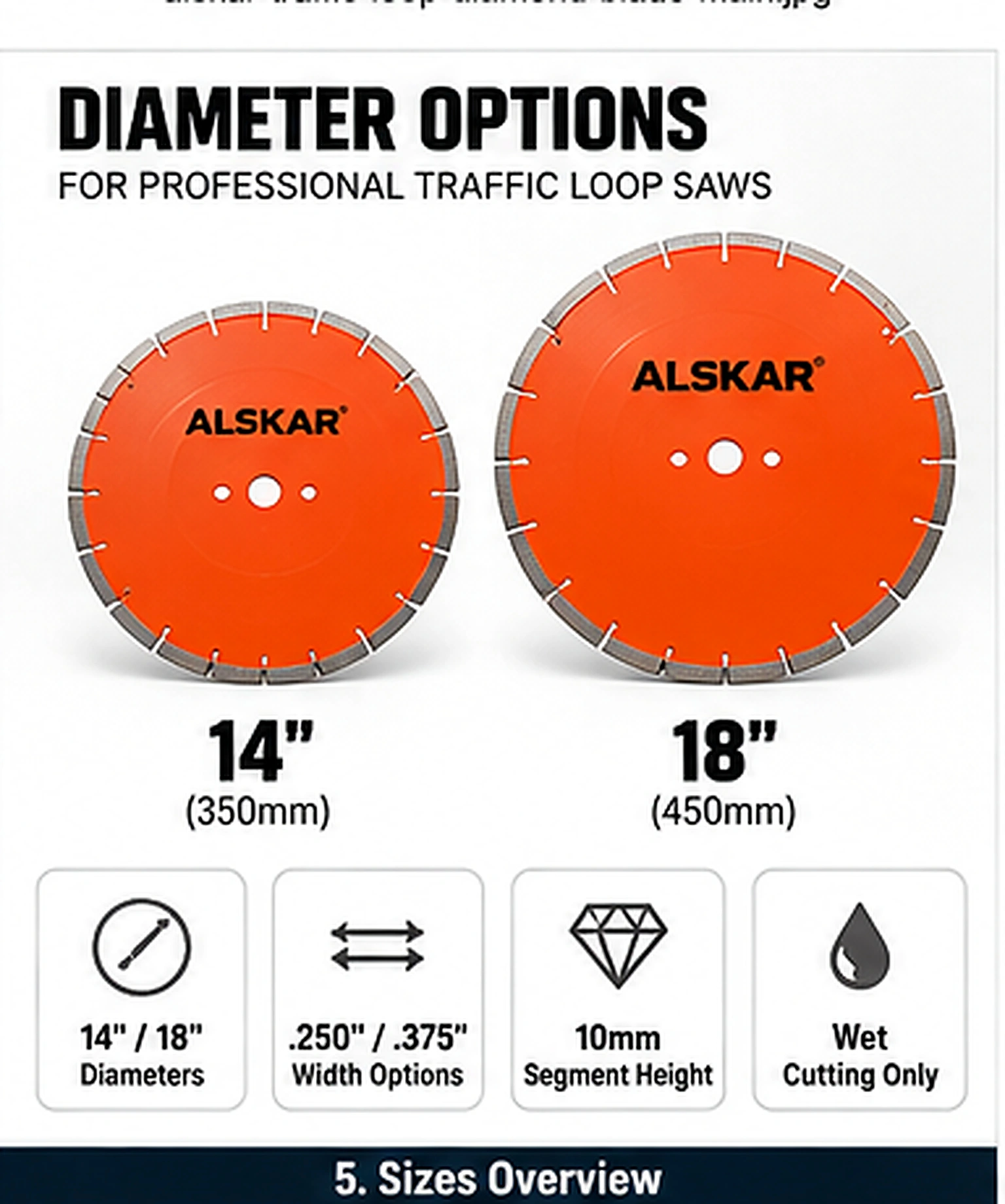

What diameters are available?

14″ and 18″

What cutting widths are available?

.250″ and .375″

What is the segment height?

10mm

What arbor does the blade use?

1″ arbor

Is this blade wet or dry?

Wet cutting.

Can it cut concrete and asphalt?

Yes, with the appropriate bond specification selected for the pavement material.

Straight Lines. Clean Radius Cuts. Precision Loop Installation.

Built for Traffic Loops. Engineered for Controlled Slots.
