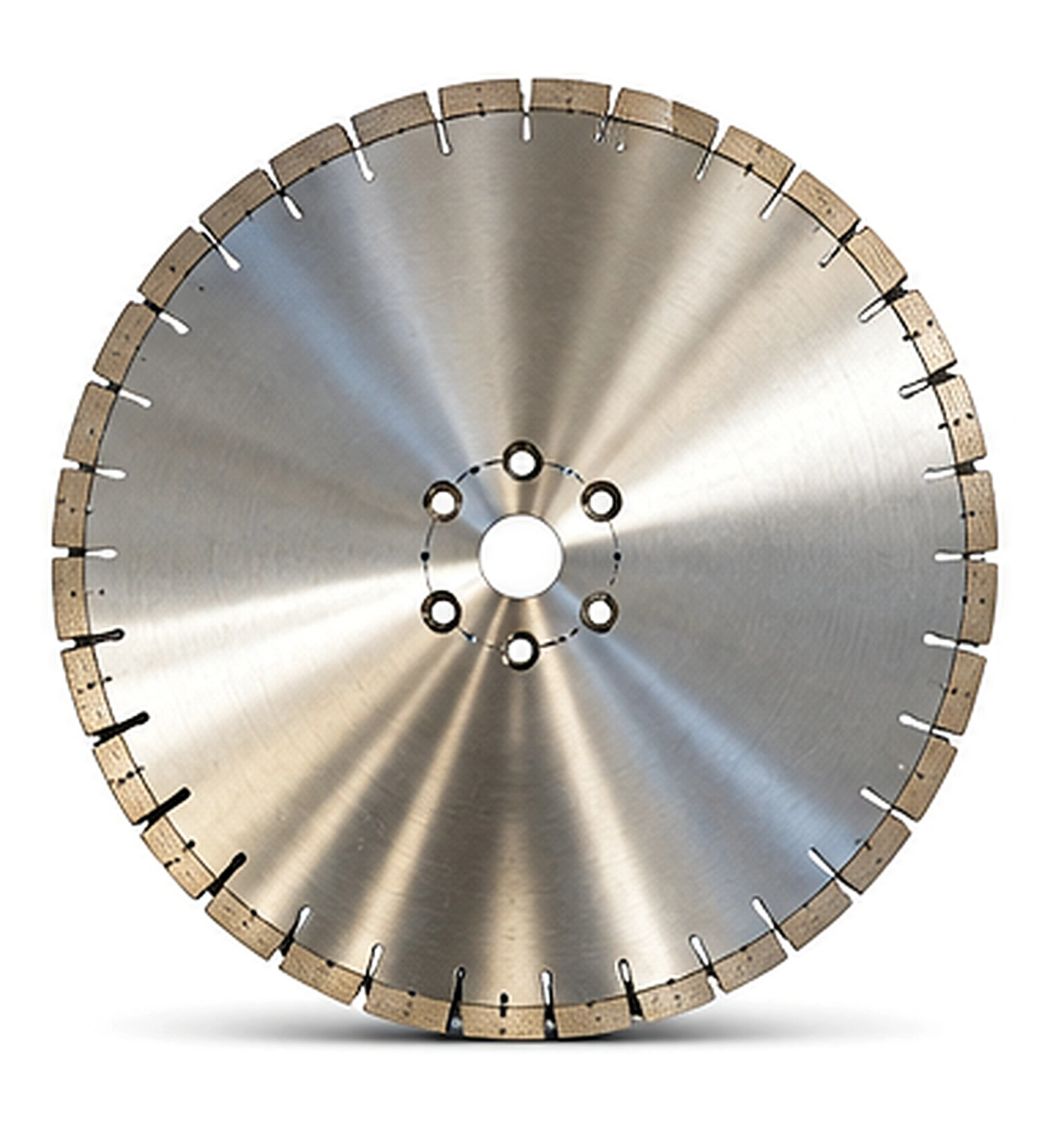

Professional Hydraulic Hand Saw Diamond Blade for Concrete 16–24 in
Price range: $138.00 through $252.00
12mm Professional Segments · .140″ Cutting Width · Hydraulic Hand Saw / Flush-Cut · 6-Bolt 88.9mm PCD Mount
The Alskar Professional Hydraulic Hand Saw Diamond Blade is engineered for wet cutting concrete and reinforced concrete with high-torque hydraulic hand saws and compatible flush-cut systems. Available from 16″ to 24″, the blade features 12mm (.472″) diamond segments, a .140″ cutting width, 1″ center arbor and six countersunk mounting holes on a 3.5″ (88.9mm) bolt circle. The Longyear / HV-style flush-cut mounting pattern allows compatible saw systems to cut close to walls, floors and structural surfaces while delivering stable, professional concrete-cutting performance.
1. Built for High-Torque Hydraulic Concrete Cutting
The Alskar Professional Hydraulic Hand Saw Diamond Blade is designed for professional concrete cutters who require dependable performance from high-torque hydraulic hand saw systems.
Hydraulic hand saws are commonly used for structural concrete cutting, reinforced-concrete openings, wall work, demolition and applications where conventional high-speed saws cannot provide the required cutting depth or control.
The blade combines a 12mm diamond segment, .140″ cutting width and professional steel core to provide stable cutting under continuous hydraulic load.
Its specialized mounting configuration includes a 1″ center arbor and six countersunk bolt holes on a 3.5″ (88.9mm) PCD, making it suitable for compatible Longyear / HV-style hydraulic flush-cut systems.
2. Flush-Cut Capability
One of the most important advantages of this blade is the dedicated flush-cut mounting pattern.
Instead of relying only on the center arbor, the blade can be secured directly to a compatible flush-cut flange using the six countersunk mounting holes.
This allows the saw to cut very close to:
Walls · Floors · Curbs · Structural Surfaces · Concrete Openings
This makes the blade especially useful for professional demolition, remodeling and structural concrete work where clearance is limited.

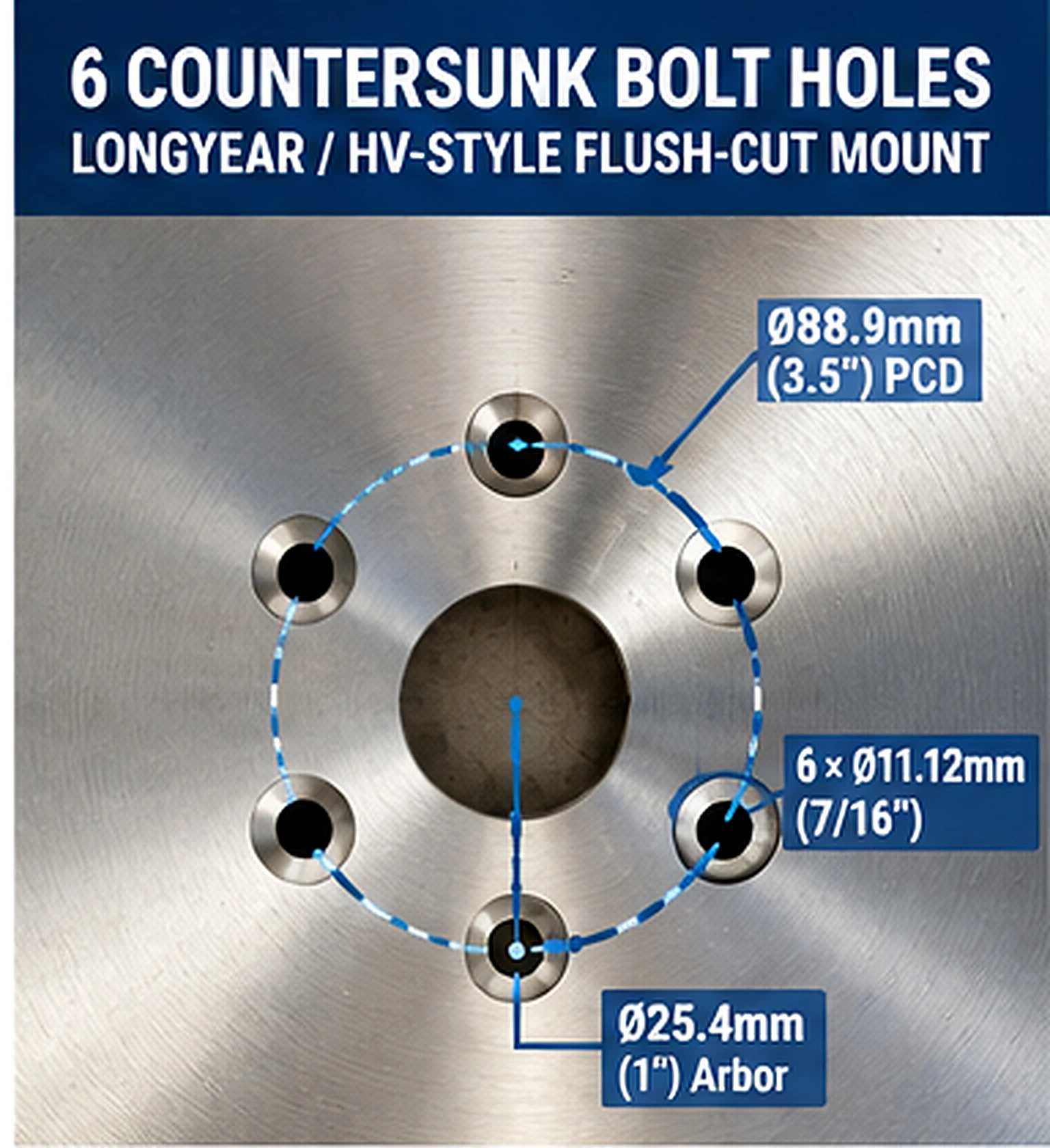

3. Mounting System
| Specification | Final Specification |
|---|---|
| Center Arbor | 1″ / 25.4mm |
| Flush-Cut Mount | 6 Countersunk Bolt Holes |
| Bolt Circle | 3.5″ / 88.9mm PCD |
| Bolt Hole Diameter | 7/16″ / 11.12mm |
| Pattern | Longyear / HV-Style Flush-Cut Pattern |
Compatible with hydraulic hand saw and flush-cut systems using a 1″ arbor and Longyear / HV-style 6-bolt pattern with a 3.5″ (88.9mm) bolt circle. Always verify flange and bolt-pattern dimensions before ordering.
4. Recommended Applications
Reinforced Concrete · Cured Concrete · Structural Concrete · Concrete Walls · Concrete Openings
Brick · Block · Masonry
5. Key Features
Hydraulic Hand Saw Performance
Designed for continuous cutting loads generated by professional hydraulic hand saw systems.
Flush-Cut Ready
Six countersunk bolt holes allow compatible flush-cut flange mounting for close-to-surface cutting.

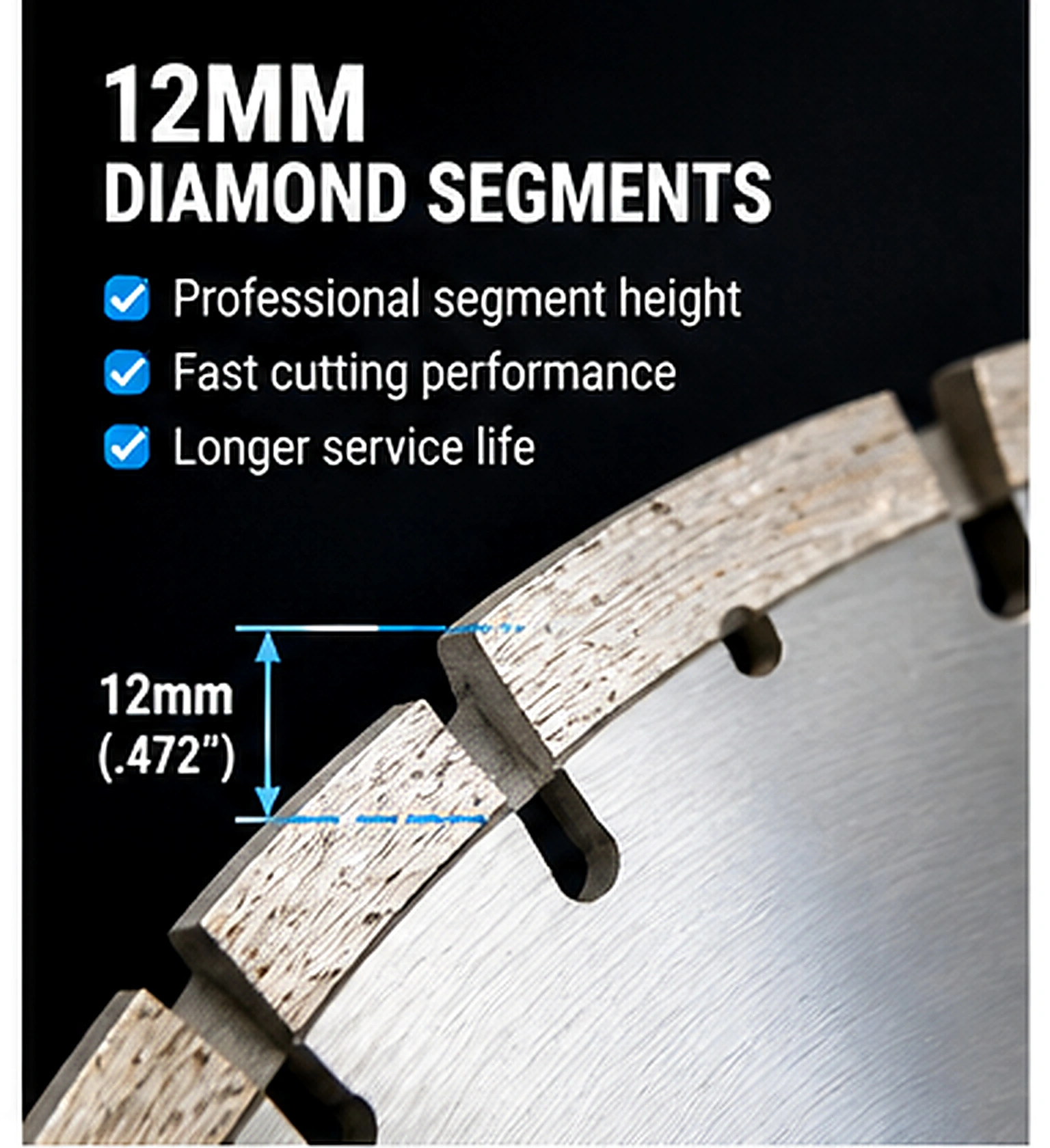

12mm Diamond Segments
Professional segment height provides dependable usable diamond depth and service life.
.140″ Cutting Width
Balanced professional kerf for hydraulic hand-saw concrete cutting.
Reinforced Concrete Capability
Engineered for demanding structural and reinforced-concrete applications.
Wet Cutting
Water cooling supports temperature control, slurry removal and consistent cutting performance.

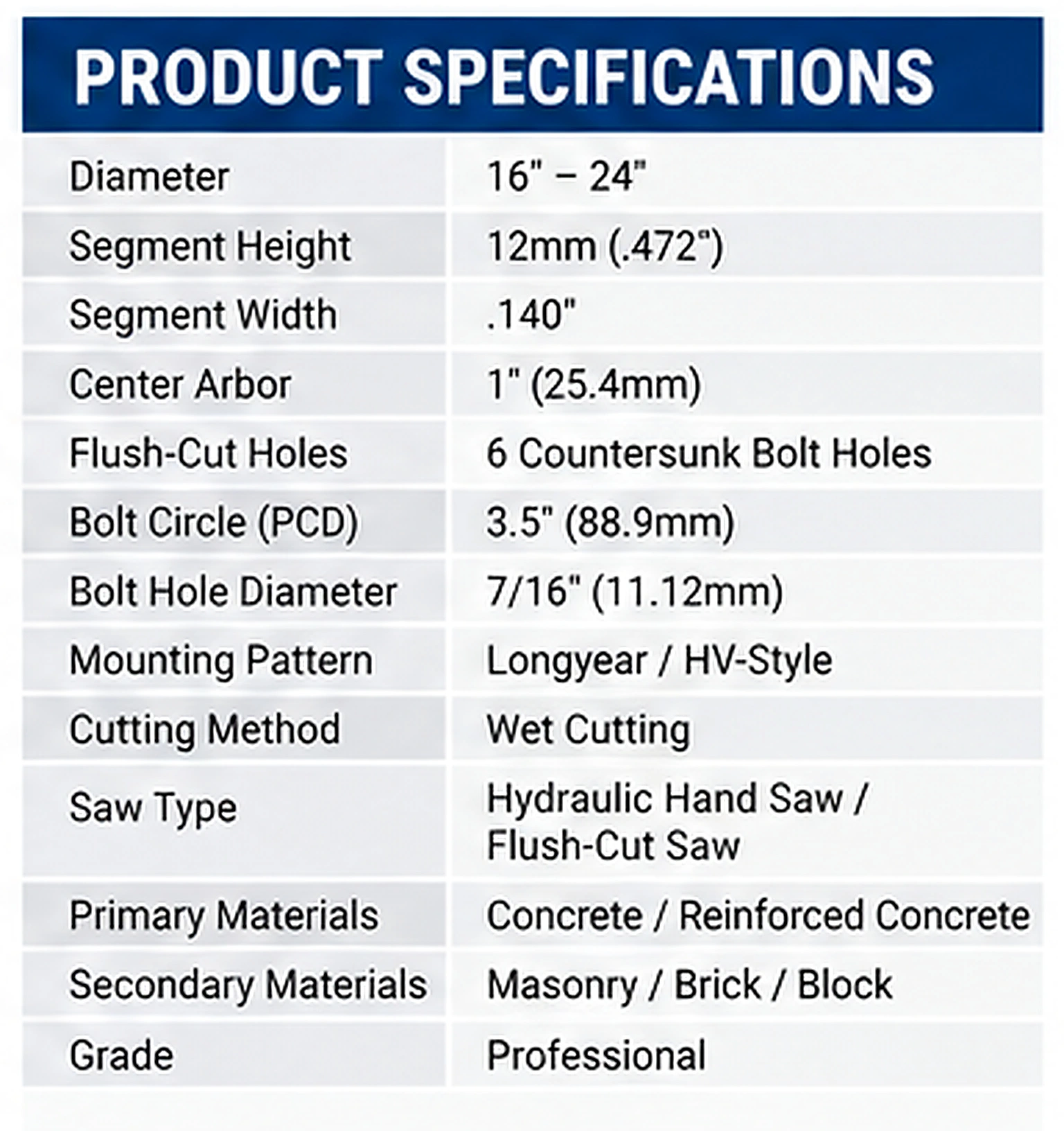

6. Final Specifications
| Specification | Value |
|---|---|

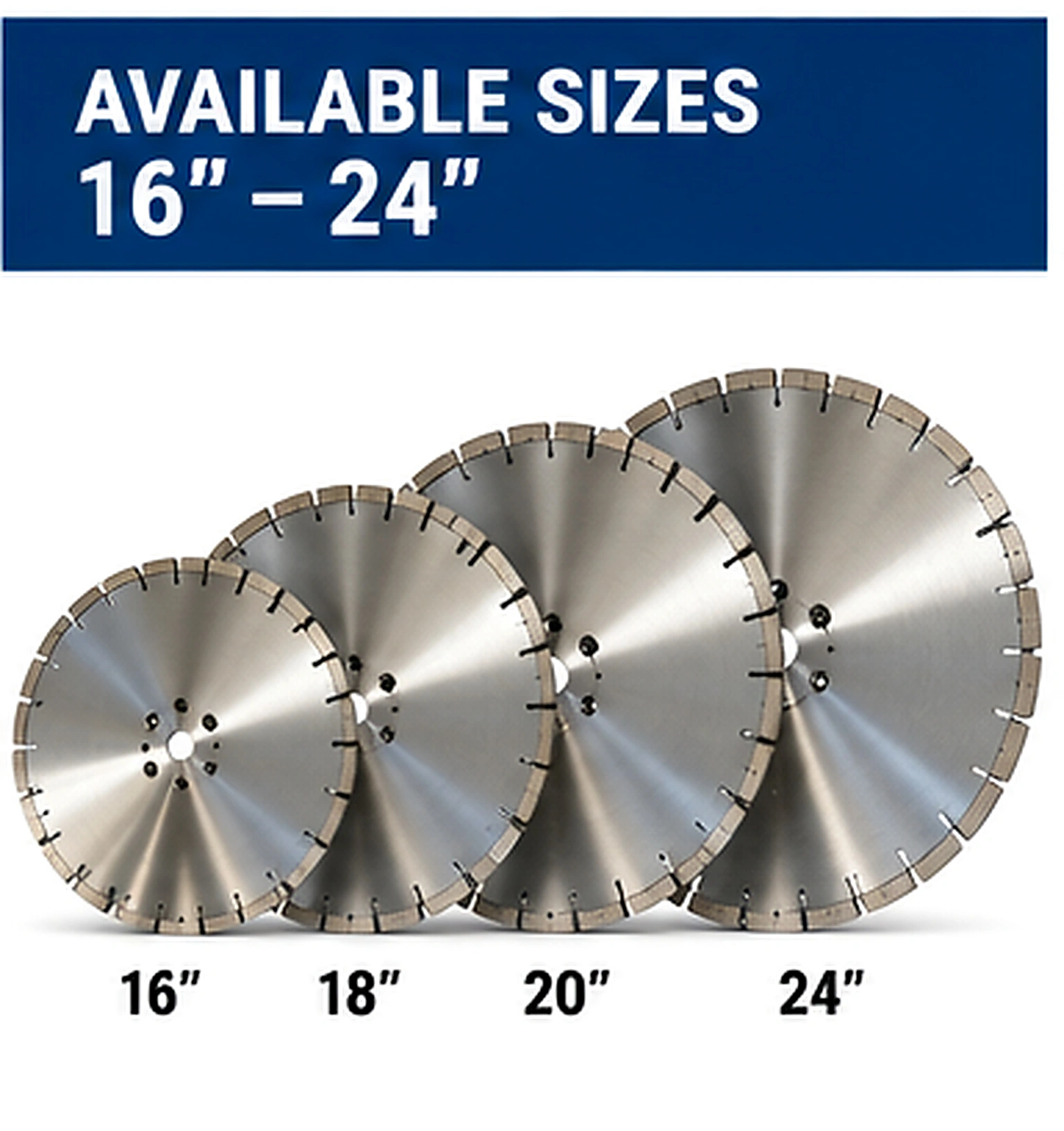

| Diameter Range | 16″–24″ |
| Segment Height | 12mm (.472″) |
| Segment Width | .140″ |
| Center Arbor | 1″ / 25.4mm |
| Flush-Cut Holes | 6 Countersunk Holes |
| Bolt Hole Diameter | 7/16″ / 11.12mm |
| Bolt Circle | 3.5″ / 88.9mm PCD |
| Mounting Pattern | Longyear / HV-Style |
| Cutting Method | Wet Cutting |
| Saw Type | Hydraulic Hand Saw / Flush-Cut Saw |
| Primary Materials | Concrete / Reinforced Concrete |
| Grade | Professional |
8. FAQ
What type of saw is this blade designed for?
It is designed for compatible hydraulic hand saws and hydraulic flush-cut saw systems.
Is this a standard arbor blade?
Yes. It includes a 1″ center arbor, plus a dedicated six-hole flush-cut mounting pattern.
What is the bolt pattern?
The blade uses six countersunk bolt holes on a 3.5″ (88.9mm) bolt circle.
What size are the bolt holes?
Each mounting hole is approximately 7/16″ (11.12mm).
Is the mounting pattern universal?
No. Hydraulic saw mounting patterns can vary. Verify that the saw flange uses the same Longyear / HV-style 88.9mm PCD pattern before ordering.
Can it cut reinforced concrete?
Yes. Reinforced concrete is one of the primary intended applications.
Is this blade for wet or dry cutting?
Wet cutting.
What is the segment height?
12mm (.472″)
What is the cutting width?
.140″
Professional Hydraulic Power. Precision Flush Cutting.
Built for Concrete. Engineered for Close-to-Surface Cutting.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Diameter | 16“, 18”, 20“, 24” |
| Segment Height | 12mm (.472″) |
| Segment Width | .140″ |
| Arbor | 1″ / 25.4mm |
| Flush-Cut Mount | 6 Countersunk Bolt Holes |
| Bolt Circle | 3.5″ / 88.9mm PCD |
| Bolt Hole Diameter | 7/16″ / 11.12mm |
| Mounting Pattern | Longyear / HV-Style |
| Saw Type | Hydraulic Hand Saw / Flush-Cut Saw |
| Cutting Method | Wet |
| Material | Concrete / Reinforced Concrete |
| Quality Grade | Professional |
