Professional Diamond Grinding Blade for Concrete Pavement – PC150 Compatible

1. Built for High-Production Pavement Grinding

The Alskar Professional Diamond Grinding Blade is designed for concrete pavement restoration applications where multiple diamond blades are stacked together on a grinding head to remove controlled amounts of surface material.

Unlike a conventional concrete saw blade that creates a single cut, pavement grinding blades operate as a system. Blade width, spacer width, bond formulation and grinding depth work together to create the required final pavement texture and profile.

The .125" blade width is a well-established professional pavement-grinding specification. Current professional grinding suppliers continue to offer .125" blades across multiple diameters for aggregate-specific grinding heads.

2. Primary Applications

Concrete Pavement Grinding
Highway Surface Profiling
Bump Grinding
Ride-Quality Restoration
Pavement Smoothness Correction
Bridge & Roadway Rehabilitation

3. PC150 Grinding System

Designed for Professional Multi-Blade Grinding Heads

Designed for Diamond Products PC150 and compatible professional pavement grinding systems using the corresponding mounting configuration.

Verify blade shaft and drive pattern before ordering.

4. .125″ Grinding Width

Standard Grinding Blade Width

Approx. .125″ (3.2mm)

The .125″ professional grinding width is designed for multi-blade pavement grinding heads where blade and spacer combinations control the finished pavement profile and surface texture.

4. 15mm Professional Segments

Segment Height

15mm (.591″)

15mm professional diamond segments provide substantial usable diamond depth for high-production pavement grinding and extended service life in demanding rehabilitation projects.

High Segment Height / Extended Usable Diamond Depth

6. Aggregate-Specific Bond System

PG01 — Hard Aggregate

Hard river gravel / dense concrete / hard aggregate pavement

PG02 — Medium Aggregate

General PCC pavement / medium aggregate

Standard General-Purpose Grinding Specification

PG03 — Soft / Abrasive Aggregate

Limestone / soft aggregate / abrasive concrete

HOW TO CHOOSE?

Hard Aggregate → Softer Bond
Soft / Abrasive Aggregate → Harder Bond

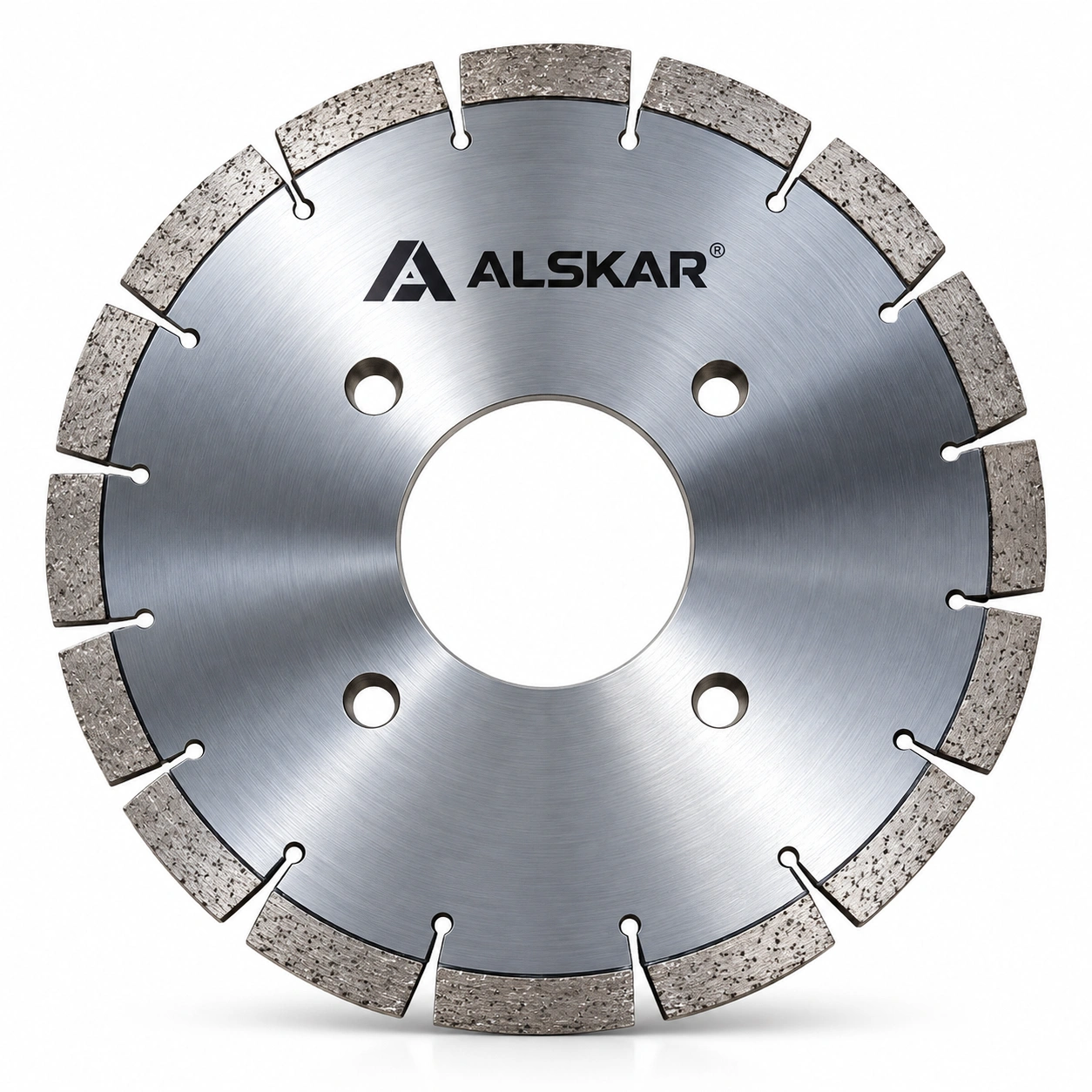

7. Grinding Head Configuration

Large Center Bore + Drive Holes

Machine-Specific Mounting

Center bore, keyway and drive-hole configurations can be manufactured to match professional pavement grinding equipment.

Please provide machine model, blade shaft dimensions or an existing blade drawing when requesting a quote.

8. Recommended Standard Specification

9. FAQ

What is a diamond grinding blade used for?
It is used in multi-blade pavement grinding heads to restore concrete pavement profile, smoothness and ride quality.

What diameter is available?
12″.

What is the blade width?
Approximately .125″.

What is the segment height?
15mm.

How many bond options are available?
Three: PG01 for hard aggregate, PG02 for medium aggregate and PG03 for soft or abrasive aggregate.

Is this blade compatible with PC150 grinding equipment?
It is designed for PC150 and compatible professional pavement grinding systems using the corresponding mounting configuration.

Is the mounting universal?
No. Center bore, drive-hole and shaft configurations should be confirmed for the grinding machine before ordering.
