Supreme PCD Coating Removal Shoes for Concrete Floor Grinders – Muti Mounting Systems

Supreme PCD Coating Removal Shoes for Professional Floor Grinders

The ALSKAR DIAMOND Supreme PCD Coating Removal Shoes are developed for professional flooring contractors, coating removal specialists, and concrete surface preparation applications.

These tools feature polycrystalline diamond cutting elements designed to scrape and remove suitable surface coatings, adhesives, and bonded residues from concrete floors.

Unlike conventional metal-bond diamond grinding shoes, PCD tools are primarily designed for coating removal rather than continuous grinding of bare concrete.

Supreme Quality Construction

The ALSKAR Supreme series is designed for professional floor preparation applications requiring suitable PCD cutting technology and mounting-specific tool configurations.

Five Mounting Systems

Choose from five available mounting configurations:

• Trapezoid Bolt-On
• Lavina / EDCO / Onfloor Compatible
• Redi Lock Compatible
• Scanmaskin ScanOn Compatible
• HTC EZchange Compatible

Each configuration uses the corresponding mounting plate and tool-holder connection.

Left-Hand & Right-Hand Options

Every mounting system is available in Left-Hand and Right-Hand versions.

Select the correct cutting direction according to the actual grinder head rotation and tooling requirements.

Professional Coating Removal Applications

The series is intended for suitable:

• Epoxy Coatings
• Paint and Resin Coatings
• Glue and Adhesive Residues
• Mastic and Bonded Materials
• Floor Coating Removal
• Concrete Surface Preparation

Flexible Quantity Supply

ALSKAR DIAMOND offers flexible purchasing quantities and packaging arrangements according to customer requirements.

Recommended Work Sequence

PCD Coating Removal → Metal-Bond Concrete Grinding → Surface Refinement or Required Coating Preparation

Actual removal performance depends on the coating composition, thickness, adhesion, substrate condition, PCD configuration, and floor grinder operating conditions.

Polycrystalline Diamond Cutting Technology & Mounting-Specific Design

Polycrystalline Diamond (PCD) tooling is designed to remove suitable floor coatings by scraping and shearing surface materials.

PCD cutting elements differ from conventional metal-bond diamond grinding segments in both cutting geometry and primary application.

Aggressive Coating Removal

PCD cutting elements engage coatings and bonded surface residues during floor grinding operations.

They are commonly selected for applications involving suitable epoxy coatings, glue, adhesives, mastic, and paint.

Different PCD Cutter Arrangements

The ALSKAR PCD product family includes multiple cutter layouts.

The exact PCD element count, cutting-edge position, backing plate shape, and support-segment arrangement depend on the selected mounting system.

PCD with Support Segments

Some ALSKAR configurations include additional support or wear bars.

These components can help moderate cutting engagement and reduce excessive penetration into the concrete compared with otherwise similar unsupported PCD cutting arrangements.

However, PCD tools may still leave scratches, grooves, or a coarse surface profile.

PCD-Only Cutting Arrangements

Other configurations use multiple PCD cutting elements without a separate support bar.

The number and position of cutting elements should be checked against the selected product variation.

Direction-Specific Cutting Geometry

The PCD cutting edges are arranged for a particular rotation direction.

Correct directional selection is necessary for appropriate cutting engagement and to reduce the risk of premature tool damage.

Surface Preparation After Coating Removal

Once the coating has been removed, select suitable metal-bond diamond grinding tools for additional concrete preparation.

PCD tools are not substitutes for finishing or polishing abrasives.

Technical Note: Cutter dimensions, wear-bar specifications, and mounting dimensions vary by product configuration and should be confirmed before installation.

Five PCD Mounting Systems for Concrete Floor Grinders

ALSKAR DIAMOND Supreme PCD Coating Removal Shoes are offered in five mounting configurations to support different professional floor grinding systems.

Each variation has a dedicated backing plate and cutting-element arrangement.

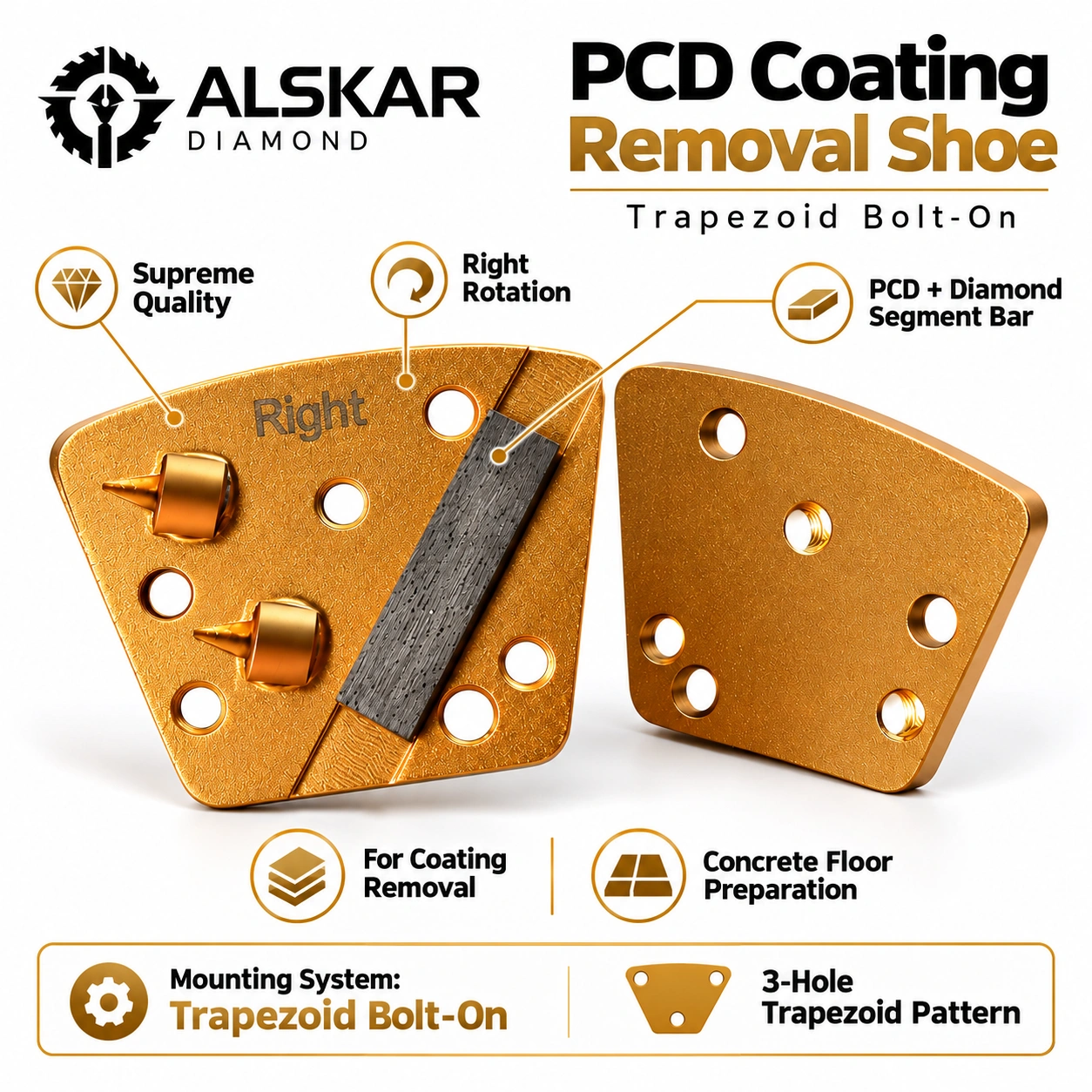

1. Trapezoid Bolt-On PCD

Mounting System: Trapezoid Bolt-On

Reference Design: Multi-hole trapezoidal steel plate with two PCD cutting elements and a rectangular support or wear bar.

Available Directions: Left-Hand / Right-Hand

Designed for matching bolt-on trapezoid tool holders.

Confirm the mounting-hole pattern, fasteners, and tool holder before ordering.

2. Lavina / EDCO / Onfloor Compatible PCD

Mounting System: Lavina / EDCO / Onfloor Compatible

Reference Design: Gold trapezoidal backing with two raised PCD cutting elements and a rectangular support bar.

Available Directions: Left-Hand / Right-Hand

Supplied for selected Lavina, EDCO Magna-Trap, and Onfloor grinding systems equipped with the appropriate mounting holders or adapters.

Confirm the exact machine and holder configuration before ordering.

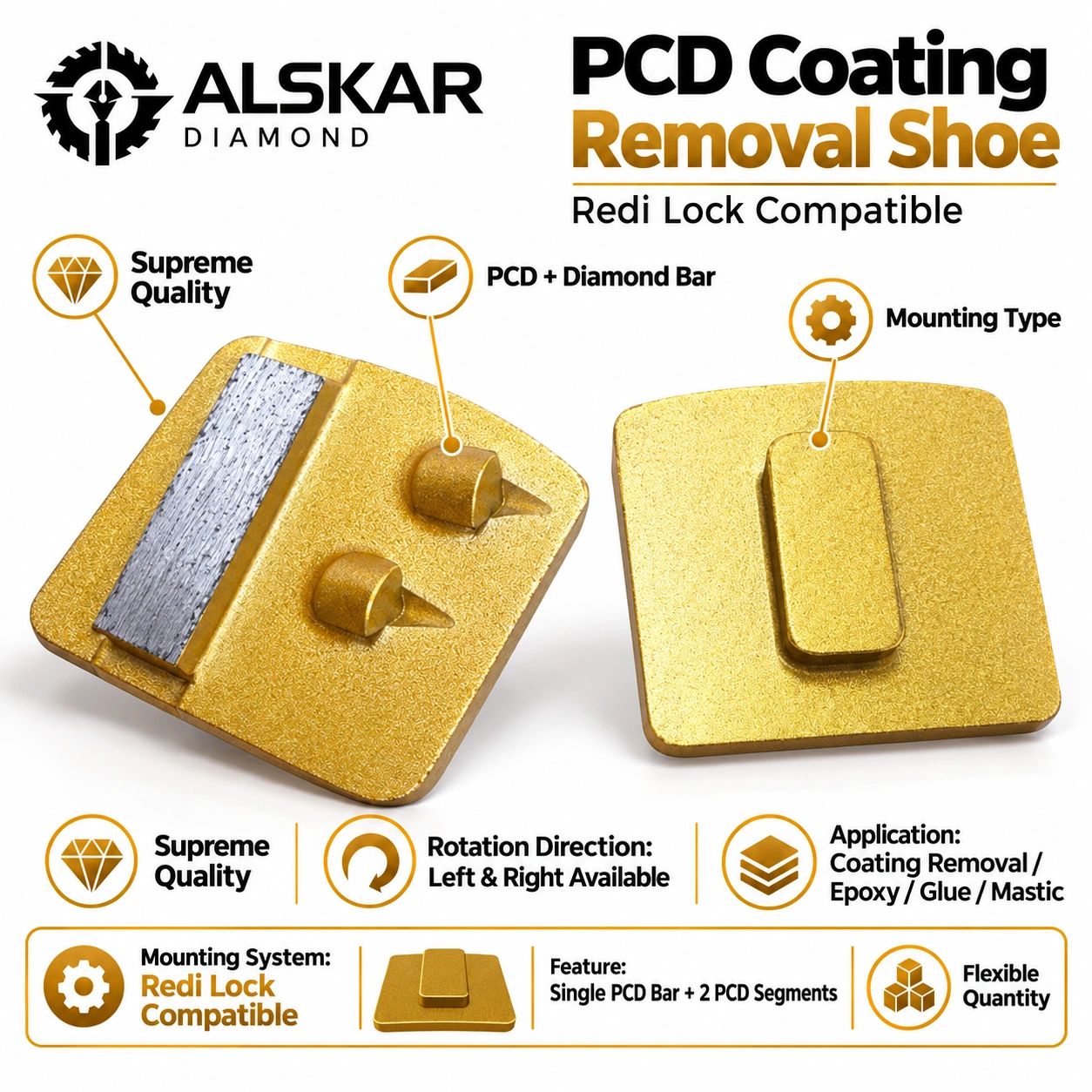

3. Redi Lock Compatible PCD

Mounting System: Redi Lock Compatible

Reference Design: Two PCD cutting elements with a rectangular support bar and a dedicated rear quick-change locking profile.

Available Directions: Left-Hand / Right-Hand

Designed for matching Redi Lock tool holders.

Do not assume compatibility with HTC EZchange, ScanOn, or other quick-change systems.

4. Scanmaskin ScanOn Compatible PCD

Mounting System: Scanmaskin ScanOn Compatible

Reference Design: Gold, near-square tool plate with three raised PCD cutting elements and a single rectangular raised mounting connection on the back.

Available Directions: Left-Hand / Right-Hand

Designed for matching Scanmaskin ScanOn tool holders.

This configuration does not use the three-hole Lavina trapezoid mounting plate and should not be confused with other mounting systems.

5. HTC EZchange Compatible PCD

Mounting System: HTC EZchange Compatible

Reference Design: Dedicated EZchange-style backing with raised PCD cutting elements and a rectangular support segment.

Available Directions: Left-Hand / Right-Hand

Intended for matching HTC EZchange tool holders on selected professional floor grinders.

The actual holder and attachment profile must be verified before installation.

Important Mounting Information

The five mounting systems are not automatically interchangeable.

Before ordering, check:

• Grinder brand and model
• Installed tool holder
• Mounting profile and dimensions
• Required adapters or fasteners
• Grinding head rotation direction
• Tools required per grinding head

ALSKAR DIAMOND provides aftermarket compatible tooling. Compatibility must be verified against the actual equipment configuration.

Left-Hand & Right-Hand PCD Rotation Selection Guide

PCD coating removal shoes are direction-sensitive because their cutting elements are positioned to engage the surface in a specific rotational direction.

The ALSKAR Supreme PCD series provides both Left-Hand and Right-Hand variations for all five mounting systems.

Left-Hand PCD

Select the Left-Hand configuration when the actual grinder tool head requires left-hand directional PCD tooling.

Right-Hand PCD

Select the Right-Hand configuration when the actual grinder tool head requires right-hand directional PCD tooling.

Important Direction Reference

Left-Hand and Right-Hand descriptions must be interpreted according to the equipment and tooling manufacturer’s reference convention.

Do not assume that the rotation appears the same when viewed from above, underneath, or from the operator position.

Multi-Head Floor Grinders

Some floor grinding machines use counter-rotating tool heads.

They may require different PCD directions on different heads.

Check the complete tooling arrangement before purchasing a replacement set.

Rotation Selection Checklist

1. Confirm the grinder manufacturer and model.
2. Identify the installed tool holder.
3. Check the actual rotational direction of each grinding head.
4. Confirm the required Left-Hand or Right-Hand tooling according to the manufacturer’s instructions.
5. Select the matching PCD mounting-system variation.
6. Verify tool retention before operating the grinder.

Incorrect Rotation

Installing direction-sensitive PCD tooling incorrectly may reduce cutting efficiency, accelerate wear, and damage the cutting elements.

Ordering Assistance

If the required direction is uncertain, contact ALSKAR DIAMOND with the grinder model, existing tool photos, and manufacturer rotation information before ordering.

PCD Coating Removal Applications & Recommended Materials

ALSKAR DIAMOND Supreme PCD Coating Removal Shoes are designed for professional removal of suitable surface coatings and adhesive materials from concrete floors.

Epoxy Coating Removal

Suitable PCD cutting configurations can remove epoxy floor coatings during renovation and surface preparation projects.

The appropriate tool depends on coating thickness, hardness, and adhesion.

Glue & Adhesive Removal

PCD tooling can be used to remove suitable flooring adhesives and glue residues from concrete substrates.

Mastic Removal

Selected PCD cutting configurations are suitable for removing bonded mastic and adhesive build-up.

Paint & Resin Coating Removal

PCD tools may be used to remove paint, resin coatings, and other compatible surface finishes.

Concrete Floor Restoration

PCD cutting tools can help remove existing floor coverings and residues before conventional concrete grinding or restoration work.

Preparation Before New Coatings

After removing the existing coating, further concrete grinding may be needed to achieve the surface profile required by the new coating system.

Typical Applications

• Epoxy Floor Coating Removal
• Adhesive and Glue Residue Removal
• Mastic Removal
• Paint and Resin Coating Removal
• Commercial Floor Renovation
• Industrial Concrete Floor Preparation
• Surface Preparation Before Grinding
• Surface Preparation Before New Coating Installation

Important Application Notes

PCD tools can be aggressive and may leave scratches or grooves in the concrete.

Test a small area before full-scale coating removal.

For older or unknown coatings, evaluate possible hazardous constituents before disturbing the material and follow applicable testing and removal requirements.

PCD tools are not intended for final concrete polishing.

Floor Grinder Compatibility & Installation Guide

ALSKAR DIAMOND Supreme PCD Coating Removal Shoes are available in five mounting configurations for selected professional floor grinders.

Equipment Compatibility Reference

Important: Compatibility depends on the exact machine, holder, attachment profile, and any installed adapters.

Before Ordering

Confirm:

• Grinder manufacturer and exact model
• Installed mounting system
• Tool holder profile and dimensions
• Required Left-Hand or Right-Hand direction
• Number of PCD tools per grinding head
• Coating type and removal requirements

Safe Installation

1. Disconnect or isolate the grinder from its power source before changing tooling.
2. Inspect PCD cutting elements and backing plates for damage.
3. Verify that the selected mounting profile matches the actual holder.
4. Confirm the correct PCD rotation direction.
5. Install the tooling according to the machine manufacturer’s instructions.
6. Make sure the tools are fully seated and securely retained.
7. Keep required machine guards in place.
8. Use appropriate personal protective equipment and dust or exposure controls.
9. Avoid impacts with exposed fasteners, embedded obstructions, or uneven slab discontinuities.
10. Stop operation if abnormal vibration, tool loosening, or cutting-element damage occurs.

Wet & Dry Grinding

Use only an operating method approved for the specific tooling and grinding machine.

The wet/dry rating of this ALSKAR series should be confirmed against the final product specifications.

Need Help Confirming Compatibility?

Contact ALSKAR DIAMOND with your grinder model and a clear photo of the existing tool holder.

ALSKAR DIAMOND supplies aftermarket compatible diamond tooling and is not affiliated with Lavina, EDCO, Onfloor, Husqvarna, HTC, or Scanmaskin.

ALSKAR DIAMOND Supreme Quality PCD Tools & Flexible Supply

ALSKAR DIAMOND supplies professional diamond tools for concrete cutting, core drilling, grinding, polishing, and construction surface preparation.

Our Supreme PCD Coating Removal Shoes offer multiple mounting configurations for professional floor coating removal applications.

Supreme Quality

The Supreme series is positioned for professional contractors requiring PCD coating removal tooling with appropriate cutting structures and machine-specific mounting connections.

Five Available Mounting Systems

• Trapezoid Bolt-On
• Lavina / EDCO / Onfloor Compatible
• Redi Lock Compatible
• Scanmaskin ScanOn Compatible
• HTC EZchange Compatible

Ten Available Variations

Each mounting system is available in Left-Hand and Right-Hand configurations.

This provides a total of ten ordering variations.

Flexible Quantity

ALSKAR DIAMOND offers flexible ordering quantities to accommodate different purchasing requirements.

Flexible Packaging

Packaging arrangements can be tailored according to customer order quantities.

Contractor & Wholesale Supply

Suitable for concrete flooring contractors, coating removal specialists, equipment dealers, and diamond tool distributors.

Purchasing Assistance

To request the correct PCD tools, please provide:

• Equipment brand and model
• Mounting system
• Required rotation direction
• Coating type and approximate thickness
• Purchase quantity

Contact ALSKAR DIAMOND for product selection assistance, flexible packaging, and wholesale quotations.
