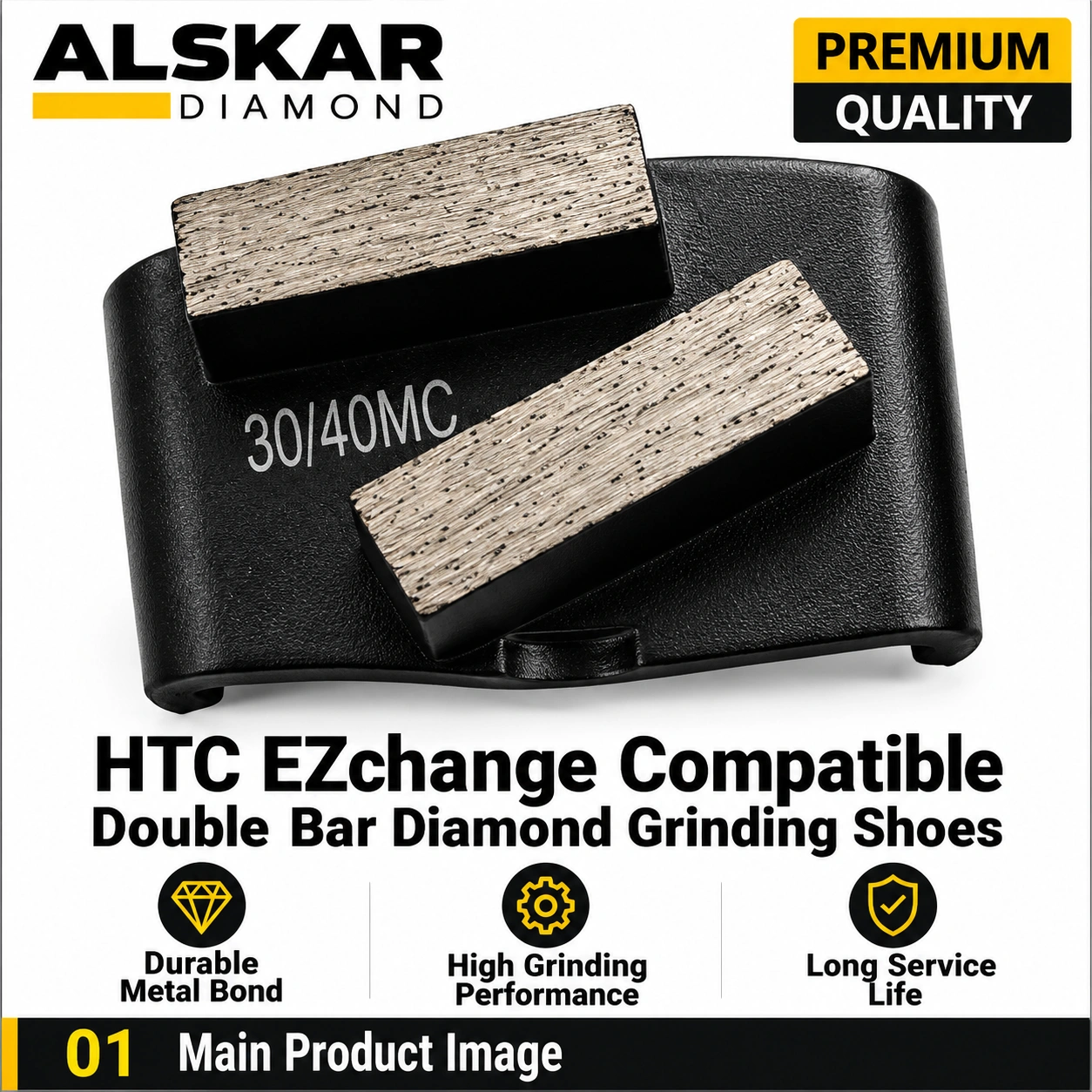

Premium HTC EZchange Diamond Grinding Shoes Compatible Double Bar for Concrete Floors
The ALSKAR DIAMOND Premium HTC EZchange Compatible Double Bar Diamond Grinding Shoes are designed for professional concrete floor grinding, leveling, and surface preparation.
Featuring two straight rectangular metal-bonded diamond segments on a durable black steel backing plate, these grinding shoes provide distributed abrasive contact for consistent concrete grinding.
The backing plate features a side-wing quick-change connection designed for compatible HTC EZchange tool holders used on selected HTC and Husqvarna floor grinders.
Available in 18/20, 30/40, and 60/80 grit, with Soft, Medium, and Hard bond options for every grit, the series offers nine configurations for different concrete conditions and grinding stages.
Key Features
- Premium Quality: Professional-grade diamond grinding tools for concrete floor preparation.
- Double Bar Design: Two straight rectangular metal-bonded diamond segments.
- HTC EZchange Compatible: Side-wing quick-change mounting for matching grinder holders.
- Three Diamond Grits: 18/20 for coarse grinding, 30/40 for general grinding, and 60/80 for finer surface refinement.
- Three Bond Options: Soft for hard concrete, Medium for medium-hard concrete, and Hard for soft or abrasive concrete.
- Nine Available Configurations: All three grit selections are available in Soft, Medium, and Hard bond.
- Black Steel Backing: Matching black front and rear mounting surfaces.
- Grinder Compatibility: Designed for selected HTC and Husqvarna grinding systems equipped with compatible EZchange holders.
- Flexible Packaging: Order quantities and packaging arrangements according to customer requirements.
Quality Grade: Premium
Mounting System: HTC EZchange Compatible
Segment Design: Double Bar — 2 Diamond Segments
Diamond Grit: 18/20 | 30/40 | 60/80
Bond Hardness: Soft | Medium | Hard
Applications: Concrete Floor Grinding, Leveling & Surface Preparation
Important: Verify the exact grinder model and installed EZchange tool holder before ordering. ALSKAR DIAMOND products are aftermarket compatible tooling, not original HTC or Husqvarna equipment.
Premium HTC EZchange Diamond Grinding Shoes Compatible Double Bar
The ALSKAR DIAMOND Premium HTC EZchange Diamond Grinding Shoes Compatible Double Bar are developed for professional concrete grinding contractors, flooring specialists, and surface preparation applications.
Each grinding shoe features two straight rectangular metal-bonded diamond segments mounted on a black steel backing plate.
The Double Bar design distributes grinding contact across two diamond segments, making it a practical choice for general concrete grinding, surface leveling, and progressive floor preparation.
Designed for HTC EZchange Tool Holders
The backing plate incorporates a side-wing quick-change connection intended for use with compatible HTC EZchange-style holders.
This connection differs from conventional bolt-on grinding shoes and Redi Lock tooling.
Correct holder identification is essential before installing replacement grinding tools.
Premium Metal-Bonded Diamond Construction
The diamond segments are manufactured using metal-bonded diamond abrasive technology.
As the metal matrix wears during grinding, fresh diamond particles are progressively exposed to continue the cutting process.
Nine Grit and Bond Configurations
The series is available in three diamond grit ranges:
- 18/20 Grit: Coarse concrete grinding
- 30/40 Grit: General-purpose grinding
- 60/80 Grit: Finer metal-bond surface preparation
Each grit is offered in Soft, Medium, and Hard bond options to accommodate different concrete conditions.
Professional Applications
Suitable for cured concrete floor leveling, restoration, and preparation before subsequent grinding, polishing, or coating applications.
Actual grinding results depend on the concrete substrate, selected grit and bond, grinder characteristics, and operating conditions.

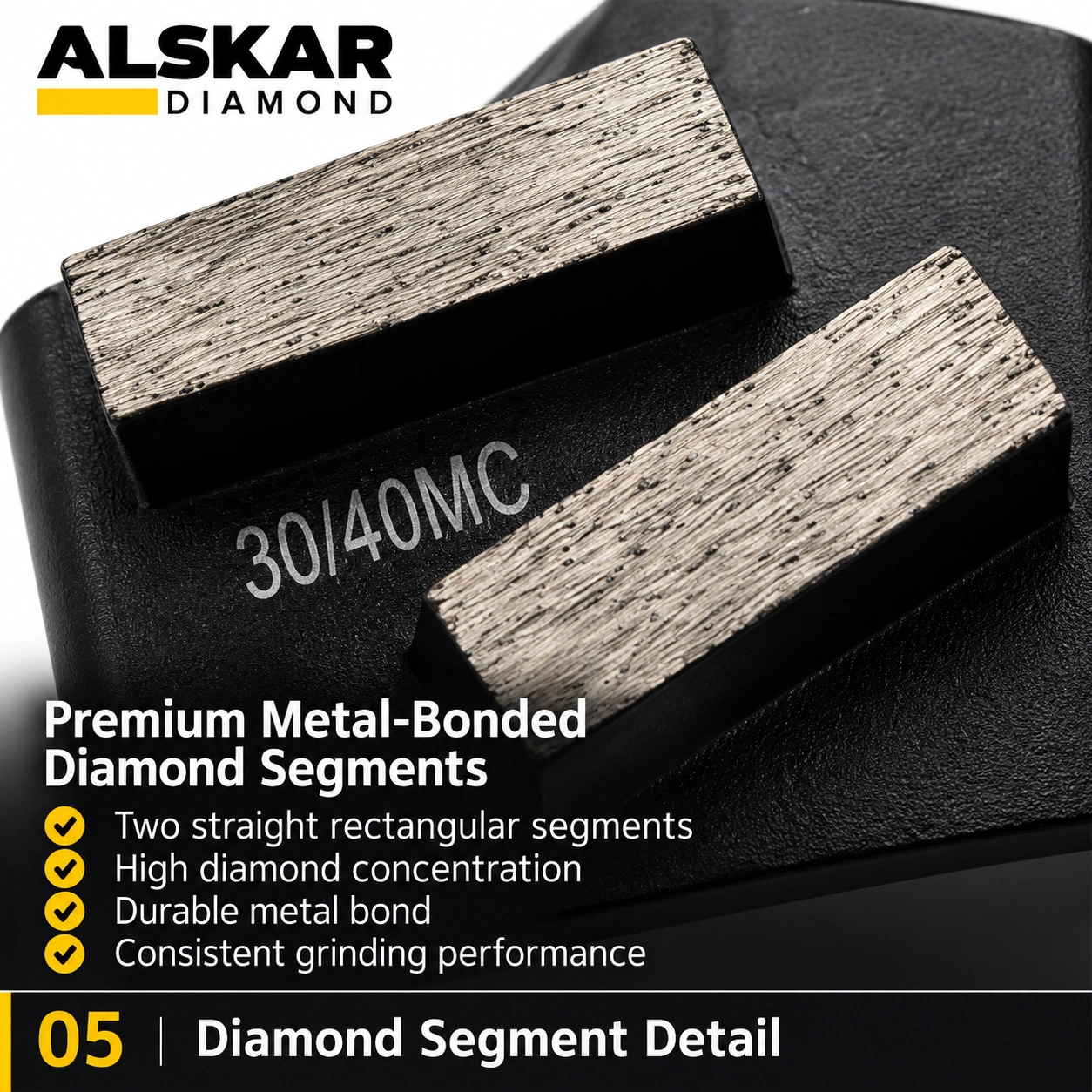

Double Bar Diamond Segment Design for Consistent Concrete Grinding
The ALSKAR HTC EZchange Compatible Grinding Shoe features two straight rectangular metal-bonded diamond segments attached to a black steel backing plate.
Dual Diamond Grinding Segments
Two separate diamond grinding segments distribute abrasive contact across the working area.
Compared with an otherwise similar single-segment design, a Double Bar configuration generally offers a larger combined grinding contact area.
This makes it suitable for many general-purpose concrete floor grinding and leveling applications.
Straight Rectangular Segment Geometry
The two rectangular diamond segments are positioned at different angles on the backing plate.
The layout provides two distinct grinding contact areas for professional concrete surface preparation.
Premium Metal-Bonded Diamond
Industrial diamond abrasive particles are held within a metal-bond matrix.
The gradual wear of the matrix exposes new diamond cutting points during operation.
Grinding performance and segment wear depend on the bond hardness, diamond grit, concrete abrasiveness, and machine operating conditions.
Open Grinding Layout
The space between the two grinding bars allows grinding residue to move away from the active contact areas.
Durable Black Steel Backing
The steel backing supports the diamond segments and incorporates side-wing mounting features for a matching quick-change tool holder.
Product Highlights
- Two straight rectangular diamond grinding segments
- Premium metal-bonded diamond construction
- Distributed abrasive contact
- Black steel backing plate
- HTC EZchange-compatible mounting
- Nine grit and bond configurations
The design is intended for concrete floor grinding, surface leveling, and progressive surface preparation.
Diamond Grit Selection Guide – 18/20, 30/40 & 60/80
Selecting the correct diamond grit helps control grinding aggressiveness, scratch depth, and the progression between concrete preparation stages.
ALSKAR Premium HTC EZchange Compatible Double Bar Grinding Shoes are available in three grit ranges.
18/20 Grit – Coarse Concrete Grinding
18/20 grit is intended for initial grinding where relatively aggressive material removal is required.
Typical Applications:
- Initial concrete floor grinding
- Concrete high-spot removal
- Coarse surface leveling
- Preparation of uneven cured concrete
- Starting stages of floor restoration
30/40 Grit – General-Purpose Concrete Grinding
30/40 grit is a versatile selection for regular concrete grinding and surface preparation.
Typical Applications:
- General concrete floor grinding
- Reducing coarse grinding marks
- Routine surface leveling
- Concrete floor restoration
- Preparation for subsequent finer grinding
60/80 Grit – Finer Metal-Bond Surface Refinement
60/80 grit is intended for additional surface refinement after coarse or general grinding.
Typical Applications:
- Reducing scratches from previous grinding stages
- Intermediate metal-bond grinding
- Smoothing cured concrete
- Preparation before compatible hybrid or resin-bond polishing stages
Recommended Grinding Progression
A common progression is:
18/20 → 30/40 → 60/80
The appropriate starting grit and number of steps depend on the concrete condition, required surface profile, and final finishing system.
Not every floor requires all three grit stages.
Selection Tip: Choose grit according to the grinding stage and bond hardness according to the concrete’s hardness and abrasiveness.
Soft, Medium & Hard Diamond Bond Selection
Selecting the appropriate bond hardness helps maintain efficient grinding action and suitable diamond segment wear.
In metal-bonded diamond tooling, the bond matrix gradually wears to expose fresh abrasive particles.
As a general guideline, hard concrete typically requires a softer bond, while soft or highly abrasive concrete generally requires a harder bond.
Soft Bond – Hard Concrete
Soft Bond tooling is designed to expose fresh diamond abrasive more readily when grinding hard or dense concrete.
Typical Conditions:
- Hard cured concrete
- Dense concrete floors
- Concrete that causes harder-bond tooling to glaze
Medium Bond – Medium-Hard Concrete
Medium Bond is a versatile option for concrete with moderate hardness and abrasiveness.
Typical Conditions:
- General-purpose concrete grinding
- Medium-hard concrete
- Commercial and industrial floor preparation
- Routine surface restoration
Hard Bond – Soft or Abrasive Concrete
Hard Bond tooling helps resist rapid matrix wear when working on softer or highly abrasive concrete.
Typical Conditions:
- Soft cured concrete
- Abrasive concrete surfaces
- Floors that cause excessive diamond segment wear
Bond Selection Summary
| Concrete Condition | Recommended Bond |
|---|---|
| Hard Concrete | Soft Bond |
| Medium-Hard Concrete | Medium Bond |
| Soft / Abrasive Concrete | Hard Bond |
Troubleshooting
Tool glazing or poor cutting: A softer bond may improve diamond exposure.
Excessive segment wear: A harder bond may help reduce premature matrix wear.
Grinding scratches too coarse: Move to an appropriate finer grit after the required material removal is complete.
Concrete aggregate, grinder weight, grinding speed, and surface condition also affect the best bond selection.

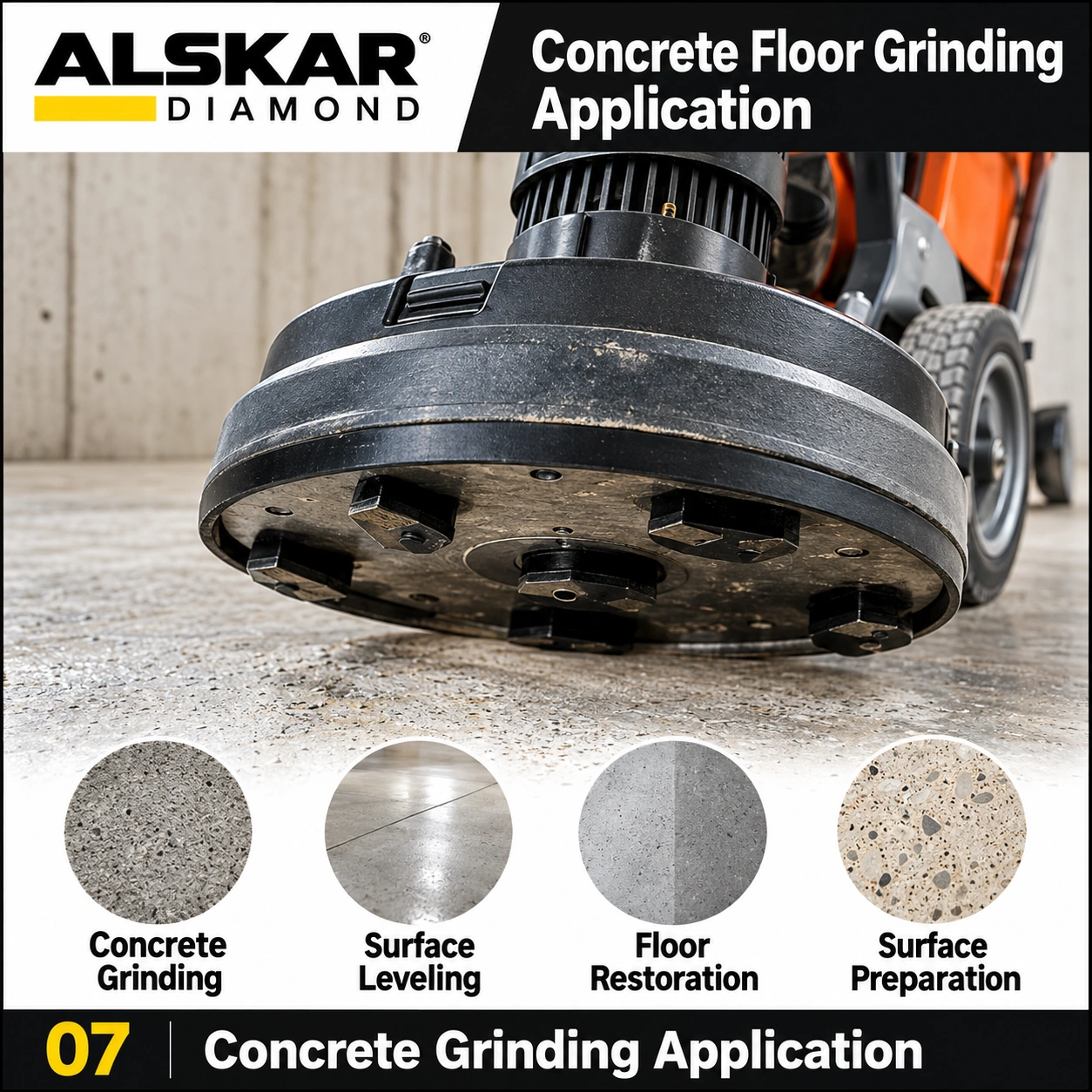

Concrete Grinding Applications & Recommended Materials
The ALSKAR Premium HTC EZchange Compatible Double Bar Diamond Grinding Shoes are intended for professional concrete floor grinding, leveling, and substrate preparation.
Concrete Floor Leveling
Suitable for reducing surface irregularities and grinding elevated areas of cured concrete floors.
General Concrete Grinding
Designed for routine floor grinding in commercial, industrial, and renovation projects.
Concrete Surface Restoration
Useful for preparing worn, uneven, or repaired concrete surfaces before additional finishing operations.
Progressive Metal-Bond Grinding
The 18/20, 30/40, and 60/80 grit options support different stages of concrete grinding and surface refinement.
Preparation Before Polishing
Suitable for early and intermediate grinding stages before transitioning to appropriate hybrid, ceramic, or resin-bond polishing systems.
Preparation Before Coatings
Can be used to prepare suitable concrete substrates before coating or overlay applications.
The achieved surface profile must meet the coating or overlay manufacturer’s specifications.
Recommended Materials
- Cured Concrete
- Commercial Concrete Floors
- Industrial Concrete Floors
- Residential Concrete Slabs
- Compatible Cement-Based Surfaces
- Suitable Cementitious Overlays
Typical Applications
- Concrete Floor Grinding
- Concrete Surface Leveling
- Concrete High-Spot Removal
- Concrete Restoration
- Surface Preparation
- Progressive Metal-Bond Grinding
- Preparation Before Concrete Polishing
- Preparation Before Coating Installation
Application Note: Thick epoxy coatings, flexible adhesives, heavy mastic, and similar difficult removal applications generally require specialized PCD tooling.
These metal-bond diamond grinding shoes are not intended to produce a final polished concrete finish on their own.

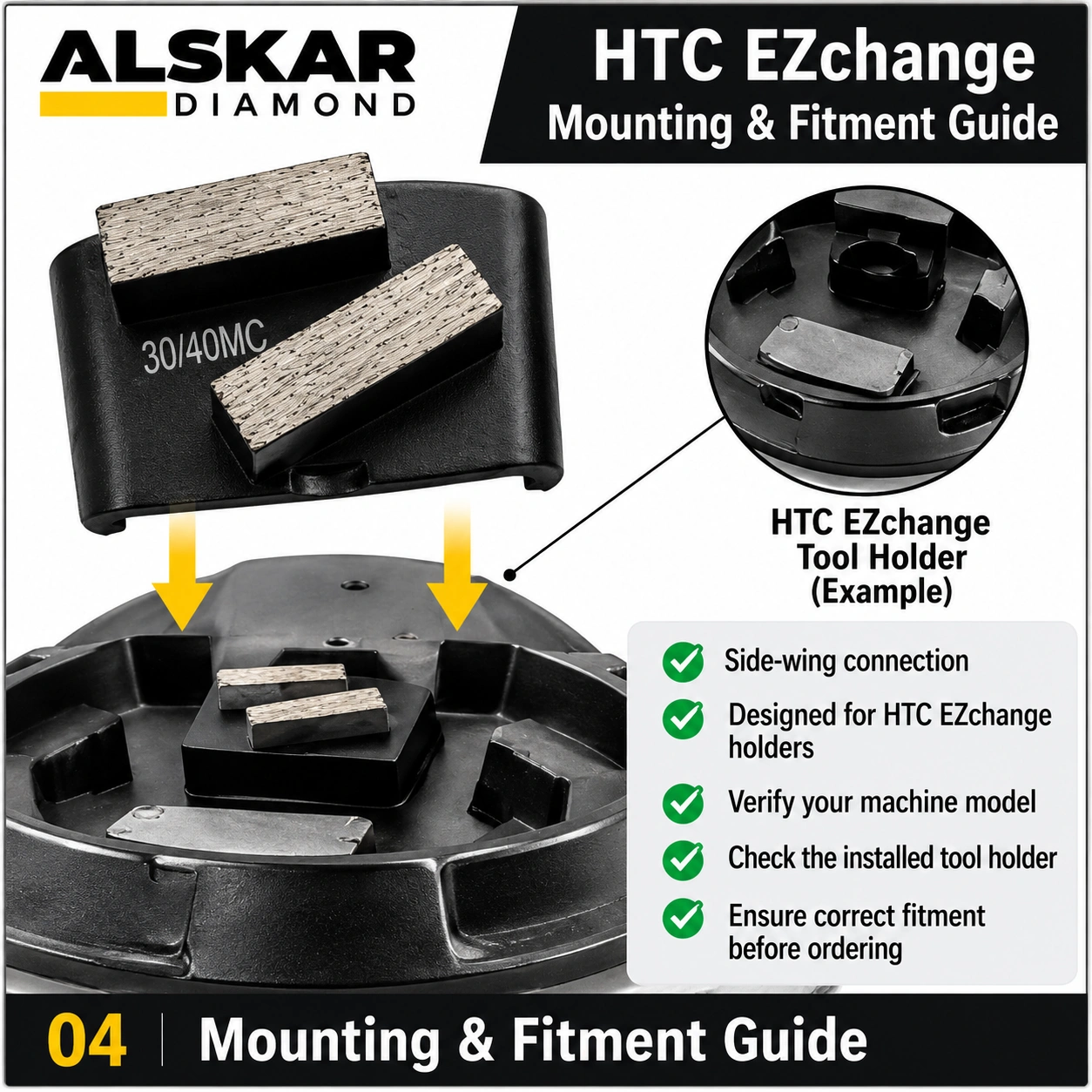

HTC EZchange Mounting & Floor Grinder Compatibility
The ALSKAR Premium HTC EZchange Compatible Double Bar Diamond Grinding Shoes feature a black steel backing plate with a side-wing connection profile designed for compatible EZchange tool holders.
Compatible Mounting System
HTC EZchange Compatible – Wing-Style Quick-Change Connection
This mounting system differs from conventional bolt-on grinding shoes and Husqvarna Redi Lock tooling.
Common Grinder Brands & Reference Models
Comparable HTC EZchange grinding shoes are offered in the market for selected grinders, including:
| Grinder Series | Market Reference Models |
|---|---|
| HTC Greyline | 270, 400, 450, 550 |
| HTC Professional | 270EG, 800RXP, 950RX, 1500IXT |
| Husqvarna | Selected floor grinders equipped with suitable EZchange Wing holders |
Important: These are market reference models. Fitment with this specific ALSKAR backing plate must be verified using the actual machine and installed tool holder.
Verify Your Tool Holder
Before ordering, confirm:
- Grinder manufacturer and exact model
- Installed tool holder or grinding plate
- EZchange wing connection profile
- Mounting and locking arrangement
- Any installed adapters
HTC EZchange vs. Redi Lock
HTC EZchange and Redi Lock are different tool attachment systems.
Older HTC grinders may also use bolt-on tooling.
Do not select grinding shoes based only on the machine brand or model name.
Installation & Safety
- Disconnect the grinder from its power supply before replacing tooling.
- Allow hot grinding tools to cool before handling.
- Inspect grinding shoes and tool holders for damage.
- Follow the machine manufacturer’s approved tool installation procedure.
- Ensure all tools are properly seated and securely retained.
- Never force an incompatible grinding shoe into the holder.
- Use appropriate dust extraction and silica exposure controls.
- Use wet grinding only when both the tooling and machine are approved for wet operation.
- Stop operation if abnormal vibration, loosening, or tool damage occurs.
Need Help Confirming Compatibility?
Contact ALSKAR DIAMOND with your grinder model and a clear photograph of your existing tool holder.
ALSKAR DIAMOND HTC EZchange Compatible Grinding Shoes are aftermarket compatible tooling and are not original HTC or Husqvarna products.
ALSKAR DIAMOND Premium Quality & Flexible Supply
ALSKAR DIAMOND supplies professional diamond tools for concrete cutting, core drilling, grinding, polishing, and construction surface preparation.
Our Premium HTC EZchange Compatible Double Bar Diamond Grinding Shoes provide a practical metal-bond grinding solution for flooring contractors and professional concrete surface preparation applications.
Premium Quality Product Series
The Premium series combines professional metal-bonded diamond construction with application-specific grit and bond selection.
Nine Available Configurations
Choose from:
- 18/20 Grit — Soft, Medium, Hard Bond
- 30/40 Grit — Soft, Medium, Hard Bond
- 60/80 Grit — Soft, Medium, Hard Bond
These nine combinations allow contractors to select grinding tools for different concrete hardness conditions and grinding stages.
Flexible Order Quantities
ALSKAR DIAMOND can arrange order quantities according to customer requirements.
Flexible Packaging
Packaging can be coordinated according to project quantities and customer purchasing requirements.
Contractor & Wholesale Supply
Suitable for professional flooring contractors, equipment dealers, and diamond tool distributors.
Customers can request mixed grit and bond combinations for different grinding requirements.
Professional Tool Selection Support
For assistance with product selection, please provide:
- Floor grinder manufacturer and model
- Installed EZchange tool holder
- Concrete hardness or abrasiveness
- Required diamond grit
- Preferred bond hardness
- Purchasing quantity
Contact ALSKAR DIAMOND for mounting compatibility assistance, flexible packaging, and wholesale quotations.
HTC EZchange Floor Grinder Compatibility Guide
ALSKAR Premium HTC EZchange Compatible
Double Bar Diamond Grinding Shoes
are designed for matching wing-style
EZchange quick-change tool holders.
The following machine models are
industry references for comparable
HTC EZchange diamond grinding tooling.
| Grinder Series | Reference Models | Fitment Status |
|---|---|---|
| HTC Greyline | 270 / 400 / 450 / 550 | Verify EZchange Holder |
| HTC Professional | 270EG / 800RXP / 950RX / 1500IXT | Verify EZchange Holder |
| Husqvarna | Selected EZchange Wing-equipped floor grinders |
Verify Machine & Holder |
Important Compatibility Notice:
The models above are market references
for comparable EZchange tooling.
Fitment with this specific ALSKAR
backing plate has not been
individually verified for every
machine or holder configuration.
Older HTC bolt-on tools,
HTC EZchange tools and Redi Lock
tools have different mounting
arrangements.
Always verify the actual grinder
model, installed holder,
connection profile and any
required adapters.
Need Help Confirming Compatibility?
Contact ALSKAR DIAMOND with your
floor grinder model and a clear
photo of the installed tool holder
before ordering.
ALSKAR DIAMOND supplies aftermarket
compatible tooling and is not
affiliated with the original
equipment manufacturers.
Frequently Asked Questions
1. What are HTC EZchange compatible diamond grinding shoes?
are diamond tools designed for
matching wing-style quick-change
floor grinder holders.They are commonly used for concrete
floor grinding, leveling and
surface preparation.
2. What is a Double Bar diamond grinding shoe?
two diamond grinding segments.This ALSKAR product uses two straight
rectangular metal-bonded diamond
segments for distributed grinding
contact.
3. What is the advantage of Double Bar grinding tooling?
Double Bar tooling generally
provides a larger combined grinding
contact area than single-bar tooling.It is commonly selected for
general concrete grinding,
surface leveling and preparation.
4. Which HTC floor grinders use EZchange tooling?
is offered for selected HTC
Greyline and HTC Professional
floor grinders.The actual mounting holder must
be verified because machine
configurations can differ.Older HTC machines may require
bolt-on tooling.
5. Can these grinding shoes fit Husqvarna floor grinders?
EZchange Wing holders.Some Husqvarna floor grinding
machines use compatible
EZchange mounting systems.Always verify the exact machine
model and installed tool holder
before ordering.
6. Is HTC EZchange the same as Redi Lock?
are different tool mounting systems.They should not be assumed
to be directly interchangeable.Use tooling that matches the
installed holder or a specifically
verified compatible adapter.
7. What diamond grit options are available?
Double Bar Grinding Shoes
are available in 18/20,
30/40 and 60/80 grit.Each grit is offered in
Soft, Medium and Hard bond,
providing nine configurations.
8. When should I use 18/20 grit?
for initial concrete grinding,
surface leveling and
high-spot removal.
9. What is 30/40 grit used for?
for general-purpose concrete
floor grinding, routine leveling
and surface preparation.
10. When should I choose 60/80 grit?
finer metal-bond grinding
and intermediate surface refinement.It can help reduce scratches
left by coarser grinding stages.
11. How do I select the correct bond hardness?
As a general guideline:Soft Bond: Hard concrete.
Medium Bond: Medium-hard concrete.
Hard Bond: Soft or abrasive concrete.
Concrete composition, grinder weight
and operating conditions also affect
the recommended bond selection.
12. Can these grinding shoes remove epoxy or adhesive coatings?
shoes are primarily intended
for concrete grinding.For thick epoxy, soft adhesives,
heavy mastic or flexible coatings,
specialized PCD tooling is
generally more appropriate.
13. Can these tools produce polished concrete?
normally used for early and
intermediate concrete grinding.A finished polished concrete
surface typically requires
additional transitional and
resin-bond polishing stages.
14. Can these grinding shoes be used wet or dry?
depends on the specific tooling
and manufacturer specifications.Use suitable dust extraction
and silica-control measures
for dry grinding.Wet grinding should only be used
when both the grinding tool and
machine are approved for wet operation.
15. Can I order different quantities and mixed grit or bond options?
flexible order quantities
and packaging based on
customer requirements.Customers may request mixed
grit and bond combinations
for different grinding applications.Contact us for project and
wholesale ordering requirements.
Reviews
There are no reviews yet.
