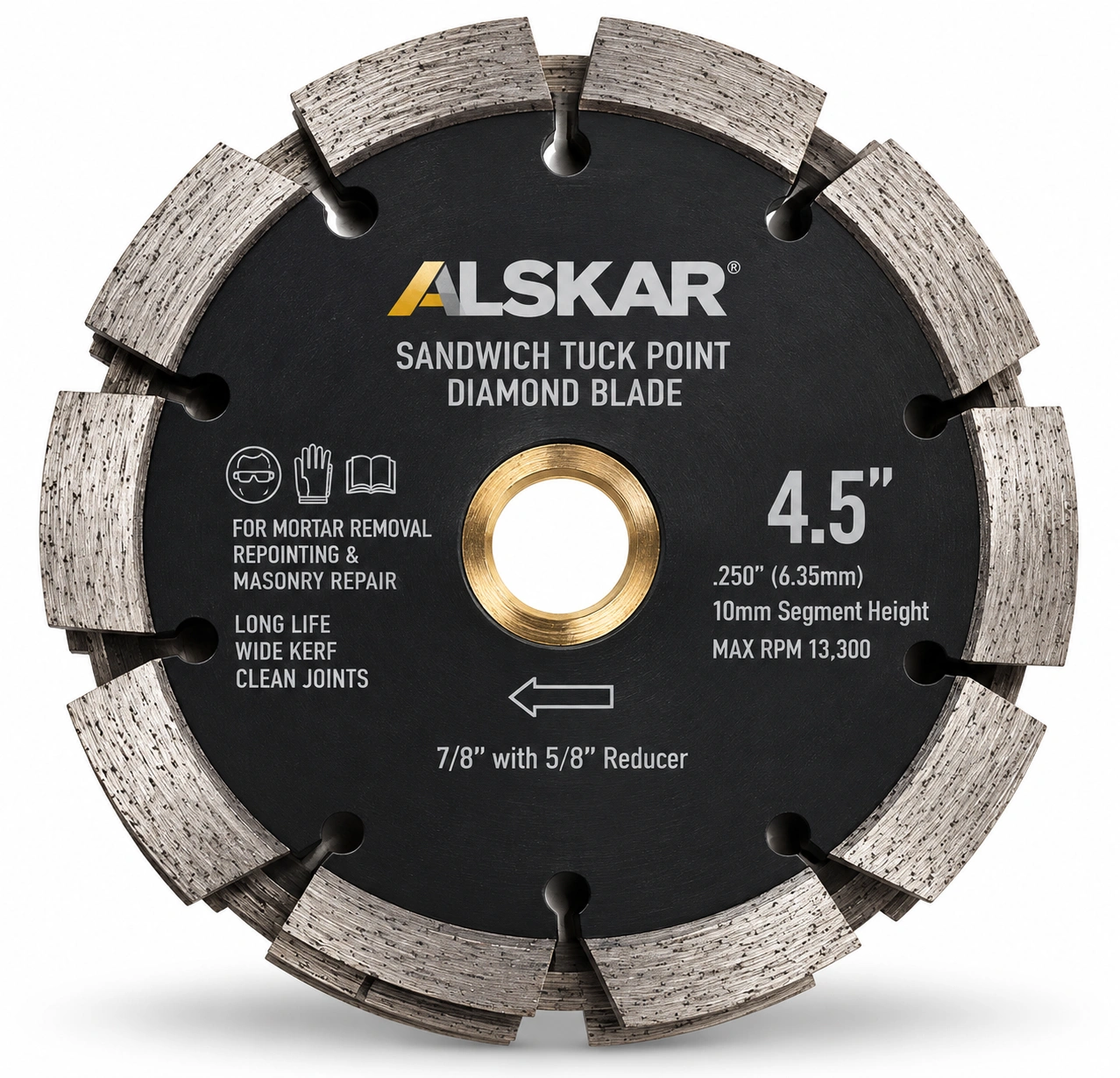

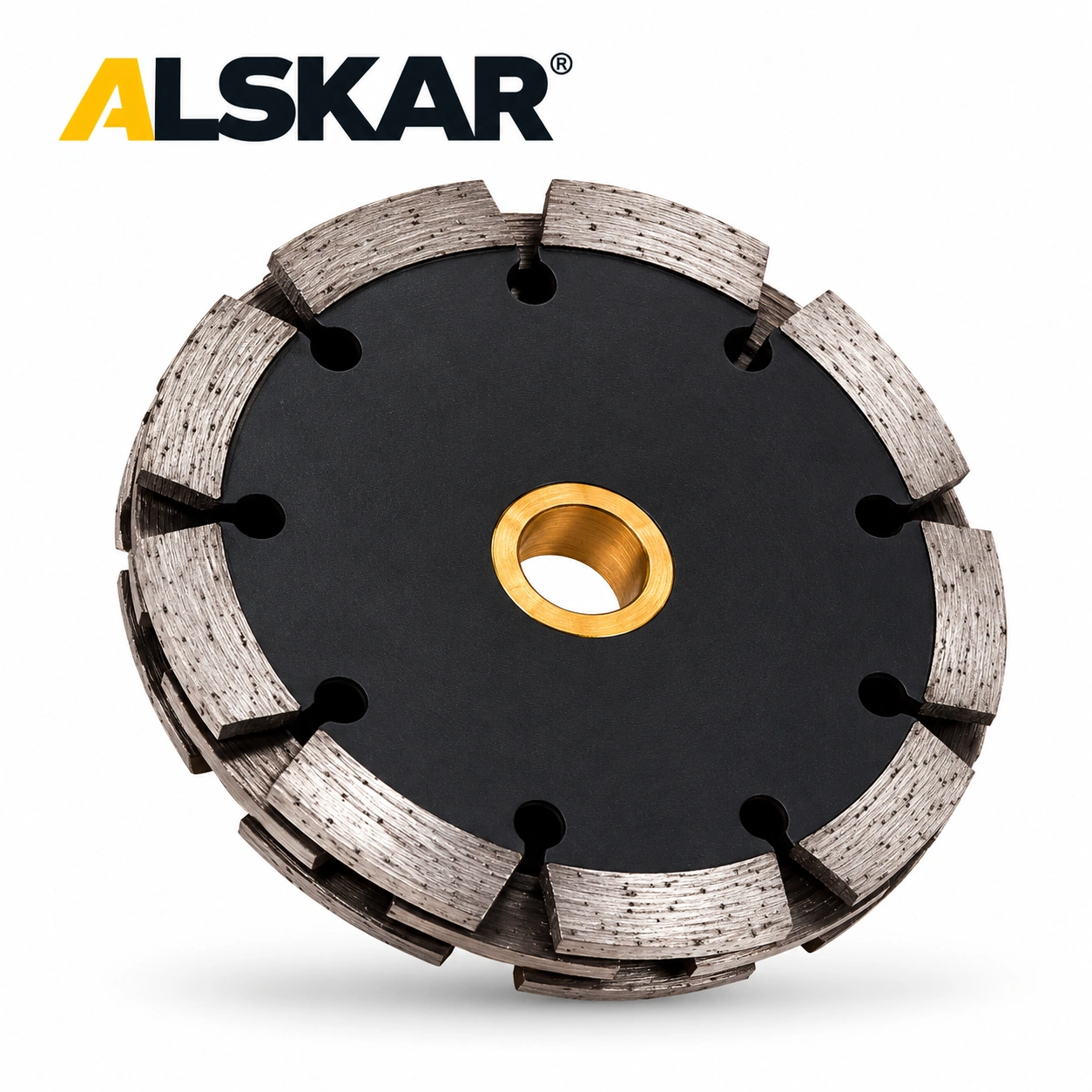

Sandwich Tuck Point Diamond Blade – Double & Triple Layer

1. Sandwich Tuck Point Diamond Blade, Double and triple-layer designs for fast, wide mortar removal.

The Alskar Sandwich Tuck Point Diamond Blade is designed for professional masonry contractors who need faster removal of deteriorated mortar, grout and joint material.

Unlike a conventional single-layer tuck point blade, the sandwich-style construction uses multiple cutting layers to create a wider kerf while maintaining controlled joint geometry.

This makes the blade especially effective for:

Tuck Pointing
Repointing
Mortar Joint Cleaning
Grout Removal
Masonry Restoration
Wide Joint Preparation

The two configurations allow contractors to select the appropriate cutting width according to the existing joint and required repair channel.

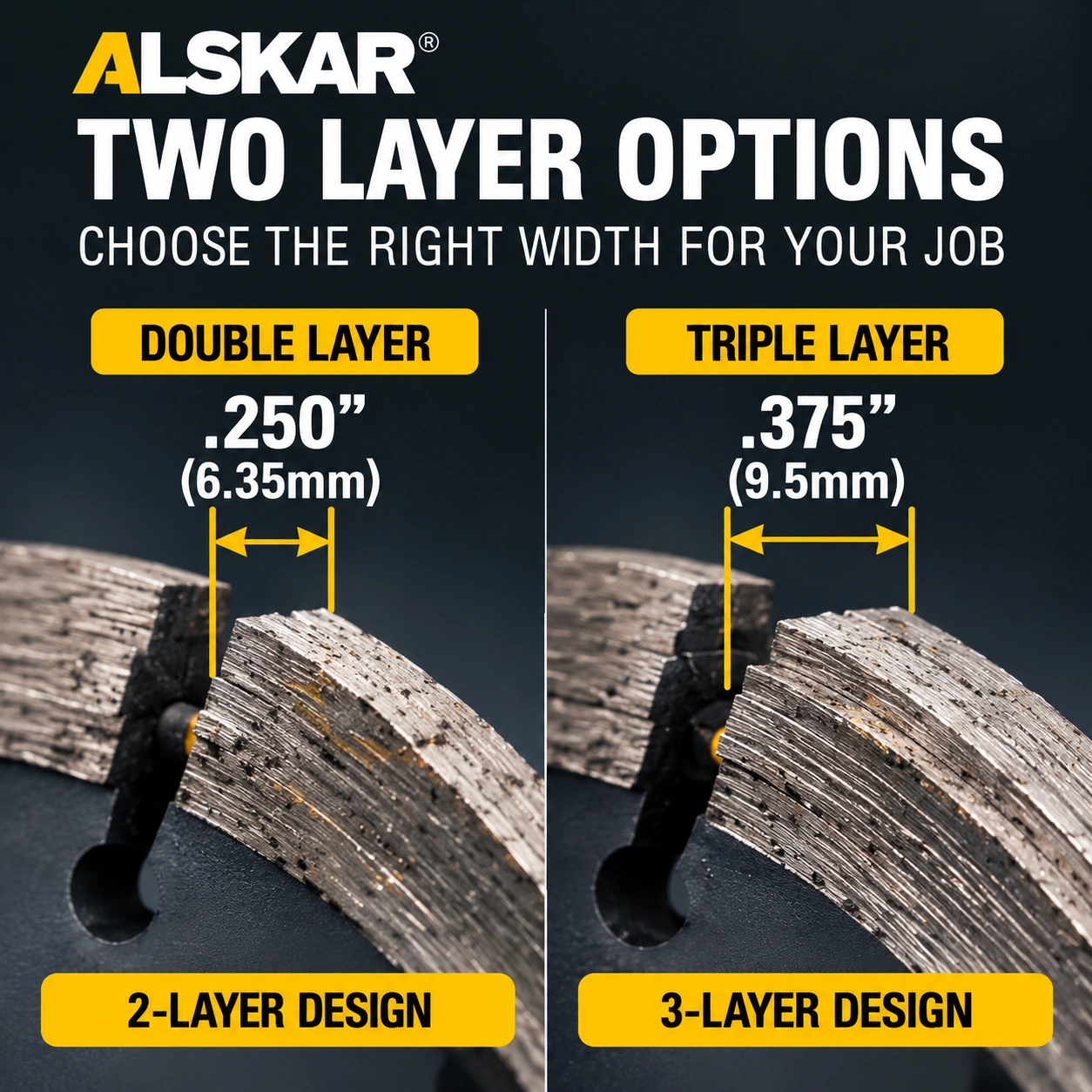

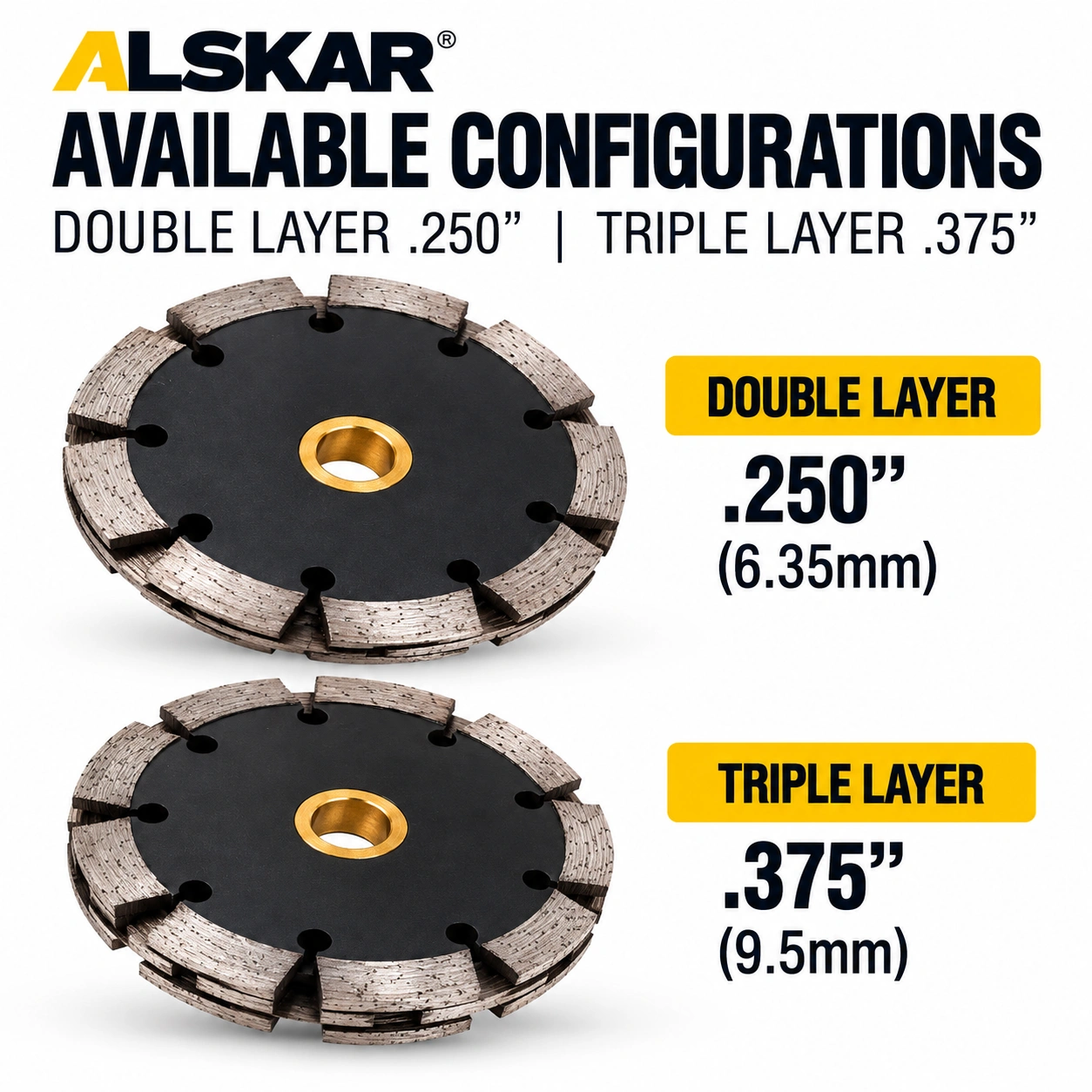

2. Two Layer Configurations

The double-layer .250″ configuration is designed for standard mortar-joint cleaning, while the triple-layer .375″ version provides a wider cutting profile for heavier mortar removal and larger masonry joints.

Double-Layer — .250″

Cutting Width

.250″ / 1/4″ / 6.35mm

Recommended for:

• Standard mortar joints
• General tuck pointing
• Repointing preparation
• Mortar joint cleaning
• Controlled material removal

Recommended positioning:

Balanced cutting width for everyday professional tuck pointing and mortar removal.

Layered construction provides a stable .250″ cutting profile for professional masonry joint cleaning.

Triple-Layer — .375″

Cutting Width

.375″ / 3/8″ / approximately 9.5mm

Recommended for:

• Wide mortar joints
• Heavy mortar removal
• Larger masonry joints
• Aggressive joint preparation
• Restoration projects requiring a wider repair channel

Recommended positioning:

Wider 3/8″ cutting profile for aggressive mortar removal and large joint preparation.

3. Why Sandwich Construction?

Wider Controlled Kerf

Multiple cutting layers create a defined wide groove in one pass.

Stable Cutting Profile

The layered design helps maintain a consistent kerf across masonry joints.

Efficient Material Removal

A wide cutting profile removes more mortar or grout per pass than a conventional thin masonry blade.

Application-Specific Widths

Contractors can choose between:

.250″ Standard Joint Width
.375″ Wide Joint Width

3. 10mm Diamond Segments

Both configurations use 10mm diamond segments to provide substantial usable cutting depth for repeated professional tuck-pointing and masonry restoration work.

4. Wide Segment / Layered Design

• 2 Layers → .250″
• 3 Layers → .375″

5. Arbor

The blade uses a 7/8″ arbor with 5/8″ reducer for compatibility with common professional grinder and masonry saw setups using the appropriate blade size and guard configuration.

6. Primary Materials

Primary

Mortar
Grout
Masonry Joints

Suitable Masonry

Brick Masonry
Concrete Block
Stone Masonry
Repair Mortar
Grout Joints

7. Typical Applications

Ideal for tuck pointing, repointing, mortar joint cleaning, grout removal and wide-joint preparation in brick, block and stone masonry.

Tuck Pointing

Removal of deteriorated mortar before new pointing material is applied.

Repointing

Opening and cleaning masonry joints to the required repair depth and width.

Mortar Joint Cleaning

Fast removal of old mortar from brick, block and stone masonry.

Grout Removal

Removal or widening of grout joints during repair and restoration.

Wide Joint Preparation

The .375″ triple-layer configuration is especially suited to larger masonry joints where a wider cleaned channel is required.

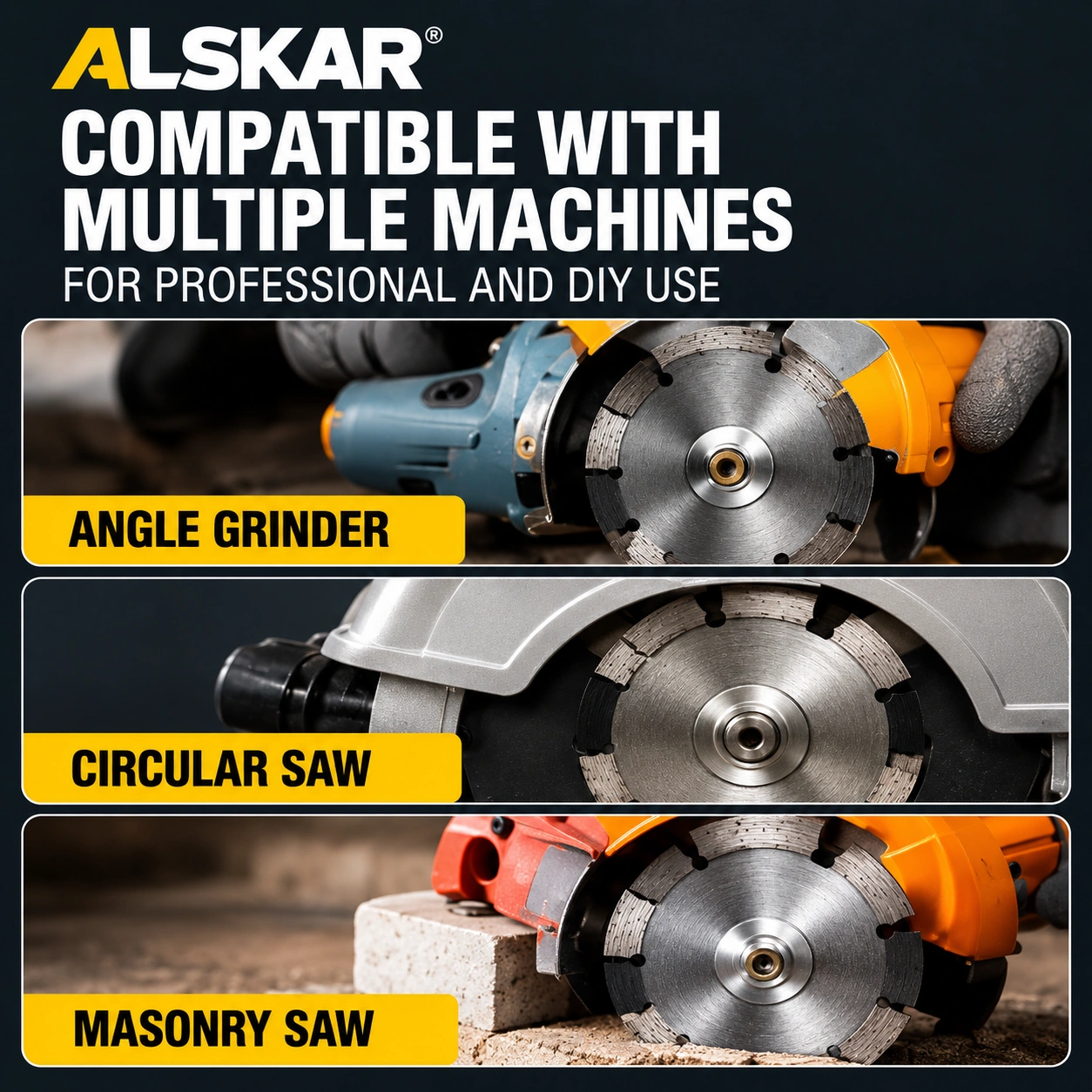

8. Machine Compatibility

Angle Grinder
Circular Saw
Masonry Saw

Always verify blade diameter, arbor size, machine guard clearance and maximum RPM before use.

9. Cutting Method

Wet / Dry

10. Key Selling Points

Double & Triple Layer Options

Choose .250″ or .375″ cutting width according to the masonry joint.

Wide Kerf in One Pass

Layered construction creates a wider joint-cleaning profile efficiently.

10mm Diamond Segments

Professional usable diamond depth for repeated tuck-pointing applications.

Aggressive Mortar Removal

Designed for removing deteriorated mortar, grout and masonry joint material.

Professional Masonry Repair

Suitable for tuck pointing, repointing and restoration contractors.

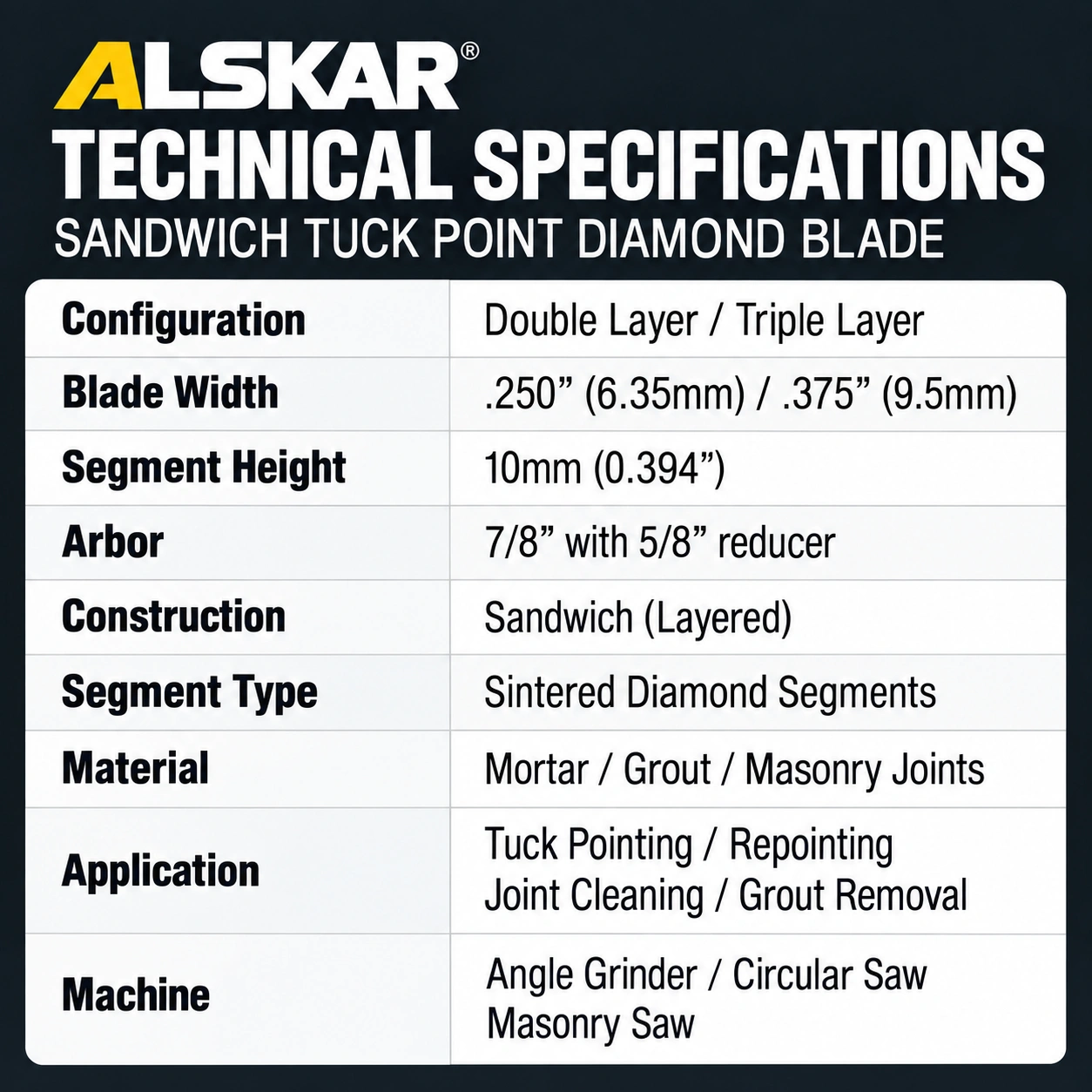

11. Final Specifications

12. FAQ SEO

What is a sandwich tuck point diamond blade?
It is a layered diamond blade designed to create a wider cutting kerf for mortar and grout removal during tuck pointing and masonry repair.

What is the difference between double-layer and triple-layer blades?
The double-layer version provides a .250″ cutting width, while the triple-layer version provides a wider .375″ cutting width.

What is the segment height?
10mm.

What arbor does the blade use?
7/8″ arbor with a 5/8″ reducer.

Which configuration is better for standard mortar joints?
The double-layer .250″ version is intended for standard joint cleaning and repointing preparation.

Which configuration is better for wider joints?
The triple-layer .375″ version is better suited to wider joints and more aggressive mortar removal.

What materials is the blade designed for?
Mortar, grout and masonry joints in brick, block and stone masonry.

Can it be used for repointing?
Yes. Repointing preparation is one of its primary applications.
