Premium Laser Welded Three-Piece Concrete Core Drill Bit 1–16 in

1. Product Overview

The Alskar Premium Laser Welded Three-Piece Concrete Core Drill Bit is a Premium-grade modular system for concrete coring. It combines three detachable components: the machine adapter, the middle barrel and the diamond cutting crown. Threaded joints connect these sections into the complete assembly.

The 10mm-high diamond segments are laser-welded to the steel body of the cutting crown. Laser welding describes the segment attachment method; the adapter, barrel and complete cutting crown remain separate components joined by threads.

The removable cutting crown allows the worn cutting section to be replaced while serviceable, compatible barrel and adapter components are retained. This gives contractors a practical way to manage wear parts without automatically replacing the complete assembly.

For deeper openings, a configuration using compatible extension barrels can be reviewed for the required reach. The extension arrangement must be matched to the bit diameter, thread system, drill stand travel and machine capacity. Usable drilling depth depends on the complete setup and core-removal requirements.

The diameter range is 1–16 inches, with a 10mm diamond segment height and size-specific segment widths. Middle barrel length, assembled overall length and effective drilling depth are separate specifications and are confirmed for the selected configuration.

To request a quotation, provide the required hole diameter, drilling depth, concrete conditions, machine model and connection details. For replacement components, include the existing assembly dimensions and thread information so the matching parts can be identified.

2. Key Features

Premium Quality Grade

A Premium-grade option in the Alskar concrete core bit range, combining a modular assembly with a replaceable cutting crown.

Laser-Welded Diamond Segments

The diamond segments are laser-welded to the steel cutting crown, while the crown itself connects to the barrel through a detachable threaded joint.

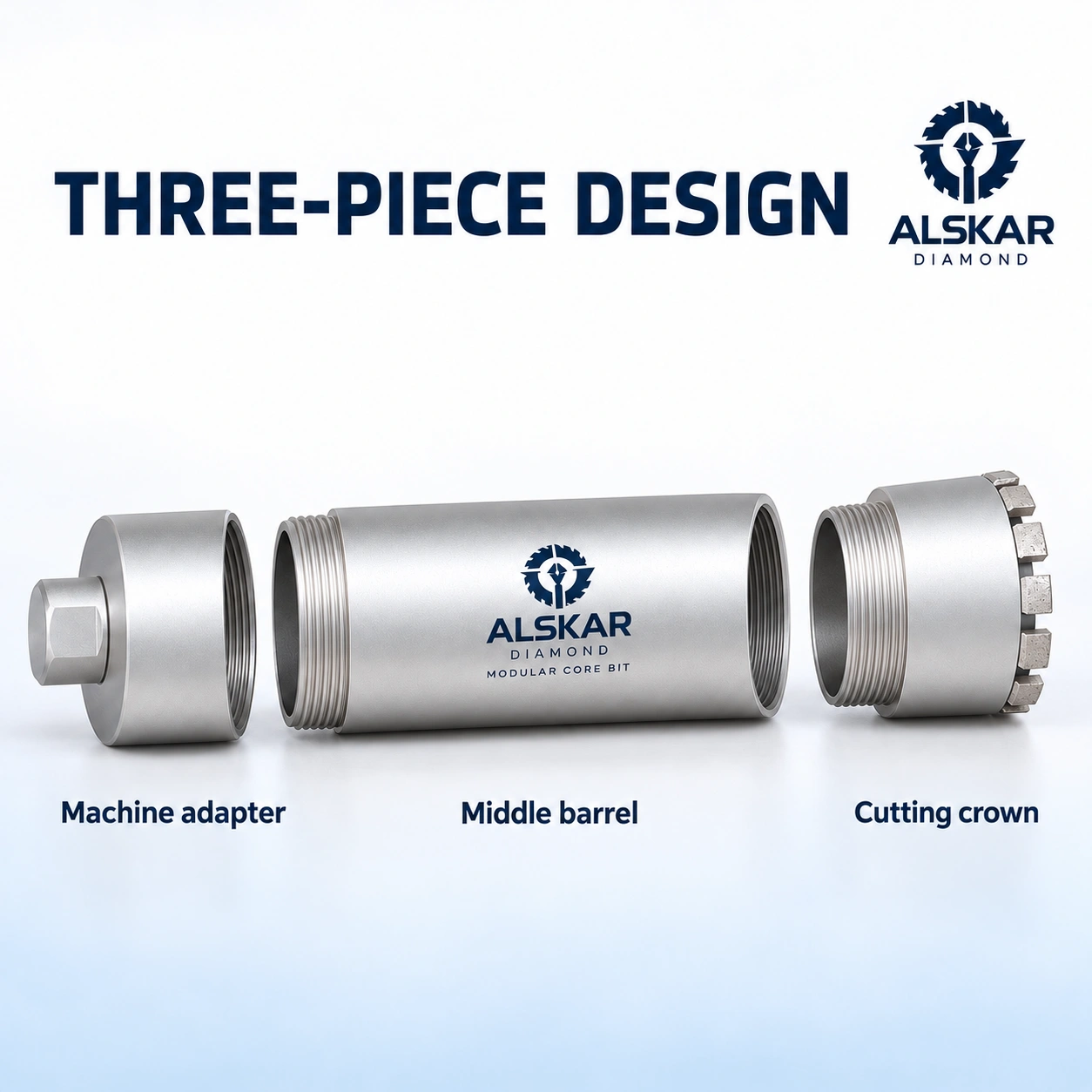

Three-Piece Threaded Construction

A separate machine adapter, middle barrel and cutting crown form the modular assembly. The sections can be dismantled for component inspection and replacement.

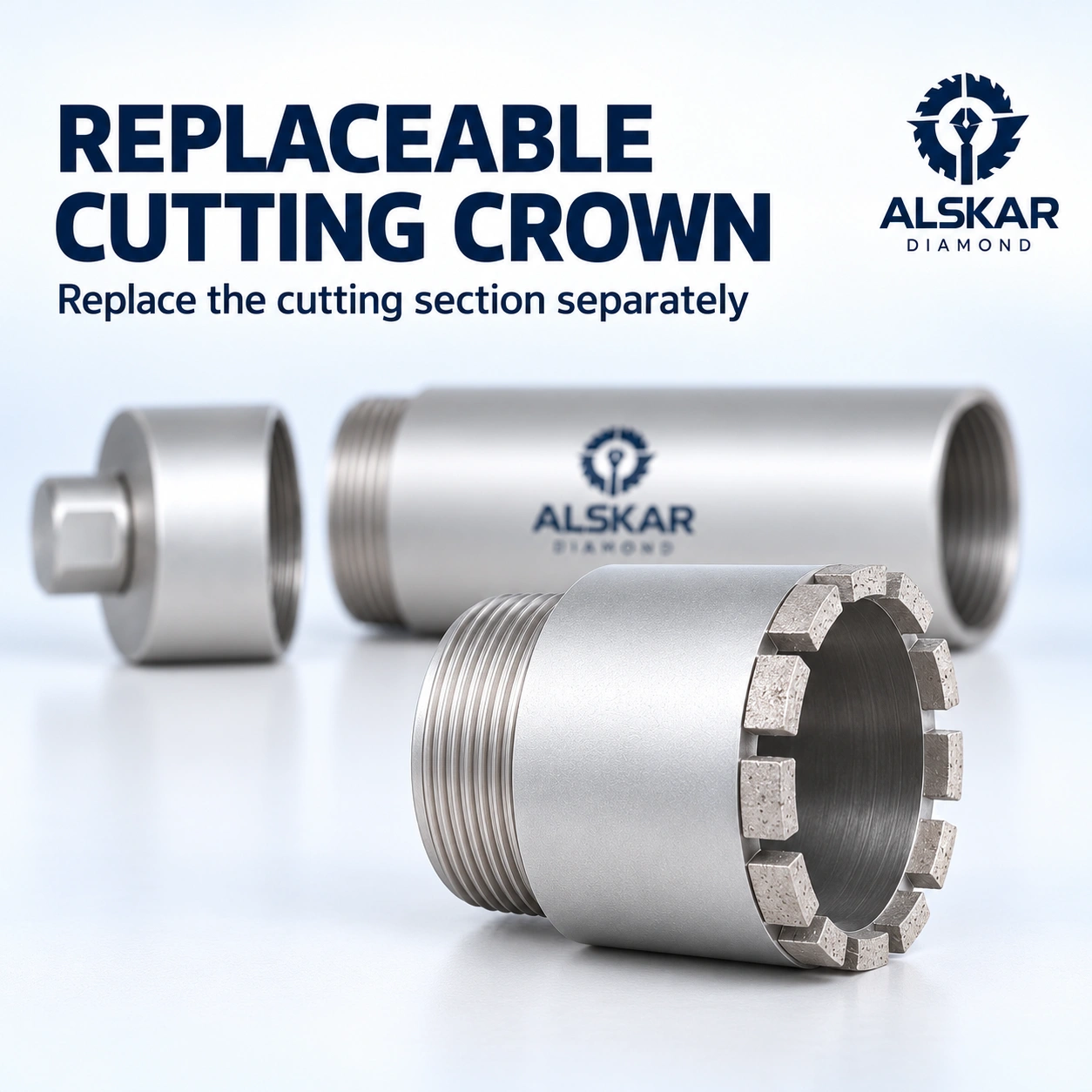

Replaceable Diamond Cutting Crown

Replace the worn cutting section while retaining compatible barrel and adapter components that remain fit for service.

Configurable Barrel Arrangement

Discuss a matching extension-barrel arrangement for the required working reach. Confirm the component threads, assembled dimensions and drilling equipment before ordering.

10mm Segment Height

The series uses 10mm-high diamond segments, with segment width specified according to the selected diameter.

1–16-Inch Diameter Range

Select the diameter for the required concrete opening. Provide the actual required hole size when a project uses metric dimensions or a specific tolerance.

Configuration Support

Send your diameter, depth, machine interface and quantity for a complete-assembly or replacement-component quotation.

3. Applications

• Concrete wall and floor coring.
• Pipe, conduit and building-services openings.
• Deeper concrete openings requiring a reviewed extension-barrel arrangement.
• Coring projects where replaceable cutting sections are preferred.

Provide the concrete conditions and any anticipated steel reinforcement when requesting a suitable cutting-crown specification.

4. Components & Connection Matching

There are two different connection requirements: the machine-side connection and the large-diameter threads joining the modular components. A matching machine spindle thread does not by itself establish compatibility between barrels, adapters and cutting crowns from different systems.

For a replacement-part inquiry, provide the component diameter, thread diameter and pitch, thread orientation, engagement details, and a clear photograph or drawing of the mating parts.

5. Fixed Specifications

6. Size Specifications — Working Table

The metric column is an arithmetic conversion of the inch designation, not a separate nominal metric product series or a tolerance statement. Specify the actual hole diameter required by the project.
