Road Milling Tools
Match your asphalt milling pick to the pavement, machine and tool holder. Explore four tungsten carbide series and a PCD option for professional road rehabilitation.
Start With the Milling Conditions
Choose the pavement conditions first, then verify the complete pick and holder assembly.
Asphalt Removal & Rehabilitation
Explore carbide picks for asphalt overlays, road surface removal and preparation before resurfacing.
Explore milling picks → 02 / APPLICATIONSurface Correction & Leveling
Match the pick to the machine, milling depth and required surface result. Drum configuration also matters.
View selection guide → 03 / APPLICATIONHomogeneous Asphalt Milling
Evaluate PCD for relatively consistent asphalt where abrasive wear is a priority and severe impact can be avoided.
Explore the PCD option →Choose the Cutting Material for Your Application
Tungsten Carbide Milling Picks
SW5, SW6, SW7 and SW8 cover different carbide tip sizes and machine categories. Each series lists grooved and non-grooved head configurations.
Explore carbide picks → 1 PRODUCT SERIES
PCD Asphalt Milling Picks
A specialized PCD cutting option using SW6-type body dimensions. Confirm pavement conditions, head configuration and holder fit before ordering.
Explore PCD picks →Match the Machine Before Choosing the Tip Weight
The following categories are selection starting points, not model-specific fitment approvals.
Define the Pavement
Record asphalt composition, aggregate, milling depth and potential impact conditions.
Identify the Holder
Check the existing pick, bore, retaining sleeve, wear plate and cutting drum configuration.
Choose and Confirm
Compare tip material, dimensions and groove design. Confirm the complete specification before ordering.
| Series | Cutting Tip | Machine / Application | Selection Check |
|---|---|---|---|
| SW5 | 26g tungsten carbide | Low-to-medium HP cold milling machines; approximately 1.0m milling width. | Match groove configuration, geometry and retaining system. |
| SW6 | 30.8g tungsten carbide | Medium-to-high HP compact cold milling machines. | Match groove configuration, geometry and retaining system. |
| SW7 | 41g tungsten carbide | Large cold milling machines. | Match groove configuration, geometry and retaining system. |
| SW8 | 48g tungsten carbide | Large cold milling machines. | Match groove configuration, geometry and retaining system. |
| PCD W6-Type | PCD; weight to be confirmed | Compatible compact cold milling machines; relatively homogeneous asphalt. | Confirm head configuration and operating conditions. |
All five series list a 20mm shank, 88mm overall length and 48mm reference length. These shared dimensions do not make the picks interchangeable. Carbide weights refer to the tip only; a heavier tip is not an automatic performance upgrade.
Explore All 5 Product Series
Compare the listed specifications below. Open each product page for full details and contact ALSKAR for current availability and quotations.
Showing 5 of 5 product series
No matching milling picks. Try another keyword or reset the filters.
Tungsten Carbide Asphalt Milling Picks
4 SERIES
SW5 Asphalt Milling Picks – 26g Carbide Tip
26g cap-shaped tungsten carbide tip for asphalt pavement removal and road rehabilitation.
- Shank / Overall / Reference Length
- Ø20mm / 88mm / 48mm
- Carbide Tip Weight
- 26g (tip only)
- Upper Head / Upper Tip Region
- Nominal Ø18 / Ø10mm
- Head Configurations
-
SW5-G/20 · With groove
SW5/20 · Without groove - Machine Category
- Low-to-medium HP cold milling machines; approximately 1.0m milling width.
SW6 Asphalt Milling Picks – 30.8g Carbide Tip
30.8g cap-shaped tungsten carbide tip for asphalt pavement removal and road rehabilitation.
- Shank / Overall / Reference Length
- Ø20mm / 88mm / 48mm
- Carbide Tip Weight
- 30.8g (tip only)
- Upper Head / Upper Tip Diameter
- Nominal Ø19 / Ø10mm
- Head Configurations
-
SW6-G/20 · With groove
SW6/20 · Without groove - Machine Category
- Medium-to-high HP compact cold milling machines.

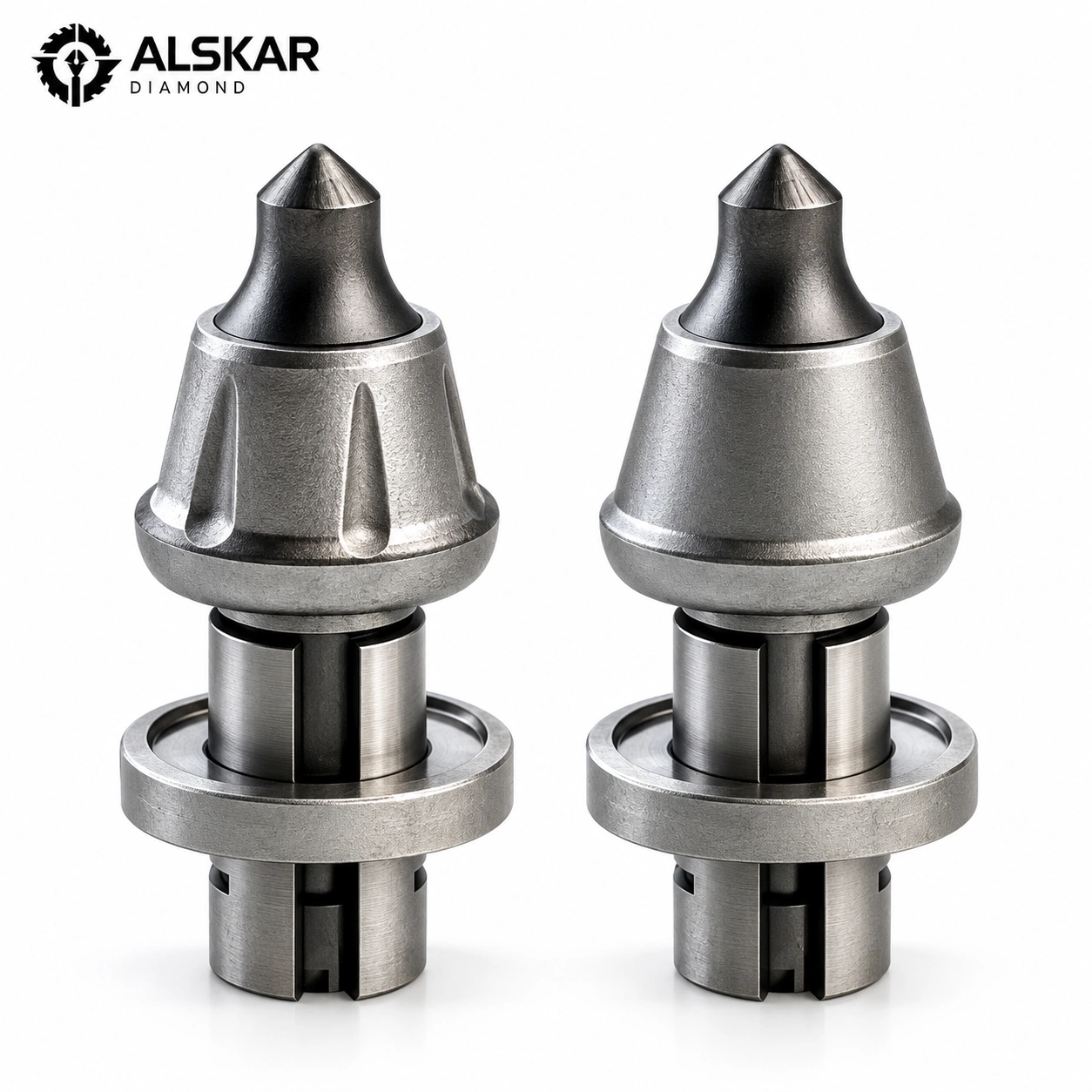

SW7 Asphalt Milling Picks – 41g Carbide Tip
41g cap-shaped tungsten carbide tip for asphalt pavement removal and road rehabilitation.
- Shank / Overall / Reference Length
- Ø20mm / 88mm / 48mm
- Carbide Tip Weight
- 41g (tip only)
- Tip Base / Upper Tip Diameter
- Nominal Ø21 / Ø11mm
- Head Configurations
-
SW7-G/20 · With groove
SW7/20 · Without groove - Machine Category
- Large cold milling machines.

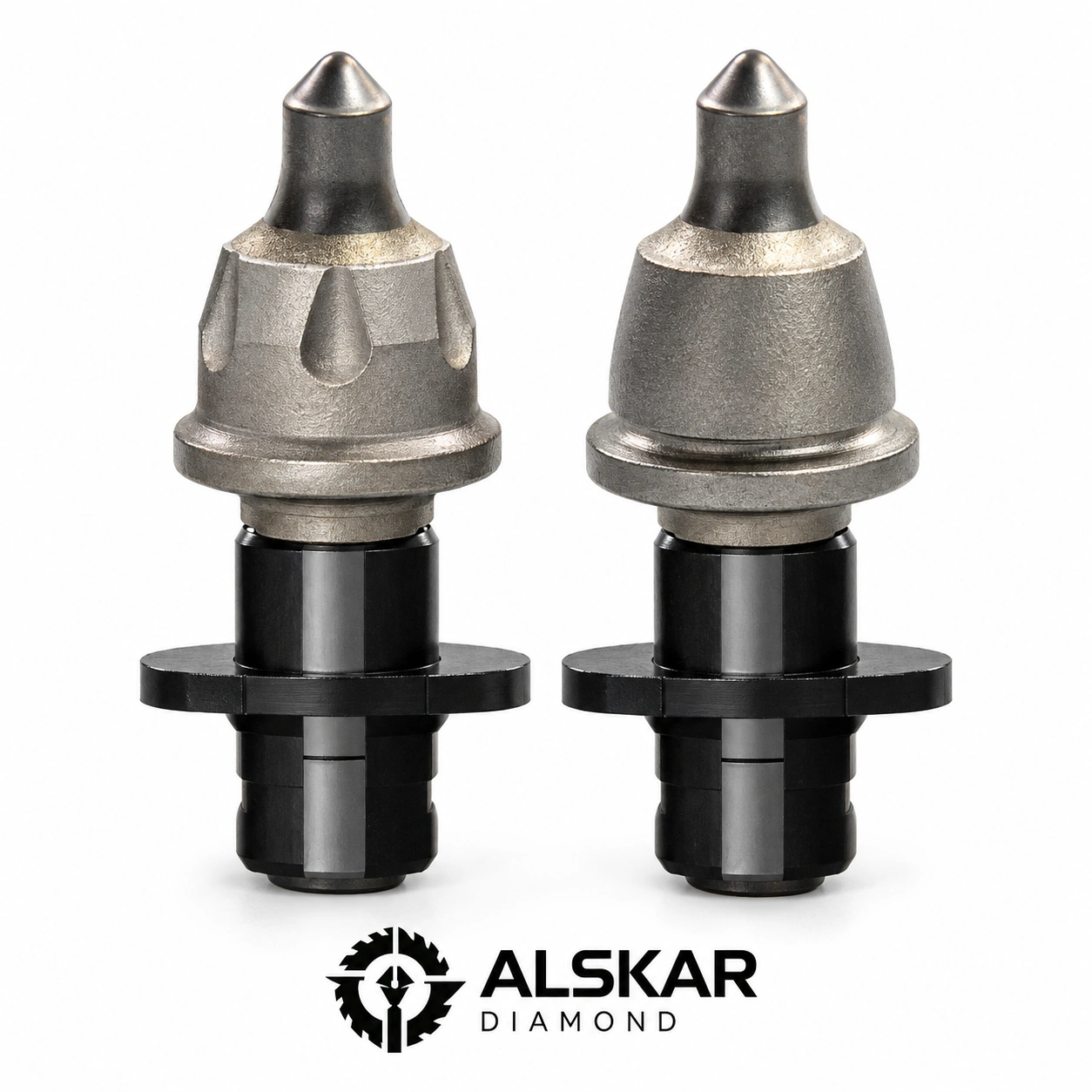

SW8 Asphalt Milling Picks – 48g Carbide Tip
48g cap-shaped tungsten carbide tip for asphalt pavement removal and road rehabilitation.
- Shank / Overall / Reference Length
- Ø20mm / 88mm / 48mm
- Carbide Tip Weight
- 48g (tip only)
- Tip Base / Upper Tip Diameter
- Nominal Ø22 / Ø12mm
- Head Configurations
-
SW8-G/20 · With groove
SW8/20 · Without groove - Machine Category
- Large cold milling machines.
PCD Asphalt Milling Picks
1 SERIES

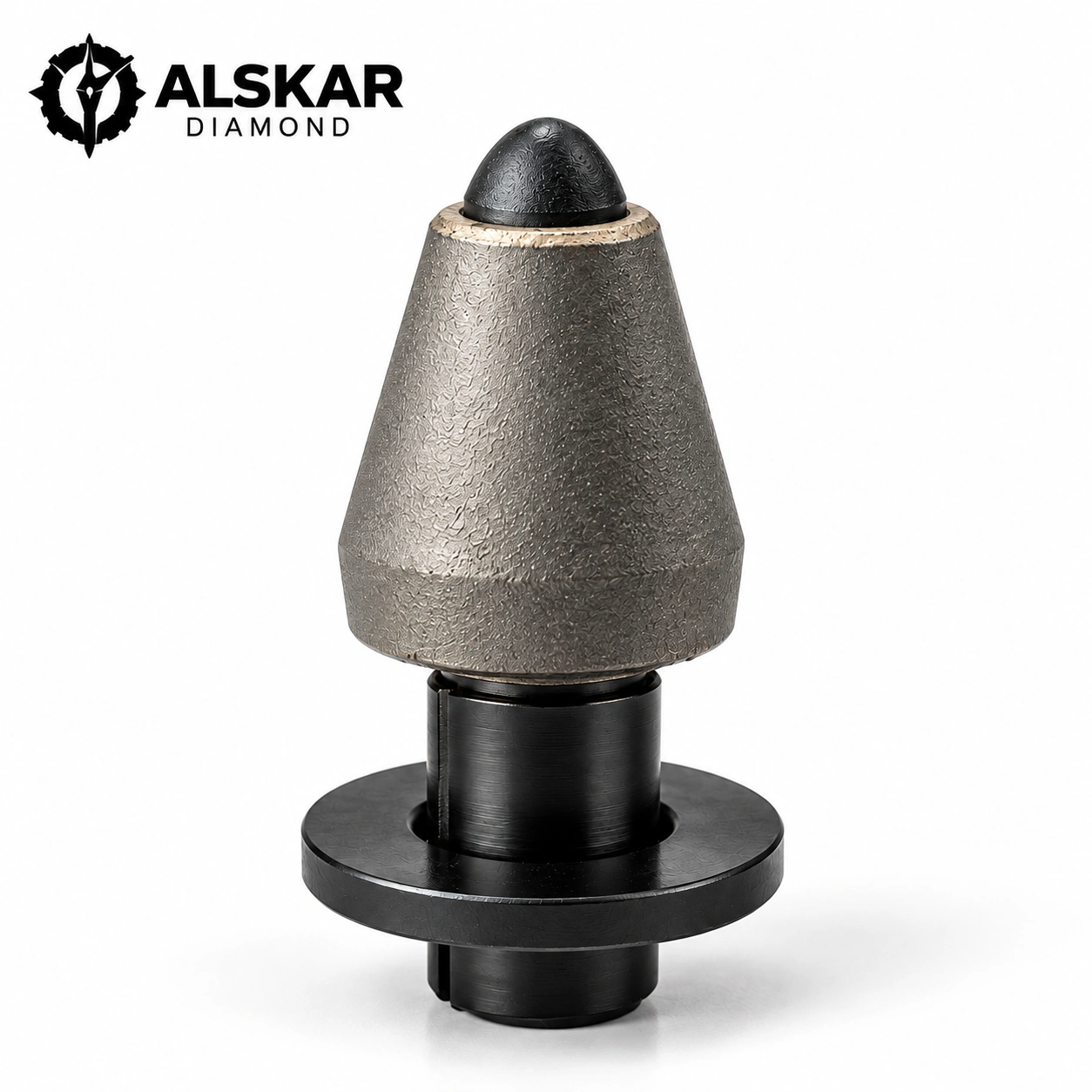

PCD Asphalt Milling Picks – W6-Type, 20mm Shank
PCD cutting tip on an SW6-type body for relatively homogeneous asphalt. Evaluate where abrasive wear and tool-change intervals are priorities.
- Shank / Overall / Reference Length
- Ø20mm / 88mm / 48mm
- Cutting Tip
- Polycrystalline diamond (PCD)
- Body Design
- SW6-type
- Confirm Before Ordering
- Tip weight and head configuration
- Machine Category
- Compatible compact cold milling machines.
A 20mm Shank Is Only the Starting Point
Confirm the Complete Assembly
- Machine make, model, power and milling width.
- Tool holder bore, geometry and cutting drum configuration.
- Existing pick dimensions and head profile.
- Retaining sleeve, wear plate and installation requirements.
- Grooved or non-grooved head and extraction method.
Use Cross-References Correctly
SW5–SW8 list WIRTGEN reference models and part numbers for identification and comparison. Verify the complete assembly before selecting an aftermarket replacement.
The PCD model uses SW6-type dimensional references. No WIRTGEN OEM PCD part number has been established for this product.
ALSKAR DIAMOND is an independent aftermarket supplier and is not affiliated with, authorized by, or endorsed by WIRTGEN.
Specify the Right Picks for Your Fleet
Discuss product matching, project quantities and replacement requirements with ALSKAR.
Provide pavement conditions, milling depth, machine details and existing pick information for technical matching.
Compare dimensions, holder systems, head configurations and reference numbers before planning replacement stock.
Request current pricing, quantities, packaging options, availability and delivery lead times for your market.
Road Milling Tool FAQs
How do I choose between SW5, SW6, SW7 and SW8?
Start with the machine and tool holder. SW5 is listed for low-to-medium HP machines, including approximately 1.0m milling widths; SW6 for medium-to-high HP compact machines; SW7 and SW8 for large cold milling machines. Then compare the tip geometry, carbide weight and head configuration. These categories do not guarantee fitment.
When should I consider PCD instead of tungsten carbide?
Consider the PCD option for relatively homogeneous asphalt where abrasive wear and tool-change intervals are priorities. Severe impact, embedded metal or highly irregular surfaces require separate evaluation. Service life depends on the application; no fixed life multiplier is promised.
Do all 20mm milling picks fit the same machines?
No. Shank diameter alone does not establish compatibility. Check the pick head geometry, holder, retaining sleeve, wear plate and drum configuration against the machine requirements.
What is the difference between grooved and non-grooved picks?
On SW5–SW8, the -G/20 version has an extractor groove, while the /20 version has no groove. The groove provides access for suitable extraction tools. Both versions within each series share the listed tip specifications and primary dimensions. The PCD head configuration must be confirmed separately.
Are 26g, 30.8g, 41g and 48g the total pick weights?
No. They are tungsten carbide tip weights for SW5, SW6, SW7 and SW8 respectively. They are not the total weights of the complete milling picks. The PCD tip weight is not confirmed on its product page.
Can these picks be used for concrete milling?
These five products are presented for asphalt milling. Concrete milling requires a separately evaluated cutting tool and machine configuration. Do not infer concrete suitability from a matching shank size.
Are these original WIRTGEN products?
No. ALSKAR supplies independent aftermarket products. WIRTGEN models and part numbers are identification cross-references only. The PCD version has no established WIRTGEN OEM PCD part number.
Can I request a bulk order or machine-specific recommendation?
Yes. Use the inquiry form below to provide the product series, quantity, machine model, holder details, pavement conditions and delivery destination. ALSKAR can review the specification and confirm availability, packaging and quotation details.
