SW7 Asphalt Milling Picks – 41g Carbide Tip
The ALSKAR SW7 Asphalt Milling Picks are tungsten carbide-tipped road milling tools designed for asphalt pavement removal and surface milling with compatible large cold milling machines.
Featuring a 41g cap-shaped carbide tip, 88mm overall length, 48mm reference length, and 20mm round shank, the SW7 series is intended for demanding asphalt milling applications using professional road milling equipment.
Available in With Groove (SW7-G/20) and Without Groove (SW7/20) configurations, both models share the same carbide tip specifications and primary dimensions.
OEM Cross-References:
- SW7-G/20: WIRTGEN W7-G/20X² | Part No. 2642530
- SW7/20: WIRTGEN W7/20X² | Part No. 2642532
1. SW7 Carbide Asphalt Milling Picks
The ALSKAR SW7 Series is designed for asphalt pavement milling, road rehabilitation, and surface removal applications using compatible large cold milling machines.
Each milling pick features a 41g tungsten carbide cutting tip supported by a steel pick body and a 20mm round shank.
According to ALSKAR’s product drawings, the SW7 Series has an 88mm overall length, a 48mm reference length, a nominal carbide tip base diameter of 21mm, and an upper tip diameter of 11mm.
The series is available in two configurations: SW7-G/20 with an extractor groove and SW7/20 without an extractor groove.
Both configurations share the same carbide tip specifications and primary dimensions, allowing customers to select the appropriate pick head design based on their existing cutting tools and maintenance requirements.
The SW7 series is an important cutting tool option for professional road milling contractors, equipment maintenance providers, and industrial distributors.

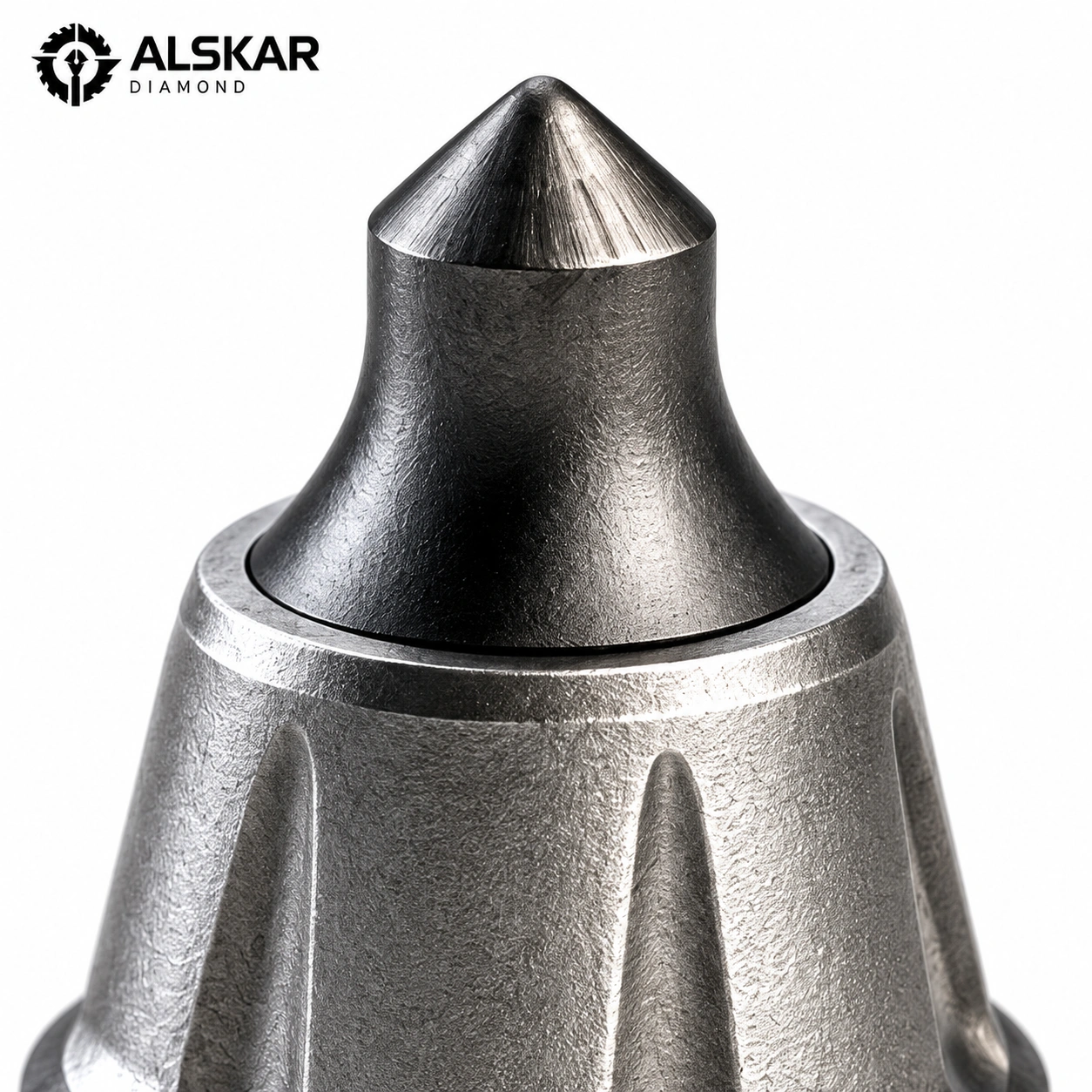

2. 41g Cap-Shaped Tungsten Carbide Cutting Tip
The SW7 Series features a 41g cap-shaped tungsten carbide cutting tip designed for asphalt pavement milling.
Tungsten carbide is widely used in road milling cutting tools because of its hardness and resistance to abrasive wear.
The carbide tip forms the primary cutting interface with asphalt pavement, while the supporting steel body transfers cutting forces through the tool holder assembly.
According to ALSKAR’s product drawings, the carbide tip has a nominal base diameter of 21mm and an upper diameter of 11mm.
The 41g carbide tip provides a larger cutting tip configuration than the lighter SW4, SW5, and SW6 models in the ALSKAR asphalt milling pick range.
Actual cutting performance, wear characteristics, and service life depend on pavement composition, abrasiveness, cutting depth, machine settings, pick rotation, and operating conditions.

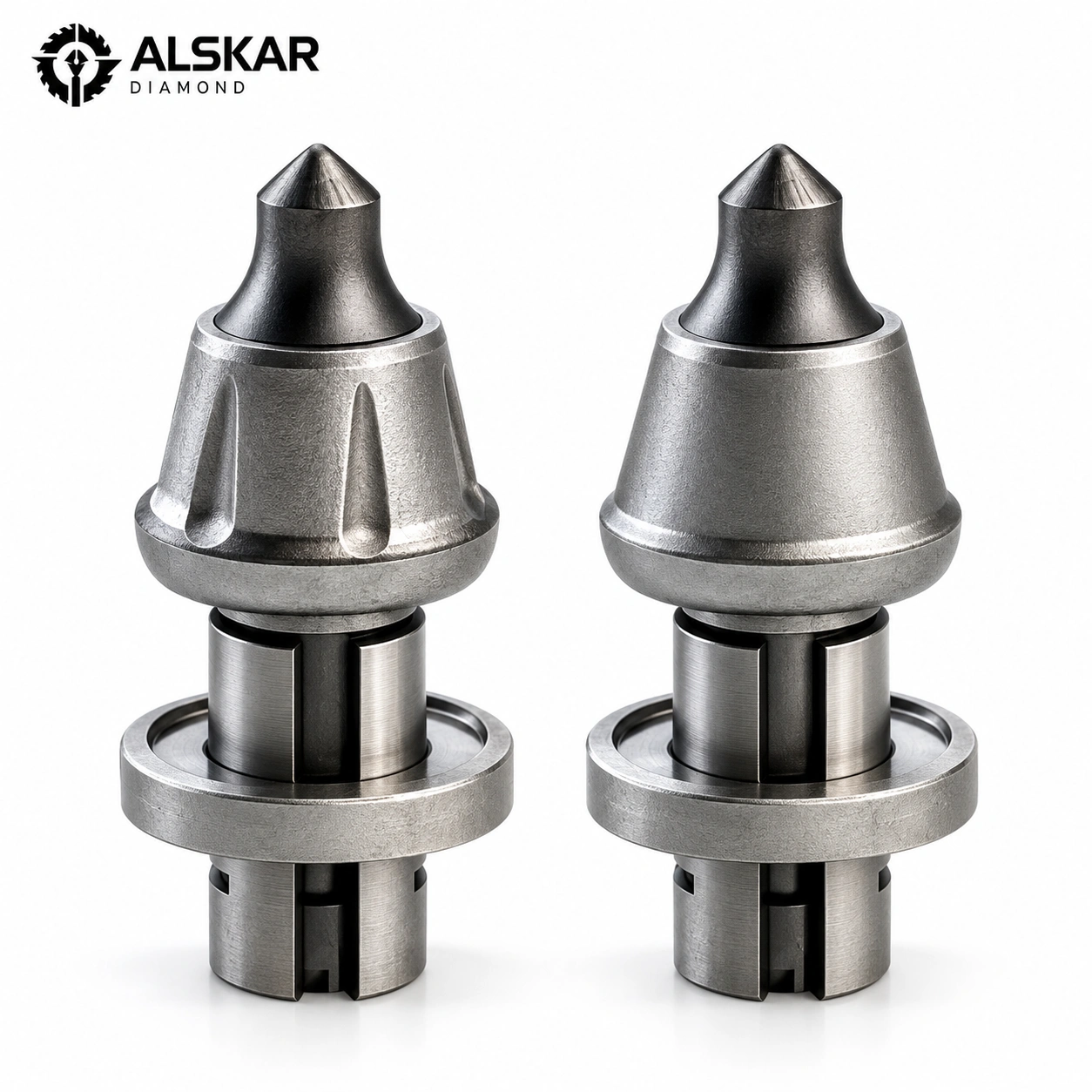

3. Two Pick Head Configurations
The ALSKAR SW7 Series is offered in two configurations to accommodate different milling tool designs and maintenance requirements.

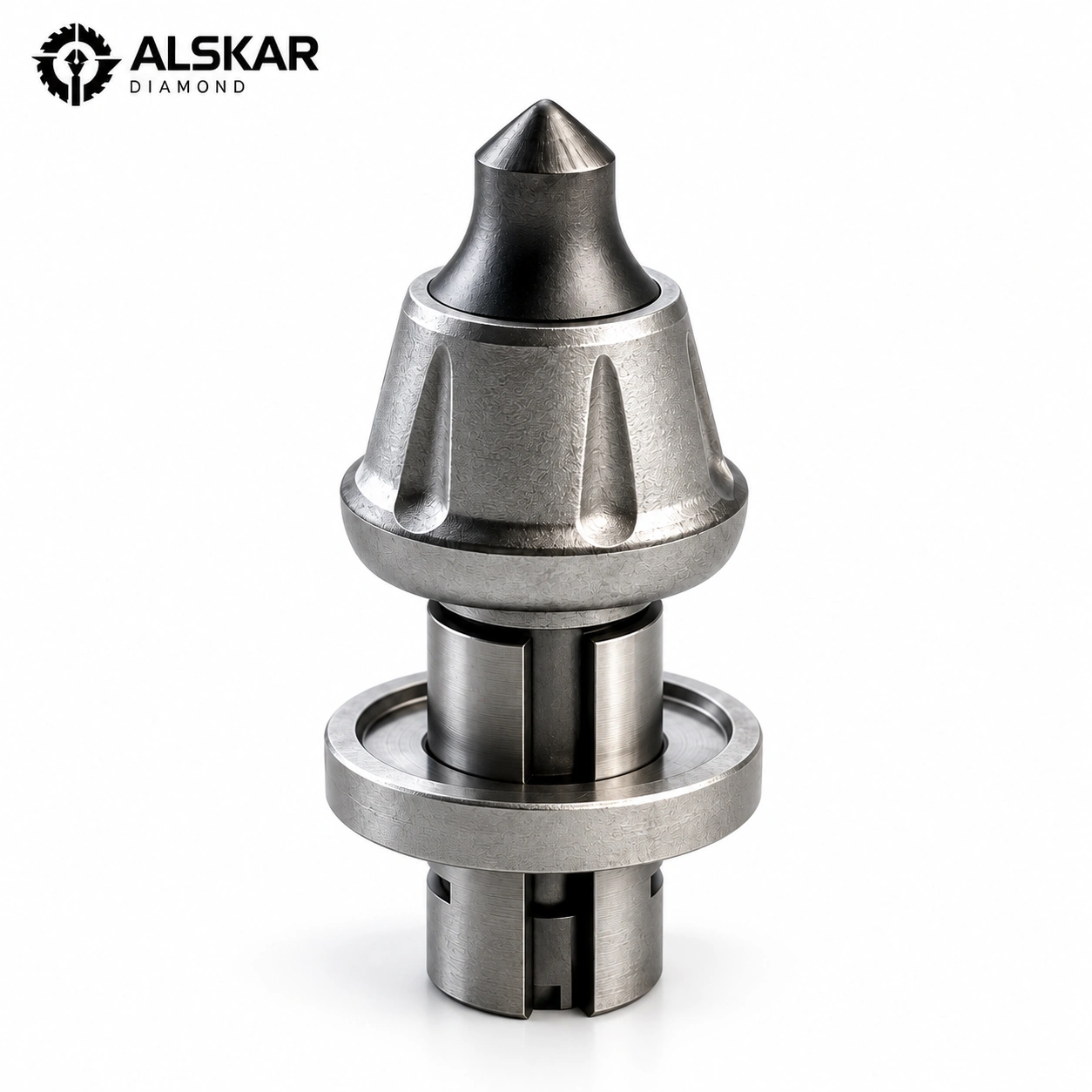

SW7-G/20 – With Groove
The SW7-G/20 features an extractor groove in the steel pick head.
The groove provides an access point for suitable extraction tools, helping operators remove worn milling picks during routine maintenance and replacement.
SW7/20 – Without Groove
The SW7/20 features a smooth steel pick head without an extractor groove.
This configuration maintains the same carbide tip geometry, shank diameter, overall length, and primary dimensions as the grooved model.
Shared Technical Specifications
- 41g Tungsten Carbide Tip
- 88mm Overall Length
- 48mm Reference Length
- 20mm Round Shank Diameter
- Nominal 21mm Carbide Tip Base Diameter
- Nominal 11mm Upper Tip Diameter
Customers should select the appropriate configuration according to their existing milling pick design, tool holder system, and maintenance requirements.
4. 20mm Round Shank Construction
Both SW7 milling pick configurations feature a 20mm round shank designed for installation in compatible road milling tool holders.
The 88mm overall length and 48mm reference length provide defined dimensions for comparing replacement cutting tools.
The round-shank configuration is intended for use with suitable tool holder assemblies and retaining systems.
Correct installation depends on matching the shank dimensions, head geometry, retaining components, and tool holder requirements.
A matching 20mm shank diameter alone does not guarantee universal compatibility with all milling machines or tool holders.

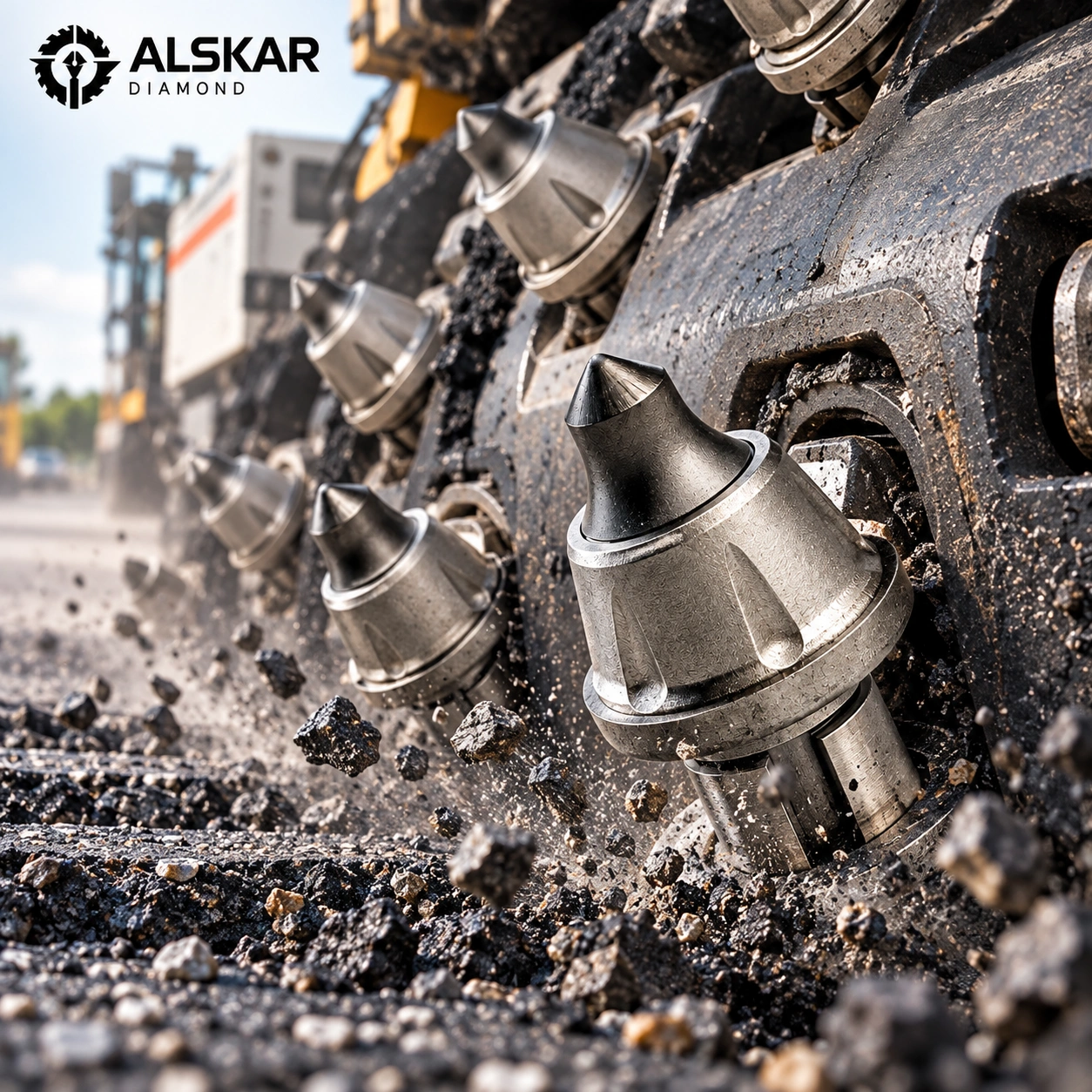

5. Designed for Asphalt Milling Applications
The ALSKAR SW7 Series is intended for asphalt pavement milling, surface removal, and road rehabilitation applications.
Recommended Applications
- Asphalt pavement milling
- Road surface removal
- Asphalt overlay removal
- Highway and roadway rehabilitation
- Pavement surface correction and leveling
- Large-scale road maintenance projects
- Surface preparation before asphalt resurfacing
Recommended Material: Asphalt pavement.
For concrete pavement milling, ALSKAR recommends selecting cutting picks specifically designed for concrete applications.
6. For Large Cold Milling Machines
The ALSKAR SW7 Asphalt Milling Picks are intended for demanding asphalt milling applications using compatible large cold milling machines.
The series features a 41g carbide tip, a 20mm round shank, and a defined cutting head geometry suitable for matching road milling tool holder systems.
Both grooved and non-grooved configurations are available to meet different replacement cutting tool requirements.
The SW7 Series provides an additional carbide tip size option for customers operating larger milling equipment or selecting tools for more demanding cutting conditions.
Machine compatibility must be verified by comparing the existing cutting pick dimensions, tool holder geometry, retaining system, and machine requirements before installation.
7. WIRTGEN W7-Type OEM Cross-Reference
The ALSKAR SW7 Asphalt Milling Picks are independent aftermarket cutting tools designed with reference to WIRTGEN W7-series asphalt milling picks.
Two configurations are available, each with a corresponding WIRTGEN reference model and part number.
SW7-G/20 – With Groove
- ALSKAR Model: SW7-G/20
- WIRTGEN Reference Model: W7-G/20X²
- WIRTGEN Reference Part Number: 2642530
SW7/20 – Without Groove
- ALSKAR Model: SW7/20
- WIRTGEN Reference Model: W7/20X²
- WIRTGEN Reference Part Number: 2642532
These OEM reference models and part numbers are provided to assist customers in identifying and comparing aftermarket replacement cutting tools.
Both ALSKAR models feature a 41g tungsten carbide tip, an 88mm overall length, a 48mm reference length, and a 20mm round shank.
Compatibility Notice: WIRTGEN reference models and part numbers are provided for identification and cross-reference purposes only. Please verify product dimensions, head configuration, and tool holder compatibility before ordering. ALSKAR DIAMOND is an independent aftermarket supplier and is not affiliated with, authorized by, or endorsed by WIRTGEN.
8. Key Features & Benefits
- 41g Tungsten Carbide Tip – Cap-shaped cutting tip designed for asphalt milling applications.
- Two Head Configurations – With Groove and Without Groove models available.
- Extractor Groove Option – Grooved head designed to assist with tool removal during maintenance.
- 20mm Round Shank – Designed for compatible road milling tool holder systems.
- 88mm Overall Length – Defined cutting tool geometry with a 48mm reference length.
- Nominal Ø21mm Carbide Tip Base – Based on ALSKAR’s product drawing.
- Nominal Ø11mm Upper Tip Diameter – Defined upper cutting tip dimension.
- Large Milling Machine Applications – Intended for compatible professional cold milling equipment.
- W7-Type OEM Cross-Reference – WIRTGEN W7-G/20X² (2642530) and W7/20X² (2642532).
- Professional & Wholesale Supply – Available for road construction contractors, equipment service providers, and industrial distributors.
9. Technical Specifications
| Specification | SW7-G/20 | SW7/20 |
|---|---|---|
| Brand | ALSKAR DIAMOND | ALSKAR DIAMOND |
| Product Type | Asphalt Milling Pick | Asphalt Milling Pick |
| Carbide Tip Material | Tungsten Carbide | Tungsten Carbide |
| Carbide Tip Shape | Cap-Shaped | Cap-Shaped |
| Carbide Tip Weight | 41 g | 41 g |
| Nominal Carbide Tip Base Diameter | Ø21 mm | Ø21 mm |
| Nominal Upper Tip Diameter | Ø11 mm | Ø11 mm |
| Overall Length | 88 mm | 88 mm |
| Reference Length | 48 mm | 48 mm |
| Shank Diameter | Ø20 mm | Ø20 mm |
| Groove Configuration | With Groove | Without Groove |
| Application Material | Asphalt | Asphalt |
| Machine Category | Large Cold Milling Machines | Large Cold Milling Machines |
| OEM Reference Manufacturer | WIRTGEN | WIRTGEN |
| OEM Reference Model | W7-G/20X² | W7/20X² |
| OEM Reference Part No. | 2642530 | 2642532 |
10. FAQs
What are SW7 asphalt milling picks used for?
ALSKAR SW7 asphalt milling picks are designed
for asphalt pavement removal, road rehabilitation,
and surface milling applications using compatible
cold milling machines, particularly large
road milling equipment.
What is the carbide tip weight of the SW7 series?
Both SW7-G/20 and SW7/20 feature a 41g
tungsten carbide cutting tip.
The 41g specification refers to the weight
of the carbide tip only, not the total weight
of the complete milling pick.
What is the difference between SW7-G/20 and SW7/20?
The SW7-G/20 features an extractor groove
in the steel pick head to assist with tool removal.
The SW7/20 has a smooth steel pick head
without an extractor groove.
Both models share the same carbide tip weight,
primary cutting geometry, overall length,
reference length, and shank diameter.
What are the main dimensions of the SW7 milling picks?
Both models have an 88mm overall length,
a 48mm reference length, and a 20mm
round shank diameter.
According to ALSKAR’s product drawings,
the carbide tip has a nominal base diameter
of 21mm and an upper diameter of 11mm.
What does the G in SW7-G/20 mean?
The G indicates the grooved pick head configuration.
The extractor groove provides an access point
for suitable extraction tools when removing
worn milling picks during maintenance
and replacement.
Which milling machines are suitable for SW7 picks?
The SW7 series is intended for compatible
cold milling machines, particularly large
asphalt milling equipment.
Actual compatibility depends on the installed
tool holder, retaining system, pick dimensions,
and machine specifications.
Please verify these details before ordering.
What are the WIRTGEN reference models and part numbers?
ALSKAR SW7-G/20 (With Groove) is cross-referenced
to WIRTGEN W7-G/20X², Part No. 2642530.
ALSKAR SW7/20 (Without Groove) is cross-referenced
to WIRTGEN W7/20X², Part No. 2642532.
These OEM numbers are provided for product
identification and comparison purposes only.
Can SW7 milling picks be used for concrete?
The SW7 series is intended primarily for
asphalt milling applications.
For concrete pavement milling, ALSKAR recommends
selecting a cutting pick specifically designed
for concrete cutting conditions.
Are ALSKAR SW7 picks original WIRTGEN products?
No. SW7-G/20 and SW7/20 are independent
ALSKAR DIAMOND aftermarket products.
WIRTGEN models and part numbers are used solely
for product identification and cross-reference.
ALSKAR DIAMOND is not affiliated with,
authorized by, or endorsed by WIRTGEN.
Can I order SW7 asphalt milling picks in bulk?
Yes. ALSKAR DIAMOND welcomes inquiries from
road construction contractors, equipment
service providers, and wholesale distributors.
Contact our sales team for product information,
packaging options, and bulk quotations.
| Application | Asphalt |
|---|---|
| Cutting Tip Material | Tungsten Carbide |
| Carbide Weight | 41 g |
| Carbide Tip Base Diameter | 21 mm |
| Upper Tip Diameter | 11 mm |
| Shank Diameter | 20 mm |
| Overall Length | 88 mm |
| Reference Length | 48 mm |
| Machine Type | Large Cold Milling Machines |
| Head Configuration | With Groove, Without Groove |
