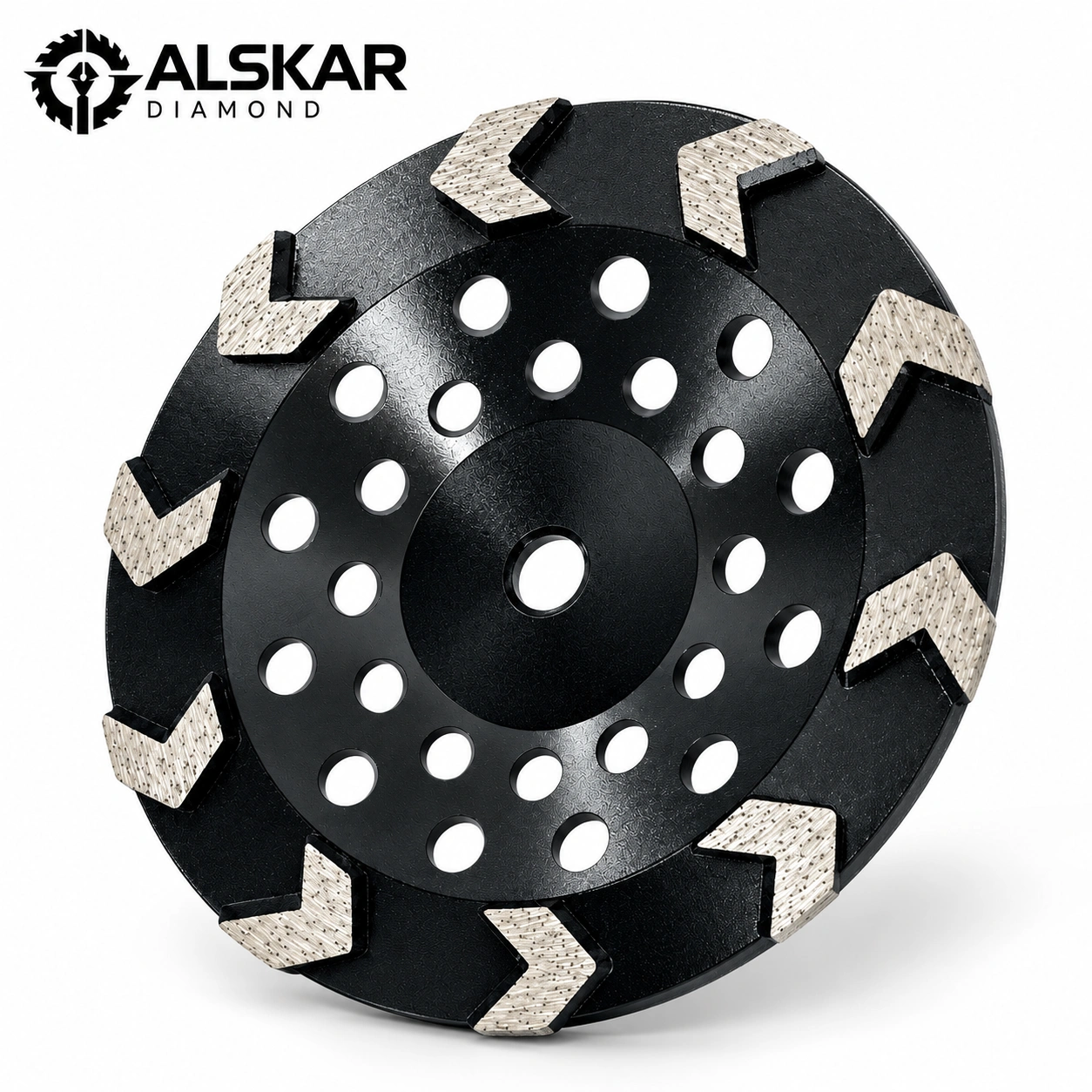

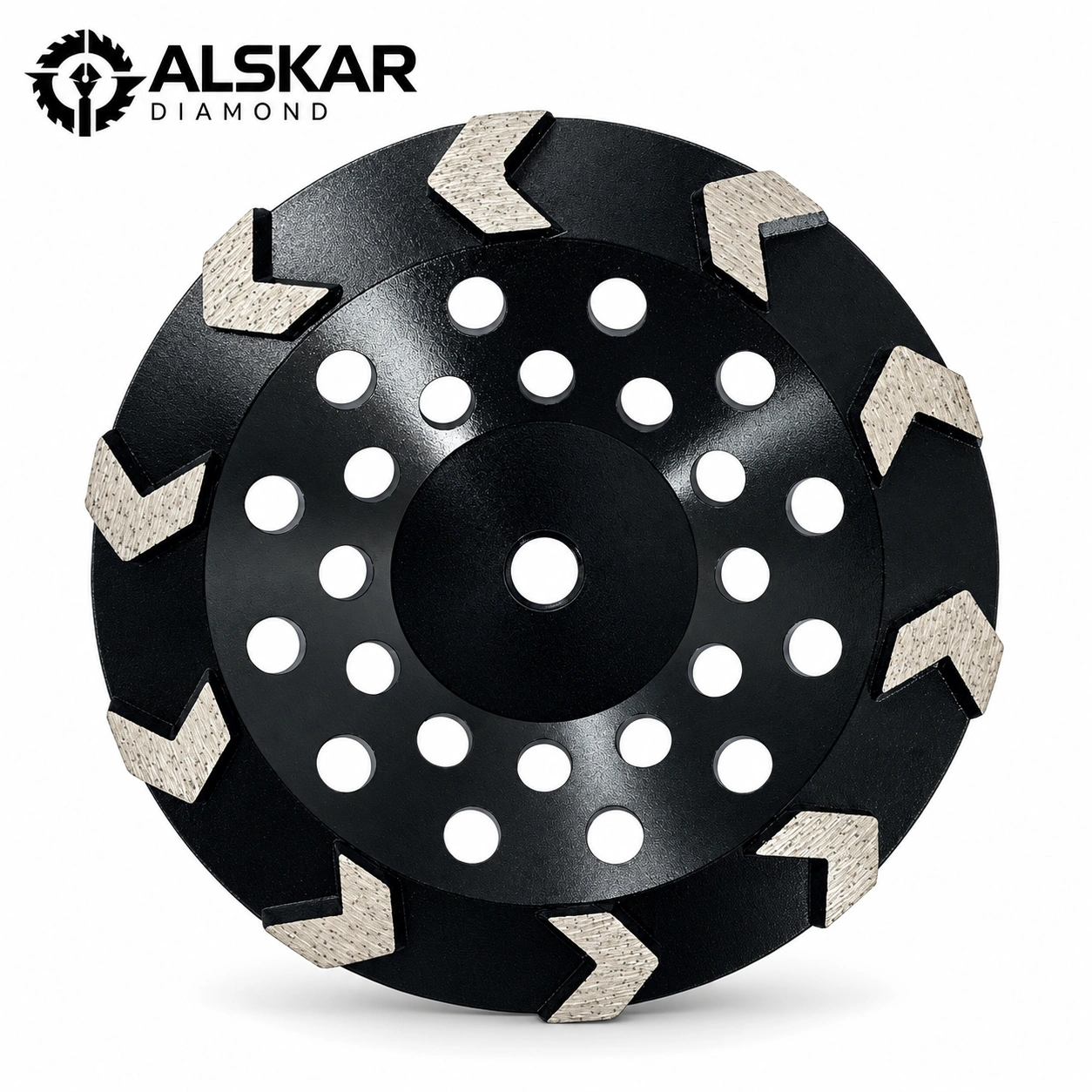

Arrow Segment Diamond Cup Wheel for Concrete & Coating Removal

1. Arrow Segment Diamond Cup Wheel – Aggressive Concrete Grinding & Surface Preparation

The ALSKAR DIAMOND Arrow Segment Diamond Cup Wheel is designed for construction contractors, concrete surface preparation specialists, and masonry professionals who require fast, effective material removal.

Featuring distinctive arrow-shaped diamond grinding segments, this cup wheel concentrates abrasive contact along the leading edges of the segments to support aggressive grinding and efficient stock removal.

The arrow segment geometry is particularly suitable for removing concrete surface irregularities, thin-set mortar, cementitious residue, and selected hard surface coatings.

Unlike densely arranged turbo grinding wheels designed primarily for controlled surface refinement, the Arrow Segment series focuses on rapid surface preparation and material removal.

Available in 4″, 4.5″, 5″, and 7″ diameters, this series provides practical options for localized repairs, concrete edges, and larger surface preparation applications.

With both 5/8″-11 threaded and 7/8″-5/8″ non-threaded arbor configurations, the ALSKAR Arrow Segment Cup Wheel can be selected for a range of compatible angle grinders.

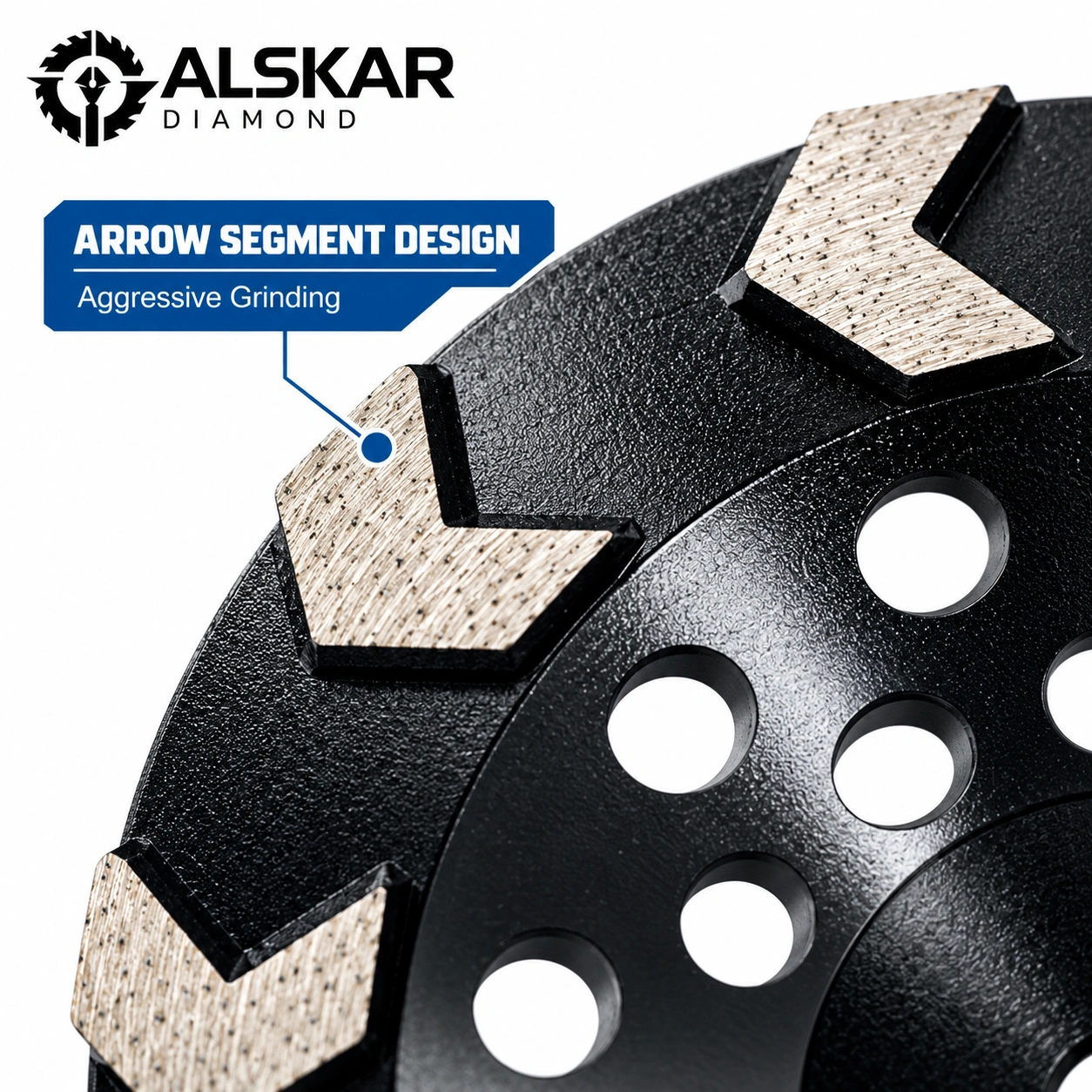

2. Arrow-Shaped Diamond Segments for Fast Material Removal

The distinctive feature of the ALSKAR Arrow Segment Diamond Grinding Cup Wheel is its angular, arrow-shaped diamond segment geometry.

Each arrow segment forms a defined leading edge intended to concentrate grinding pressure on the working surface.

Aggressive Grinding Action

The arrow-shaped geometry is designed to engage concrete and cement-based materials efficiently, helping remove uneven surface layers and localized high spots.

Efficient Surface Preparation

The wheel is particularly useful during the early stages of surface preparation, when removing unwanted surface material is more important than achieving a fine decorative finish.

Open Segment Configuration

Wide spaces between adjacent arrow segments provide pathways for grinding debris to escape from the working area.

This open configuration can be helpful when removing cementitious residues and suitable hard coating materials.

5 mm Metal-Bonded Diamond Segments

The wheel features metal-bonded diamond grinding segments with a 5 mm abrasive height.

Segment dimensions and quantities vary according to wheel diameter, providing size-specific configurations for different grinding applications.

Durable Steel Cup Construction

The steel cup body provides structural support for the grinding segments, while circular openings in the body allow airflow and debris movement.

Together, these design features make the ALSKAR Arrow Segment series a practical solution for demanding concrete surface preparation tasks.

3. Applications & Recommended Materials

The ALSKAR Arrow Segment Diamond Grinding Cup Wheel is intended for aggressive grinding and surface preparation of concrete and cement-based materials.

Concrete Surface Grinding

Designed for removing concrete high spots, uneven surface layers, minor surface defects, and excess cementitious material.

Typical applications include:

• Concrete floor preparation
• Surface leveling
• Raised-area removal
• Concrete repair
• Rough grinding before further finishing

Thin-Set Mortar Removal

Arrow-shaped diamond segments are particularly useful for removing hardened thin-set mortar residue left after tile removal.

The open segment arrangement helps maintain grinding access to uneven cementitious surfaces.

Mortar & Masonry Grinding

Suitable for appropriate rough grinding and preparation of cement mortar, concrete blocks, brick, and masonry surfaces.

Surface Coating Removal

The aggressive arrow design may be used to remove suitable thin, hard coatings and mineral-based residues from concrete.

For thick epoxy, soft adhesives, rubbery coatings, or heavy membrane removal, a dedicated PCD coating removal wheel may provide better performance and reduced clogging.

Concrete Surface Preparation Before Coatings

Useful for initial concrete surface preparation before applying compatible coatings, overlays, or repair materials.

The finished concrete surface profile must be checked against the coating or overlay manufacturer’s requirements.

Recommended Materials:

• Cured Concrete
• Cement Mortar
• Thin-Set Mortar
• Concrete Blocks (CMU)
• Brick & Masonry
• Compatible Hard Coatings
• Suitable Natural Stone for Rough Grinding

Typical Applications:

• Aggressive Concrete Grinding
• Fast Stock Removal
• Thin-Set Removal
• Surface Leveling
• Masonry Restoration
• Concrete Edge Grinding
• Surface Preparation
• Cementitious Residue Removal

Important: This wheel is intended primarily for material removal and rough surface preparation. It is not designed for final polishing or producing a decorative polished concrete finish.

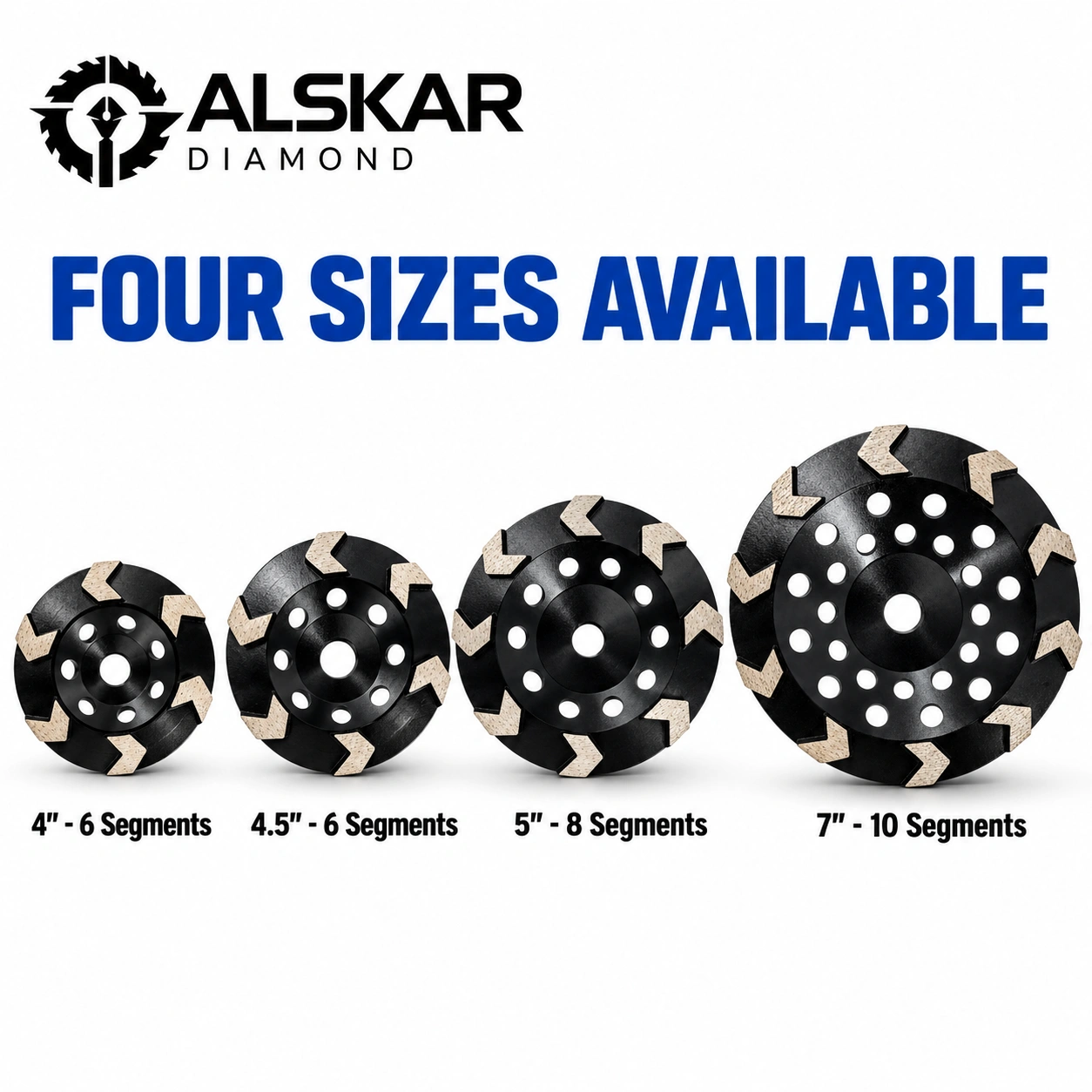

4. Four Sizes for Professional Concrete Grinding

The ALSKAR Arrow Segment Diamond Grinding Cup Wheel series is available in four diameters to accommodate different working areas and grinder configurations.

4-Inch – 6 Arrow Segments

The compact 4-inch cup wheel is suited to localized grinding, smaller concrete repairs, masonry edges, and applications where maneuverability is important.

Segment dimensions: 20 × 17 × 5 mm.

4.5-Inch – 6 Arrow Segments

A versatile option for general concrete grinding, thin-set mortar removal, and renovation work using compatible 4.5-inch angle grinders.

Segment dimensions: 20 × 17 × 5 mm.

5-Inch – 8 Arrow Segments

Offers greater grinding coverage for medium-sized concrete preparation projects.

The eight arrow segments provide a working configuration for aggressive material removal and surface leveling.

Segment dimensions: 20 × 17 × 5 mm.

7-Inch – 10 Arrow Segments

Designed for larger concrete grinding and surface preparation areas where increased working coverage is required.

The 7-inch model features ten arrow-shaped diamond segments measuring 22 × 17 × 5 mm.

This configuration makes it particularly useful for broader grinding passes during concrete floor preparation and renovation work.

Selection Tip: Choose the cup wheel diameter according to the grinder’s approved wheel capacity, spindle type, guard requirements, and the application. Larger wheels should only be used with equipment specifically approved for their size and operating load.

5. Two Arbor Options for Compatible Angle Grinders

The ALSKAR Arrow Segment Diamond Grinding Cup Wheel is available in two mounting configurations.

5/8″-11 Threaded Hub

Designed for compatible angle grinders equipped with a 5/8″-11 threaded spindle.

The threaded mounting system provides a direct mounting option where approved by the grinder and wheel manufacturers.

7/8″-5/8″ Non-Threaded Arbor

Designed for compatible angle grinders using a non-threaded mounting arrangement with the appropriate bore, reducing ring when required, and approved mounting flanges.

Always verify the supplied arbor configuration and accessory dimensions before installation.

Important Grinder Compatibility Guidelines

• Match the wheel diameter to the grinder’s approved capacity.
• Verify that the arbor fits the grinder spindle and mounting hardware.
• Use the correct grinding wheel guard.
• Confirm that grinder speed does not exceed the wheel’s rated maximum RPM.
• Inspect the wheel for damage before operation.
• Follow the grinder and accessory manufacturers’ mounting instructions.

The correct arbor and wheel diameter are essential for safe operation and effective grinding performance.

6. Professional Grinding Performance & Safe Operation

The ALSKAR Arrow Segment Cup Wheel is intended for demanding grinding applications where concrete material must be removed efficiently before additional surface treatment.

Surface Preparation

The arrow-shaped grinding segments help remove uneven areas, hardened mortar, and selected residues from concrete surfaces.

Grinding Debris Clearance

The open spaces between arrow segments allow grinding debris to move away from the work area, helping maintain abrasive contact.

Dust Control

Grinding concrete and masonry can generate hazardous respirable crystalline silica dust.

Use appropriate dust shrouds, extraction systems, and respiratory protection in accordance with applicable regulations.

Wet & Dry Operating Conditions

Follow the specific wheel’s approved operating method.

For dry grinding, use compatible dust-control equipment. Wet grinding may only be performed when the wheel, grinder, and water-delivery equipment are approved for wet operation.

Safe Working Practices

Always use the proper guard, approved mounting hardware, and suitable personal protective equipment.

Never exceed the maximum rated RPM marked on the grinding wheel.

Stop immediately if the wheel becomes damaged or exhibits unusual vibration.

For coating removal applications, select the wheel based on coating thickness, hardness, and the required concrete surface profile.

7. Why Choose ALSKAR DIAMOND?

ALSKAR DIAMOND supplies diamond tools for concrete cutting, core drilling, surface grinding, masonry preparation, and stone processing.

The ALSKAR Arrow Segment Diamond Grinding Cup Wheel series provides a focused solution for professionals working on concrete grinding and surface preparation projects.

Product Advantages:

• Aggressive arrow-shaped diamond grinding design
• Defined 5 mm metal-bonded diamond segment height
• Open segment configuration for debris clearance
• Four available diameters from 4″ to 7″
• Two arbor configurations for compatible grinders
• Practical applications in concrete, mortar, and masonry work
• Suitable for individual purchases and wholesale inquiries

Whether preparing concrete for renovation, removing hardened thin-set mortar, or leveling uneven cement-based surfaces, choose the ALSKAR DIAMOND grinding tool designed for your application.
